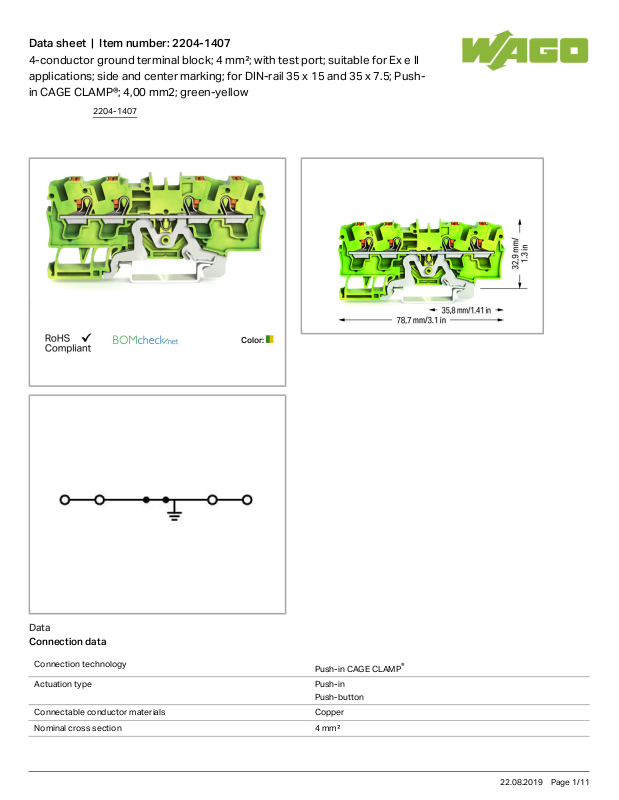

Wago 2204-1407 Data Sheet

Data sheet | Item number:2204-1407

4-conductor ground terminal block; 4 mm²; with test port; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push­in CAGE CLAMP®; 4,00 mm2; green-yellow

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 4mm²

2204-1407

22.08.2019Page /1 11

Data sheet | Item number:2204-1407

Solid conductor 0.5 6mm²/ 20 10AWG

Solid conductor, push-in termination 1 6mm²/ 14 10AWG

Fine-stranded conductor 0.5 6mm²/ 20 10AWG

Strip length 11 13mm/ 0.43 0.51inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 78.7mm/ 3.098inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.162 MJ

Weight 16.084g

Commercial data

Country of origin DE

GTIN 4055143711333

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 4788360975

AEx

Underwriters Laboratories Inc.

UL 60079 4788360975

2204-1407

22.08.2019Page /2 11

Data sheet | Item number:2204-1407

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1006
U

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1006
U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7666

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102877

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7666

CSA

DEKRA Certification B.V.

C22.2 70175102

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102877

2204-1407

22.08.2019Page /3 11

Data sheet | Item number:2204-1407

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788360975

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788360975

Compatible products

End plate

Item no.: 2004-1491

End and intermediate plate; 1 mm thick; gray

2004-1491

Item no.: 2004-1492

End and intermediate plate; 1 mm thick; orange

2004-1492

2204-1407

22.08.2019Page /4 11
