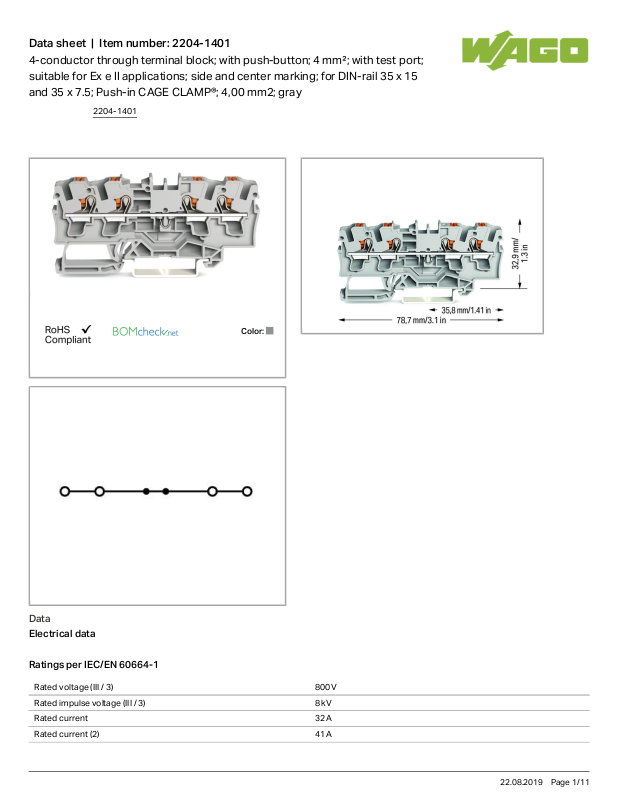

Wago 2204-1401 Data Sheet

Data sheet | Item number:2204-1401

4-conductor through terminal block; with push-button; 4 mm²; with test port;
suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15
and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Rated current (2) 41 A

2204-1401

22.08.2019Page /1 11

Data sheet | Item number:2204-1401



Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 30 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 4mm²

Solid conductor 0.5 6mm²/ 20 10AWG

Solid conductor, push-in termination 1 6mm²/ 14 10AWG

Fine-stranded conductor 0.5 6mm²/ 20 10AWG

Strip length 11 13mm/ 0.43 0.51inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 78.7mm/ 3.098inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.197 MJ

Weight 11.294g

2204-1401

22.08.2019Page /2 11

Data sheet | Item number:2204-1401

Commercial data

Country of origin DE

GTIN 4055143711371

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 4788360975

AEx

Underwriters Laboratories Inc.

UL 60079 4788360975

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1006
U

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1006
U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7666

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102877

2204-1401

22.08.2019Page /3 11

Data sheet | Item number:2204-1401

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7666

CSA

DEKRA Certification B.V.

C22.2 70175102

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102877

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788360975

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788360975

2204-1401
