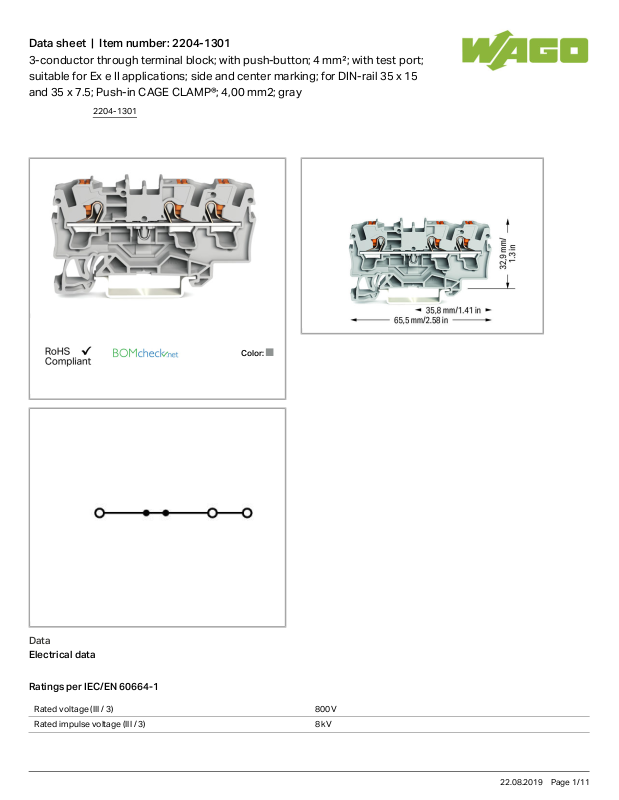

Data sheet | Item number:2204-1301
3-conductor through terminal block; with push-button; 4 mm²; with test port;
suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15
and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm2; gray
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
2204-1301
22.08.2019Page /1 11
Data sheet | Item number:2204-1301
Rated current 32 A
Rated current (2) 41 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 30 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 30 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Push-button
Connectable conductor materials Copper
Nominal cross section 4mm²
Solid conductor 0.5 6mm²/ 20 10AWG
Solid conductor, push-in termination 1 6mm²/ 14 10AWG
Fine-stranded conductor 0.5 6mm²/ 20 10AWG
Strip length 11 13mm/ 0.43 0.51inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 65.5mm/ 2.579inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
2204-1301
22.08.2019Page /2 11
Data sheet | Item number:2204-1301
Fire load 0.164 MJ
Weight 9.161g
Commercial data
Country of origin DE
GTIN 4055143711432
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 4788360975
AEx
Underwriters Laboratories Inc.
UL 60079 4788360975
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1006
U
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1006
U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.00 13U
(Ex eb IIC
Gb and Ex
eb I Mb)
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7666
KEMA/KEUR
EN 60947 71-
2204-1301
22.08.2019Page /3 11
Data sheet | Item number:2204-1301
DEKRA Certification B.V. 102877
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7666
CSA
DEKRA Certification B.V.
C22.2 70175102
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102877
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1866350PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 4788360975
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
UL 1059 4788360975
2204-1301
22.08.2019Page /4 11
Data sheet | Item number:2204-1301
Underwriters Laboratories Inc.

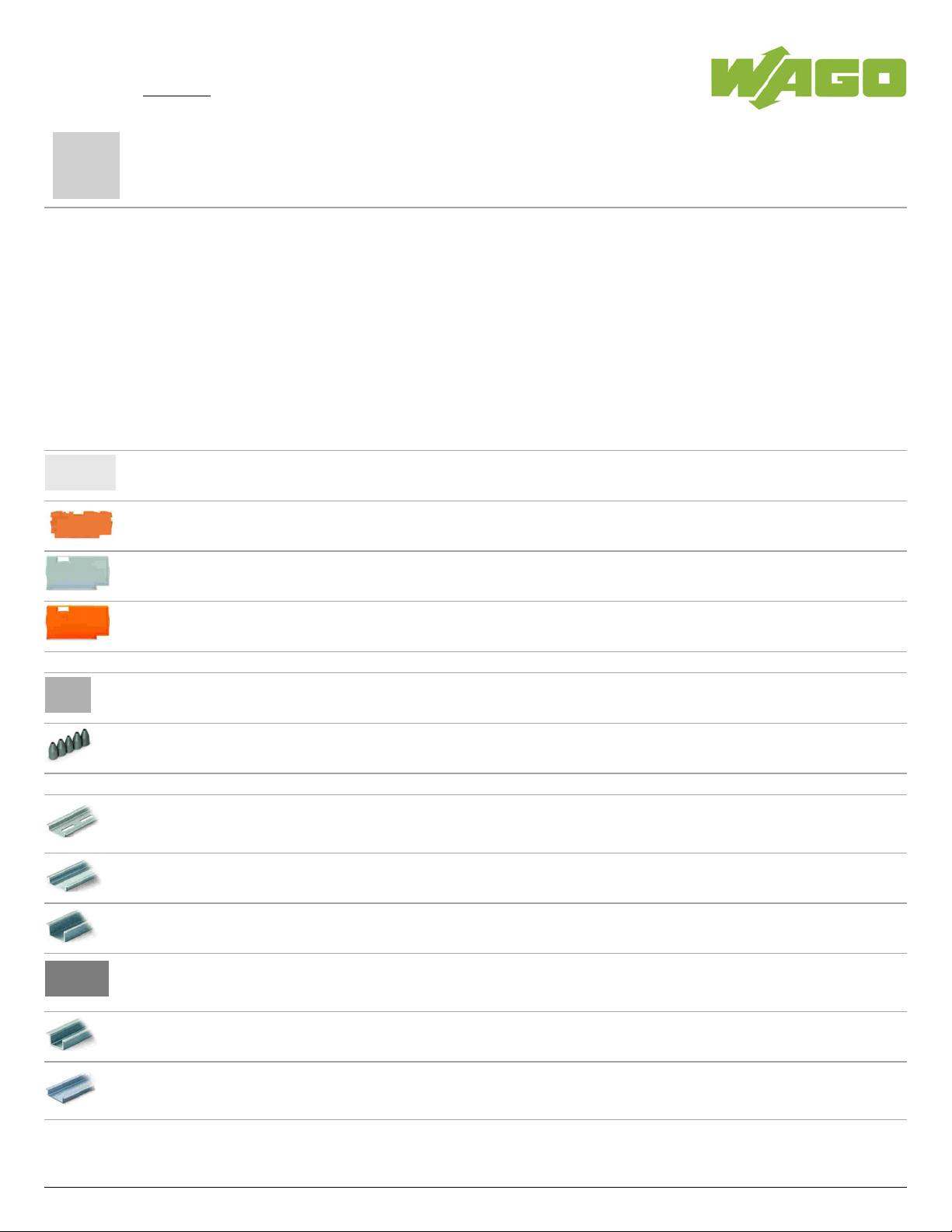

Compatible products
End plate
Item no.: 2004-1391
End and intermediate plate; 1 mm thick; gray
2004-1391
Item no.: 2004-1392
End and intermediate plate; 1 mm thick; orange
2004-1392
Item no.: 2004-1393
Separator plate; 2 mm thick; oversized; gray
2004-1393
Item no.: 2004-1394
Separator plate; 2 mm thick; oversized; orange
2004-1394
Insulation stop
Item no.: 2004-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
2004-171
Item no.: 2004-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip; dark gray
2004-172
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silvercolored
210-196
2204-1301
22.08.2019Page /5 11
Data sheet | Item number:2204-1301
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-135
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-135
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
2204-1301
22.08.2019Page /6 11
Data sheet | Item number:2204-1301
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
2204-1301
22.08.2019Page /7 11
Data sheet | Item number:2204-1301
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; white
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
2204-1301
22.08.2019Page /8 11
Data sheet | Item number:2204-1301
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024

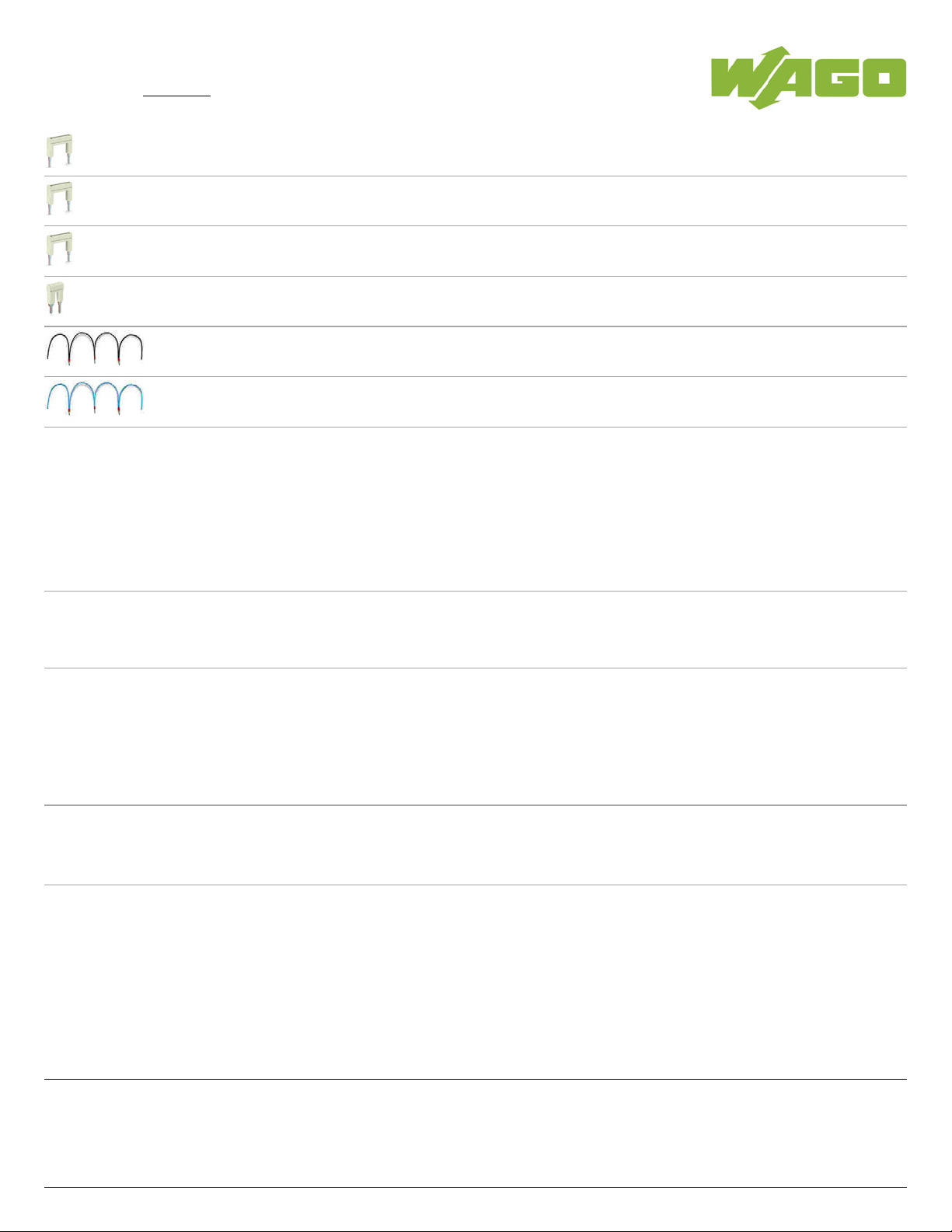

check
Item no.: 2004-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 4,00 mm2; gray
2004-511
Item no.: 2004-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2004-549
Item no.: 2004-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 4,00 mm2; gray
2004-552
Item no.: 2004-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 4,00 mm2; gray
2004-553
Item no.: 2004-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 4,00 mm2; gray
2004-554
Item no.: 2004-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 4,00 mm2; gray
2004-555
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
tools
Item no.: 210-658
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft; angled; short
210-658
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
210-720
ferrule
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-264
2204-1301
22.08.2019Page /9 11
Data sheet | Item number:2204-1301
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue
216-266
Item no.: 216-267
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-267
Jumper
Item no.: 2004-402
Push-in type jumper bar; insulated; 2-way; Nominal current 32 A; light gray
2004-402
Item no.: 2004-403
Push-in type jumper bar; insulated; 3-way; Nominal current 32 A; light gray
2004-403
Item no.: 2004-404
Push-in type jumper bar; insulated; 4-way; Nominal current 32 A; light gray
2004-404
Item no.: 2004-405
Push-in type jumper bar; insulated; 5-way; Nominal current 32 A; light gray
2004-405
Item no.: 2004-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2004-405
/011-000
Item no.: 2004-406
Push-in type jumper bar; insulated; 6-way; Nominal current 32 A; light gray
2004-406
Item no.: 2004-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2004-406
/020-000
Item no.: 2004-407
Push-in type jumper bar; insulated; 7-way; Nominal current 32 A; light gray
2004-407
Item no.: 2004-408
Push-in type jumper bar; insulated; 8-way; Nominal current 32 A; light gray
2004-408
Item no.: 2004-409
Push-in type jumper bar; insulated; 9-way; Nominal current 32 A; light gray
2004-409
Item no.: 2004-410
Push-in type jumper bar; insulated; 10-way; Nominal current 32 A; light gray
2004-410
Item no.: 2004-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 32 A; light gray
2004-433
Item no.: 2004-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 32 A; light gray
2004-434
Item no.: 2004-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 32 A; light gray
2004-435
Item no.: 2004-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 32 A; light gray
2004-436
Item no.: 2004-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 32 A; light gray
2004-437
Item no.: 2004-438
2204-1301
22.08.2019Page /10 11
Data sheet | Item number:2204-1301
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 32 A; light gray 2004-438
Item no.: 2004-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 32 A; light gray
2004-439
Item no.: 2004-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 32 A; light gray
2004-440
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A; light gray
2006-499
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Downloads
Documentation
Bid Text
2204-1301 docx
15.2 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2204-1301 URL Download
EPLAN
EPLAN Data Portal Download
2204-1301
Subject to changes.
22.08.2019Page /11 11
Loading...
