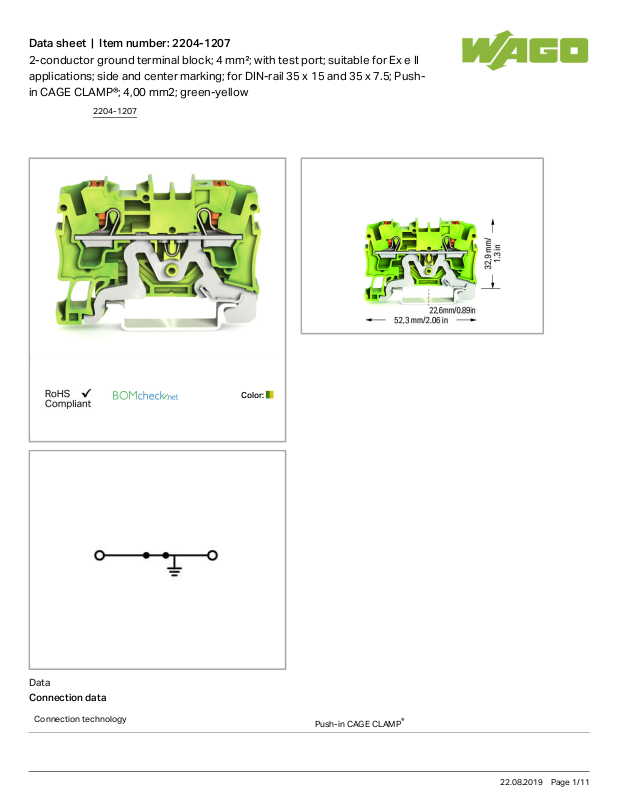

Data sheet | Item number: 2204-1207
2-conductor ground terminal block; 4 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®; 4,00 mm2; green-yellow
2204-1207
Color:
Data
Connection data
Connection technology |
Push-in CAGE CLAMP® |
22.08.2019 Page 1/11
Data sheet | Item number: 2204-1207
2204-1207 |
|
|
|
Actuation type |
Push-in |
|
|
|
Push-button |
|
|
Connectable conductor materials |
Copper |
|
|
Nominal cross section |
4 mm² |
|
|
Solid conductor |
0.5 |
6 mm² / 20 |
10 AWG |
Solid conductor, push-in termination |
1 |
6 mm² / 14 10 AWG |
|
Fine-stranded conductor |
0.5 |
6 mm² / 20 |
10 AWG |
Strip length |
11 |
13 mm / 0.43 |
0.51 inch |
Total number of connection points |
2 |
|
|
Total number of potentials |
1 |
|
|
Number of levels |
1 |
|
|
Type of wiring |
Front-entry wiring |
|
|
Number of jumper slots |
2 |
|
|
Geometrical Data |
|
|
|
Width |
6.2 mm / 0.244 inch |
|
|
Height from upper-edge of DIN-35 rail |
32.9 mm / 1.295 inch |
||
Depth |
52.3 mm / 2.059 inch |
||
Mechanical data |
|
|
|
Design |
horizontal |
|
|
Type of mounting |
DIN-35 rail |
|
|
Marking level |
Center/side marking |
||
Material Data |
|
|
|
Color |
green-yellow |
|
|
Insulating material |
Polyamide 66 (PA 66) |
||
Fire load |
0.108MJ |
|
|
Weight |
12.259g |
|
|
Commercial data |
|
|
|
Country of origin |
DE |
|
|
GTIN |
4055143711456 |
|
|
Customs Tariff No. |
85369010000 |
|
Approvals / Certificates
Ex-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
AEx |
UL 60079 |
4788360975 |
|
|
Underwriters Laboratories Inc. |
|
|
22.08.2019 Page 2/11
Data sheet | Item number: 2204-1207
2204-1207
|
AEx |
UL 60079 |
4788360975 |
|
|
Underwriters Laboratories Inc. |
|
|
|
|
ATEX |
IEC 60079-0 |
PTB 18 |
|
|
Physikalisch Technische Bundesanstalt |
|
ATEX 1006 |
|
|
|
|
U |
|
|
ATEX |
IEC 60079-0 |
PTB 18 |
|
|
Physikalisch Technische Bundesanstalt |
|
ATEX 1006 |
|
|
|
|
U |
|
|
IECEx |
IEC 60079 |
IECEx PTB |
|
|
Physikalisch Technische Bundesanstalt |
|
18.00 13U |
|
|
|
|
(Ex eb IIC |
|
|
|
|
Gb and Ex |
|
|
|
|
eb I Mb) |
|
|
IECEx |
IEC 60079 |
IECEx PTB |
|
|
Physikalisch Technische Bundesanstalt |
|
18.00 13U |
|
|
|
|
(Ex eb IIC |
|
|
|
|
Gb and Ex |
|
|
|
|
eb I Mb) |
|
Radio-Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
CCA |
EN 60947 |
NTR NL |
|
|
DEKRA Certification B.V. |
|
7666 |
|
|
KEMA/KEUR |
EN 60947 |
71- |
|
|
DEKRA Certification B.V. |
|
102877 |
|
Country specific Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
CCA |
EN 60947 |
NTR NL |
|
|
DEKRA Certification B.V. |
|
7666 |
|
|
CSA |
C22.2 |
70175102 |
|
|
DEKRA Certification B.V. |
|
|
22.08.2019 Page 3/11
Data sheet | Item number: 2204-1207
|
2204-1207 |
|
|
|
|
KEMA/KEUR |
EN 60947 |
71- |
|
|
DEKRA Certification B.V. |
|
102877 |
|
Ship Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
ABS |
- |
19- |
|
|
American Bureau of Shipping |
|
HG1866350- |
|
|
|
|
PDA |
|
|
DNV GL |
- |
TAE00003JT |
|
|
Det Norske Veritas, Germanischer Lloyd |
|
|
|
|
LR |
- |
19/20050 |
|
|
Lloyds Register |
|
|
|
Other Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
cURus |
UL 1059 |
4788360975 |
|
|
Underwriters Laboratories Inc. |
|
|
|
UL-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
cURus |
UL 1059 |
4788360975 |
|
|
Underwriters Laboratories Inc. |
|
|
Compatible products
ferrule
Item no.: 216-262
22.08.2019 Page 4/11
