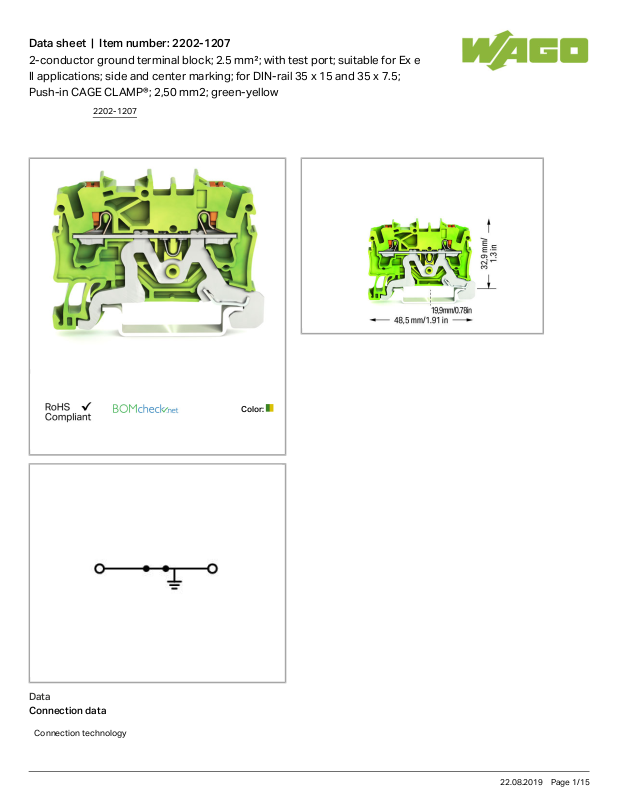

Wago 2202-1207 Data Sheet

Data sheet | Item number:2202-1207

2-conductor ground terminal block; 2.5 mm²; with test port; suitable for Ex e
II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5;
Push-in CAGE CLAMP®; 2,50 mm2; green-yellow

Color:

Data

Connection data

Connection technology

2202-1207

22.08.2019Page /1 15

Data sheet | Item number:2202-1207

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 50.8mm/ 2inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.107 MJ

Weight 8.242g

Commercial data

Country of origin DE

GTIN 4055143713580

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

2202-1207

22.08.2019Page /2 15

Data sheet | Item number:2202-1207

Logo

Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 20190704-

E185892

AEx

Underwriters Laboratories Inc.

UL 60079 4788241183

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7665

CSA

DEKRA Certification B.V.

C22.2 70173745

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102876

2202-1207

22.08.2019Page /3 15

Data sheet | Item number:2202-1207

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7665

CSA

DEKRA Certification B.V.

C22.2 70173745

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102876

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788227146

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788227146

2202-1207

22.08.2019Page /4 15

Data sheet | Item number:2202-1207

Compatible products

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-243

Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black

216-244

Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue

216-246

Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-262

Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-263

Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black

216-264

Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue

216-266

Insulation stop

Item no.: 2002-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray

2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip; dark gray

2002-172

check

Item no.: 2002-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 2,50 mm2; gray

2002-511
