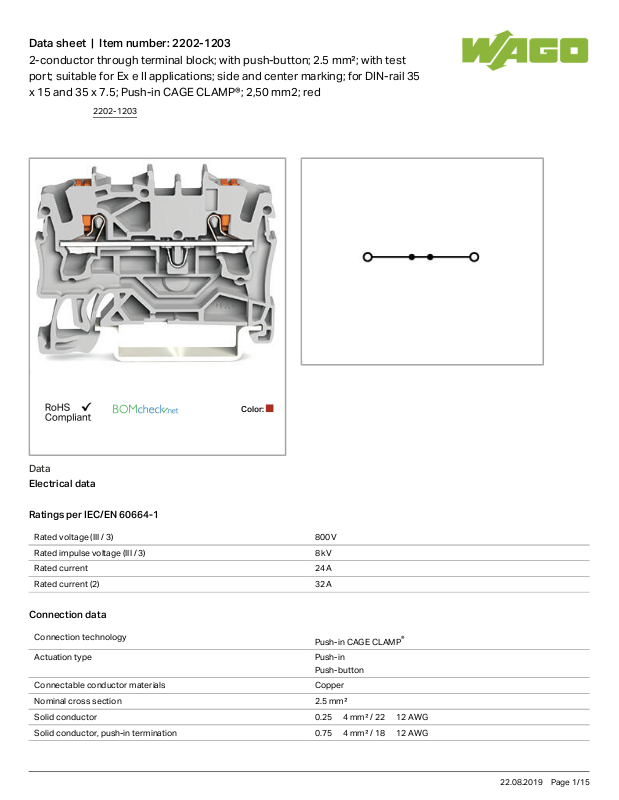

Data sheet | Item number:2202-1203
2-conductor through terminal block; with push-button; 2.5 mm²; with test
port; suitable for Ex e II applications; side and center marking; for DIN-rail 35
x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm2; red
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 32 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Push-button
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 4mm²/ 22 12AWG
Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG
2202-1203
22.08.2019Page /1 15
Page 2
Data sheet | Item number:2202-1203
Fine-stranded conductor 0.25 4mm²/ 22 12AWG
Strip length 10 12mm/ 0.39 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color red
Insulating material Polyamide 66 (PA 66)
Fire load 0.113 MJ
Weight 5.372g
Commercial data
Country of origin DE
GTIN 4055143822091
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 20190704-
E185892
AEx
Underwriters Laboratories Inc.
UL 60079 4788241183
2202-1203
22.08.2019Page /2 15
Page 3
Data sheet | Item number:2202-1203
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7665
CSA
DEKRA Certification B.V.
C22.2 70173745
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102876
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7665
2202-1203
22.08.2019Page /3 15
Page 4
Data sheet | Item number:2202-1203
CSA
DEKRA Certification B.V.
C22.2 70173745
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102876
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1866350PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 4788227146
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 4788227146
