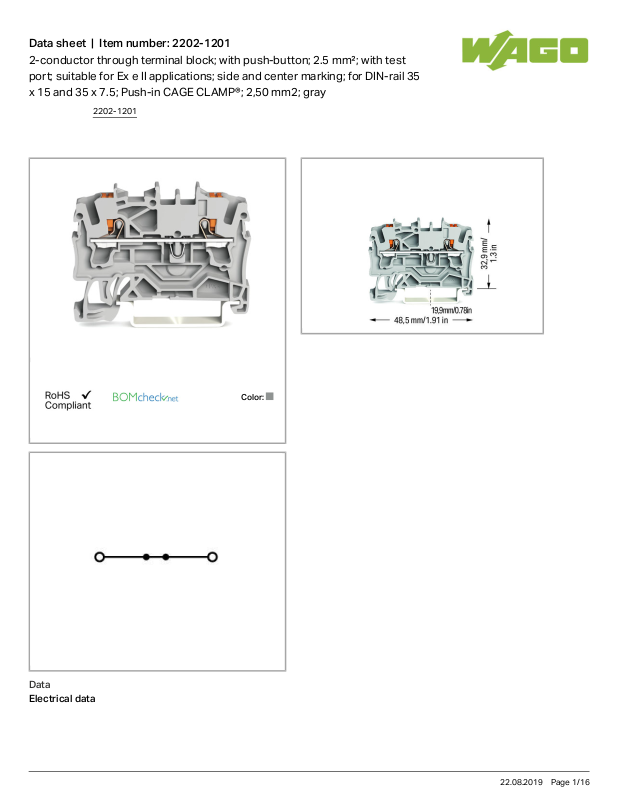

Wago 2202-1201 Data Sheet

Data sheet | Item number:2202-1201

2-conductor through terminal block; with push-button; 2.5 mm²; with test
port; suitable for Ex e II applications; side and center marking; for DIN-rail 35
x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm2; gray

Color:

Data

Electrical data

2202-1201

22.08.2019Page /1 16

Data sheet | Item number:2202-1201

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Rated current (2) 32 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 48.5mm/ 1.909inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

2202-1201

22.08.2019Page /2 16

Data sheet | Item number:2202-1201

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.113 MJ

Weight 5.372g

Commercial data

Country of origin DE

GTIN 4055143713542

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 20190704-

E185892

AEx

Underwriters Laboratories Inc.

UL 60079 4788241183

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1005
U (II 2 G Ex
eb IIC Gb
bzw. I M 2
Ex eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0012U
(Ex eb IIC
Gb and EX
eb I Mb)

2202-1201

22.08.2019Page /3 16

Data sheet | Item number:2202-1201

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7665

CSA

DEKRA Certification B.V.

C22.2 70173745

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102876

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7665

CSA

DEKRA Certification B.V.

C22.2 70173745

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102876

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

2202-1201

22.08.2019Page /4 16

Data sheet | Item number:2202-1201

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788227146

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788227146
