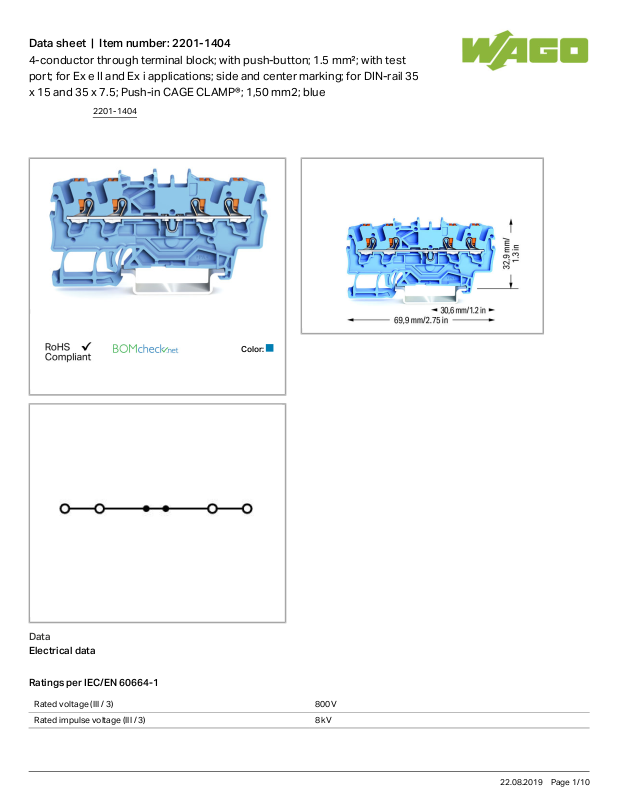

Wago 2201-1404 Data Sheet

Data sheet | Item number:2201-1404

4-conductor through terminal block; with push-button; 1.5 mm²; with test
port; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35
x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm2; blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

2201-1404

22.08.2019Page /1 10

Data sheet | Item number:2201-1404

Rated current 18 A

Rated current (2) 24 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 1.5mm²

Solid conductor 0.25 2.5mm²/ 22 14AWG

Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG

Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG

Strip length 9 11mm/ 0.35 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 69.9mm/ 2.752inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

2201-1404

22.08.2019Page /2 10

Data sheet | Item number:2201-1404

Fire load 0.124 MJ

Weight 6.101g

Commercial data

Country of origin DE

GTIN 4055143696876

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec. 25

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7664

2201-1404

22.08.2019Page /3 10

Data sheet | Item number:2201-1404

CSA

DEKRA Certification B.V.

C22.2 70173738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102875

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7664

CSA

DEKRA Certification B.V.

C22.2 70173738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102875

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788308064

2201-1404

22.08.2019Page /4 10

Data sheet | Item number:2201-1404

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788308064
