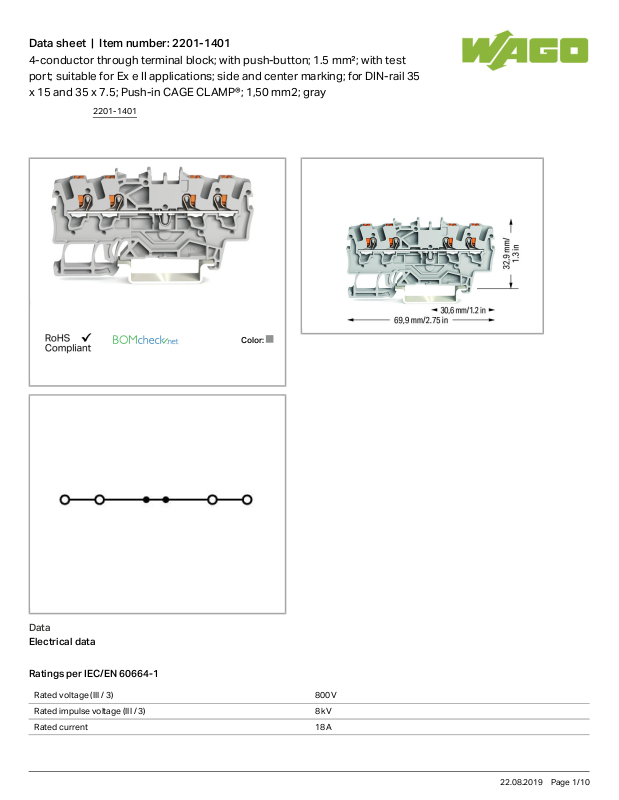

Data sheet | Item number:2201-1401

4-conductor through terminal block; with push-button; 1.5 mm²; with test
port; suitable for Ex e II applications; side and center marking; for DIN-rail 35
x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 18 A

2201-1401

22.08.2019Page /1 10

Data sheet | Item number:2201-1401

Rated current (2) 24 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 1.5mm²

Solid conductor 0.25 2.5mm²/ 22 14AWG

Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG

Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG

Strip length 9 11mm/ 0.35 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 69.9mm/ 2.752inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.124 MJ

2201-1401

22.08.2019Page /2 10

Data sheet | Item number:2201-1401

Weight 6.101g

Commercial data

Country of origin DE

GTIN 4055143696852

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec. 25

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7664

2201-1401

22.08.2019Page /3 10

Data sheet | Item number:2201-1401

CSA

DEKRA Certification B.V.

C22.2 70173738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102875

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7664

CSA

DEKRA Certification B.V.

C22.2 70173738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102875

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788308064

2201-1401

22.08.2019Page /4 10

Data sheet | Item number:2201-1401

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788308064

Compatible products

tools

Item no.: 210-647

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-647

Item no.: 210-648

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-719

Jumper

Item no.: 2001-402

Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray

2001-402

Item no.: 2001-403

Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray

2001-403

Item no.: 2001-404

Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray

2001-404

Item no.: 2001-405

Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray

2001-405

Item no.: 2001-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray

2001-405

/011-000

Item no.: 2001-406

Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray

2001-406

Item no.: 2001-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray

2001-406

/020-000

2201-1401

22.08.2019Page /5 10

Data sheet | Item number:2201-1401

Item no.: 2001-407

Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray

2001-407

Item no.: 2001-408

Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray

2001-408

Item no.: 2001-409

Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray

2001-409

Item no.: 2001-410

Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray

2001-410

Item no.: 2001-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray

2001-433

Item no.: 2001-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray

2001-434

Item no.: 2001-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray

2001-435

Item no.: 2001-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A; light gray

2001-436

Item no.: 2001-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A; light gray

2001-437

Item no.: 2001-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A; light gray

2001-438

Item no.: 2001-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A; light gray

2001-439

Item no.: 2001-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray

2001-440

Item no.: 2006-499

Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A; light gray

2006-499

Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black

2009-412

Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black

2009-414

Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; red

2009-414

/000-005

Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; blue

2009-414

/000-006

Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black

2009-416

Item no.: 210-103

Wire commoning chain; insulated; 50 connections; black

210-103

2201-1401

22.08.2019Page /6 10

Data sheet | Item number:2201-1401

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

Insulation stop

Item no.: 2001-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray

2001-171

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored

210-198

End plate

Item no.: 2002-1491

End and intermediate plate; 0.8 mm thick; gray

2002-1491

Item no.: 2002-1492

End and intermediate plate; 0.8 mm thick; orange

2002-1492

Item no.: 2002-1493

Separator plate; 2 mm thick; oversized; gray

2002-1493

Item no.: 2002-1494

Separator plate; 2 mm thick; oversized; orange

2002-1494

plug

Item no.: 2002-880

Empty component plug housing; 10.4 mm wide; 2-pole; Type 4; gray

2002-880

check

Item no.: 2001-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 1,50 mm2; gray

2001-511

Item no.: 2001-549

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

2001-549

2201-1401

22.08.2019Page /7 10

Data sheet | Item number:2201-1401

Item no.: 2001-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,50 mm2; gray

2001-552

Item no.: 2001-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,50 mm2; gray

2001-553

Item no.: 2001-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,50 mm2; gray

2001-554

Item no.: 2001-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,50 mm2; gray

2001-555

Item no.: 2001-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,50 mm2; gray

2001-556

Item no.: 2001-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,50 mm2; gray

2001-557

Item no.: 2001-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,50 mm2; gray

2001-558

Item no.: 2001-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,50 mm2; gray

2001-559

Item no.: 2001-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,50 mm2; gray

2001-560

Item no.: 2009-174

Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray

2009-174

Item no.: 2009-182

Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray

2009-182

General accessories

Item no.: 2002-880/1000-411

Component plug; 2-pole; with diode 1N4007; 10.4 mm wide; Operating temperature 85°C max.; gray

2002-880

/1000-411

Item no.: 2002-880/1000-541

Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.; gray

2002-880

/1000-541

Item no.: 2002-880/1000-542

LED module; with red LED; 10.4 mm wide; 30 - 65 V; Operating temperature 85°C max.

2002-880

/1000-542

Item no.: 2002-880/1000-836

Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.; gray

2002-880

/1000-836

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-242

Item no.: 216-243

2201-1401

22.08.2019Page /8 10

Data sheet | Item number:2201-1401

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-243

Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black

216-244

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type; white

2009-110

Item no.: 2009-114

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white

2009-114

Item no.: 2009-114/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow

2009-114

/000-002

Item no.: 2009-114/000-005

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red

2009-114

/000-005

Item no.: 2009-114/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue

2009-114

/000-006

Item no.: 2009-114/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray

2009-114

/000-007

Item no.: 2009-114/000-012

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange

2009-114

/000-012

Item no.: 2009-114/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green

2009-114

/000-023

Item no.: 2009-114/000-024

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet

2009-114

/000-024

Item no.: 793-4501

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; white

793-4501

Item no.: 793-4501/000-002

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; yellow

793-4501

/000-002

Item no.: 793-4501/000-005

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; red

793-4501

/000-005

Item no.: 793-4501/000-006

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue

793-4501

/000-006

2201-1401

22.08.2019Page /9 10

Data sheet | Item number:2201-1401

Item no.: 793-4501/000-007

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray

793-4501

/000-007

Item no.: 793-4501/000-012

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; orange

793-4501

/000-012

Item no.: 793-4501/000-017

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; light green

793-4501

/000-017

Item no.: 793-4501/000-023

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green

793-4501

/000-023

Item no.: 793-4501/000-024

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; violet

793-4501

/000-024

Downloads

Documentation

Bid Text

2201-1401 docx

15.2 kB

Download

Additional Information

Technical explanations Apr 3, 2019 pdf

2.1 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 2201-1401 URL Download

EPLAN

EPLAN Data Portal Download



2201-1401

Subject to changes.

22.08.2019Page /10 10
