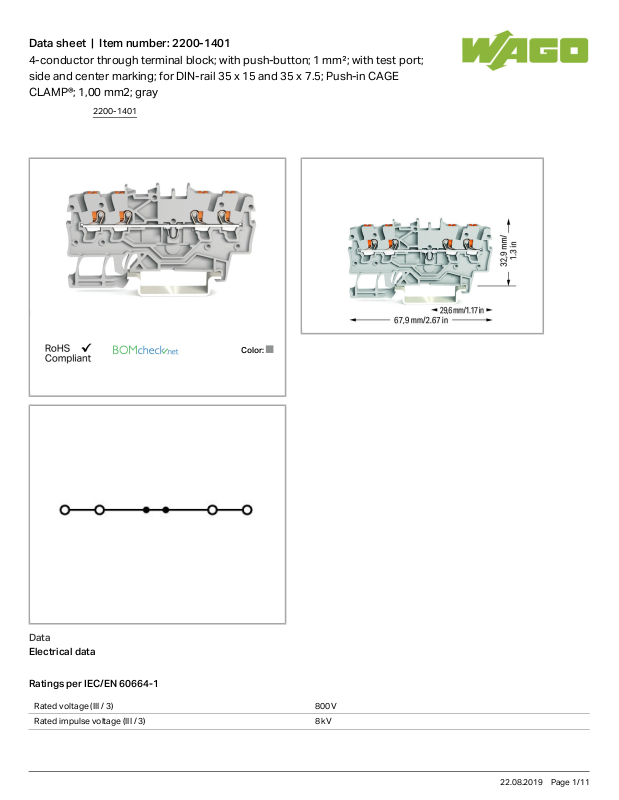

Wago 2200-1401 Data Sheet

Data sheet | Item number:2200-1401

4-conductor through terminal block; with push-button; 1 mm²; with test port;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®; 1,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

2200-1401

22.08.2019Page /1 11

Data sheet | Item number:2200-1401

Rated current 13.5 A

Rated current (2) 18 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 10 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 1.5mm²/ 24 16AWG

Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG

Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG

Strip length 9 11mm/ 0.35 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 3.5mm/ 0.138inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 67.9mm/ 2.673inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

2200-1401

22.08.2019Page /2 11

Data sheet | Item number:2200-1401

Weight 4.888g

Commercial data

Country of origin DE

GTIN 4055143691734

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 4788311594

AEx

Underwriters Laboratories Inc.

UL 60079 4788311594

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1003
U

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1003
U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0010U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0010U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7663

CSA C22.2 70173737

2200-1401

22.08.2019Page /3 11

Data sheet | Item number:2200-1401

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102874

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7663

CSA

DEKRA Certification B.V.

C22.2 70173737

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102874

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 19­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788311592

2200-1401

22.08.2019Page /4 11

Data sheet | Item number:2200-1401

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 4788311592

Compatible products

tools

Item no.: 210-647

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-647

Item no.: 210-648

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-719

End plate

Item no.: 2000-1491

End and intermediate plate; 0.7 mm thick; gray

2000-

1491

Item no.: 2000-1492

End and intermediate plate; 0.7 mm thick; orange

2000-

1492

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196

2200-1401

22.08.2019Page /5 11

Data sheet | Item number:2200-1401

Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715;
copper-colored

210-198

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type; white

2009-110

Item no.: 2009-113

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white

2009-113

Item no.: 2009-113/000-002

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow

2009-113

/000-002

Item no.: 2009-113/000-005

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red

2009-113

/000-005

Item no.: 2009-113/000-006

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue

2009-113

/000-006

Item no.: 2009-113/000-007

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray

2009-113

/000-007

Item no.: 2009-113/000-012

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange

2009-113

/000-012

Item no.: 2009-113/000-017

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green

2009-113

/000-017

Item no.: 2009-113/000-023

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green

2009-113

/000-023

Item no.: 2009-113/000-024

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet

2009-113

/000-024

Item no.: 793-3501

WMB marking card; as card; plain; snap-on type; white

793-3501

check

Item no.: 2000-510

TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm2; gray

2000-510

Item no.: 2000-511

TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole; 1,00 mm2; gray

2000-511

2200-1401

22.08.2019Page /6 11

Data sheet | Item number:2200-1401

Item no.: 2000-549

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

2000-549

Item no.: 2000-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,00 mm2; gray

2000-552

Item no.: 2000-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,00 mm2; gray

2000-553

Item no.: 2000-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,00 mm2; gray

2000-554

Item no.: 2000-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,00 mm2; gray

2000-555

Item no.: 2000-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,00 mm2; gray

2000-556

Item no.: 2000-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,00 mm2; gray

2000-557

Item no.: 2000-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,00 mm2; gray

2000-558

Item no.: 2000-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,00 mm2; gray

2000-559

Item no.: 2000-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,00 mm2; gray

2000-560

Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks;
gray

2009-174

Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray

2009-182

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable; red

210-136

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable; yellow

210-137

Jumper

Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; light gray

2000-402

Item no.: 2000-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; red

2000-402

/000-005

Item no.: 2000-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; blue

2000-402

/000-006

Item no.: 2000-402/000-018

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; yellow-green

2000-402

/000-018

2200-1401

22.08.2019Page /7 11

Data sheet | Item number:2200-1401

Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; light gray

2000-403

Item no.: 2000-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; red

2000-403

/000-005

Item no.: 2000-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; blue

2000-403

/000-006

Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; light gray

2000-404

Item no.: 2000-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; red

2000-404

/000-005

Item no.: 2000-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; blue

2000-404

/000-006

Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; light gray

2000-405

Item no.: 2000-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; red

2000-405

/000-005

Item no.: 2000-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; blue

2000-405

/000-006

Item no.: 2000-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray

2000-405

/011-000

Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; light gray

2000-406

Item no.: 2000-406/000-005

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; red

2000-406

/000-005

Item no.: 2000-406/000-006

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; blue

2000-406

/000-006

Item no.: 2000-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray

2000-406

/020-000

Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; light gray

2000-407

Item no.: 2000-407/000-005

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; red

2000-407

/000-005

2200-1401

22.08.2019Page /8 11

Data sheet | Item number:2200-1401

Item no.: 2000-407/000-006

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; blue

2000-407

/000-006

Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; light gray

2000-408

Item no.: 2000-408/000-005

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; red

2000-408

/000-005

Item no.: 2000-408/000-006

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; blue

2000-408

/000-006

Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; light gray

2000-409

Item no.: 2000-409/000-005

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; red

2000-409

/000-005

Item no.: 2000-409/000-006

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; blue

2000-409

/000-006

Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; light gray

2000-410

Item no.: 2000-410/000-005

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; red

2000-410

/000-005

Item no.: 2000-410/000-006

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; blue

2000-410

/000-006

Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; light gray

2000-433

Item no.: 2000-433/000-005

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; red

2000-433

/000-005

Item no.: 2000-433/000-006

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; blue

2000-433

/000-006

Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A; light gray

2000-434

Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A; light gray

2000-435

Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A; light gray

2000-436

Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A; light gray

2000-437

2200-1401

22.08.2019Page /9 11

Data sheet | Item number:2200-1401

Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A; light gray

2000-438

Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A; light gray

2000-439

Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A; light gray

2000-440

Item no.: 2009-402
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-402

Item no.: 2009-404
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-404

Item no.: 2009-406
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-406

Item no.: 210-103

Wire commoning chain; insulated; 50 connections; black

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-243

Downloads

Documentation

Bid Text

2200-1401 docx

15.1 kB

Download

Additional Information

Technical explanations Apr 3, 2019 pdf

2.1 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 2200-1401 URL Download

2200-1401

22.08.2019Page /10 11

Data sheet | Item number:2200-1401

EPLAN

EPLAN Data Portal Download



2200-1401

Subject to changes.

22.08.2019Page /11 11
