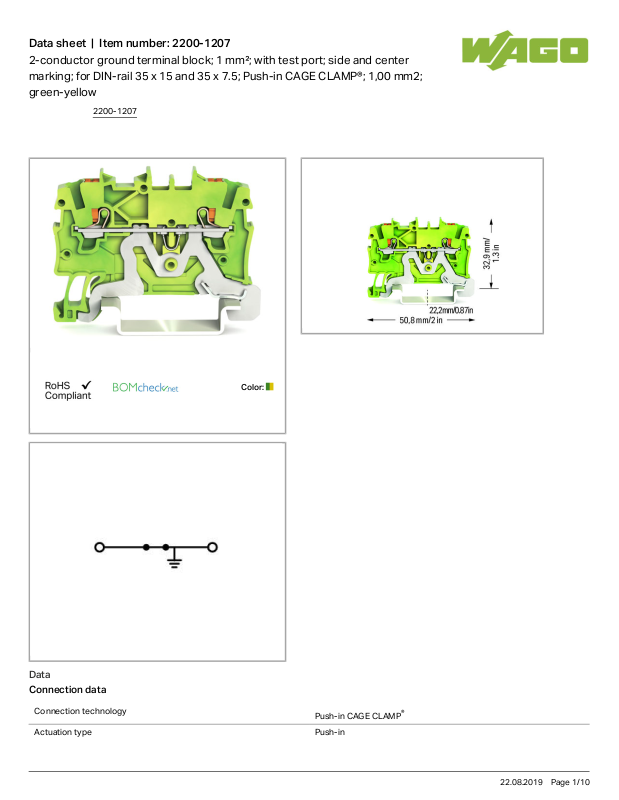

Data sheet | Item number:2200-1207
2-conductor ground terminal block; 1 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm2; green-yellow
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
2200-1207
22.08.2019Page /1 10
Data sheet | Item number:2200-1207
Push-button
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 50.8mm/ 2inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 3.504g
Commercial data
Country of origin DE
GTIN 4055143691604
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 4788311594
2200-1207
22.08.2019Page /2 10
Data sheet | Item number:2200-1207
