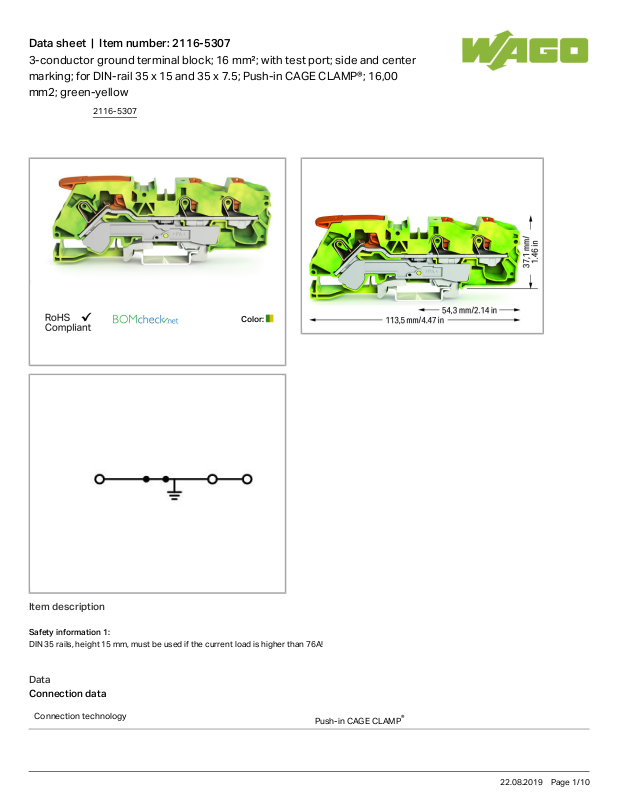

Data sheet | Item number:2116-5307
3-conductor ground terminal block; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm2; green-yellow
Item description
Safety information 1:
DIN 35 rails, height 15 mm, must be used if the current load is higher than 76A!
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
2116-5307
22.08.2019Page /1 10
Data sheet | Item number:2116-5307
Actuation type Push-in
Lever Push-button
Connectable conductor materials Copper
Nominal cross section 16mm²
Solid conductor 0.5 16mm²/ 20 6AWG
Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG
Fine-stranded conductor 0.5 25mm²/ 20 4AWG
Strip length 18 20mm/ 0.71 0.79inch
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Actuation type 2 Push-in
Push-button Operating tool
Geometrical Data
Width 12mm/ 0.472inch
Height from upper-edge of DIN-35 rail 37.1mm/ 1.461inch
Depth 113.5mm/ 4.469inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 56.859g
Commercial data
Country of origin DE
GTIN 4055143746168
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Certificate
2116-5307
22.08.2019Page /2 10
Data sheet | Item number:2116-5307
Logo Approval Additional Approval Text name
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB ATEX
1012 U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0019U
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7675
CSA
DEKRA Certification B.V.
C22.2 70175104
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
103140
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7675
CSA
DEKRA Certification B.V.
C22.2 70175104
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
103140
2116-5307
22.08.2019Page /3 10
Data sheet | Item number:2116-5307
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 19­HG1866350­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
check
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Item no.: 2016-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 16,00 mm2; gray
2016-511
Item no.: 2016-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2016-549

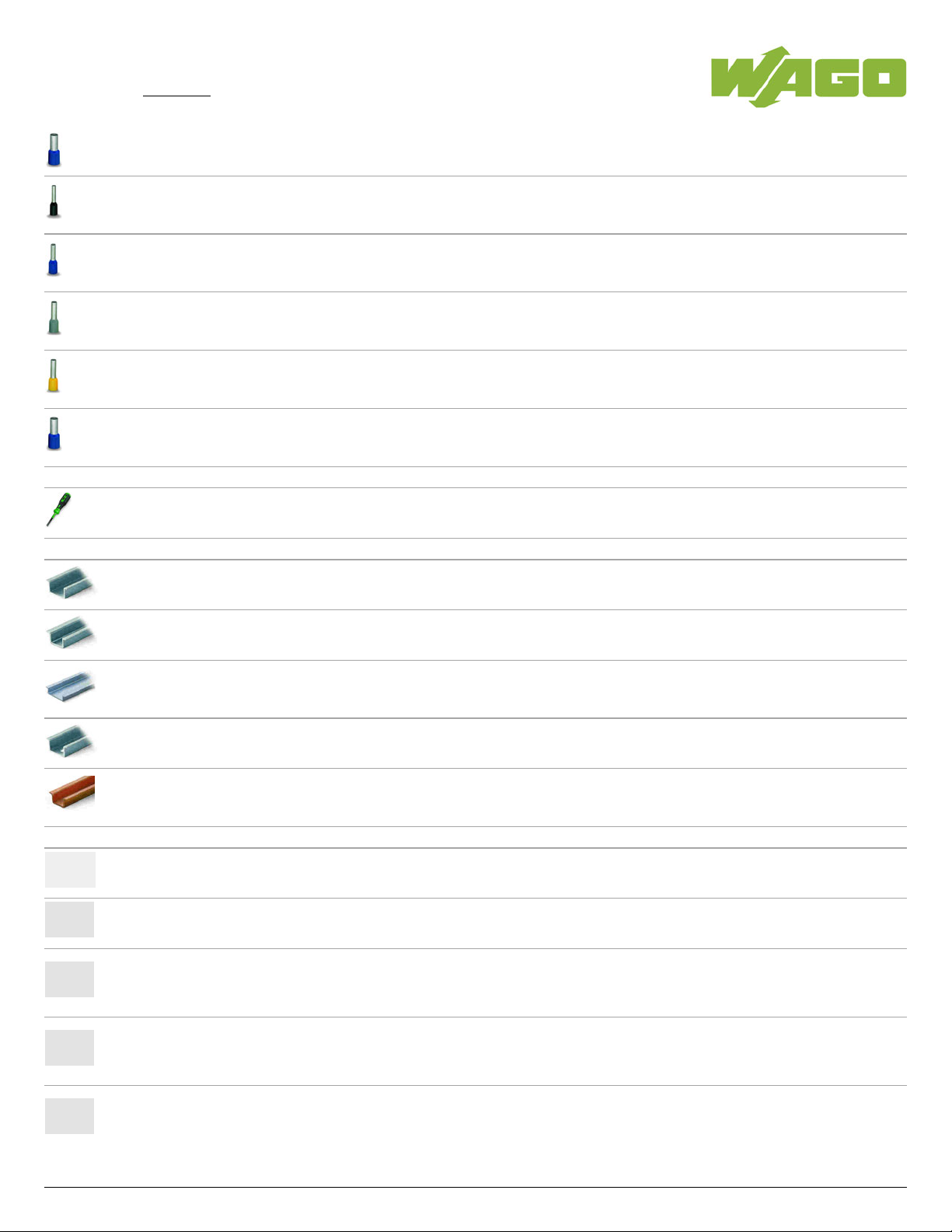

ferrule
Item no.: 216-210
Ferrule; Sleeve for 16 mm² / AWG 6; insulated; electro-tin plated; electrolytic copper; gastight
216-210
2116-5307
22.08.2019Page /4 10
Data sheet | Item number:2116-5307
crimped; acc. to DIN 46228, Part 4/09.90; blue
Item no.: 216-284 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; black
216-284
Item no.: 216-286 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; blue
216-286
Item no.: 216-287 Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray
216-287
Item no.: 216-288 Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; yellow
216-288
Item no.: 216-289 Ferrule; Sleeve for 10 mm² / AWG 8; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red
216-289
tools
Item no.: 210-721 Operating tool; Blade: 5.5 x 0.8 mm; with a partially insulated shaft
210-721
Carrier rail
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored
210-198
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
2116-5307
22.08.2019Page /5 10
Data sheet | Item number:2116-5307
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
2116-5307
22.08.2019Page /6 10
Data sheet | Item number:2116-5307
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 793-501 WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
2116-5307
22.08.2019Page /7 10
Data sheet | Item number:2116-5307
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; white
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024
General accessories
Item no.: 2016-100
Finger guard; touchproof cover protects unused conductor entries; yellow
2016-100
End plate
2116-5307
22.08.2019Page /8 10
Data sheet | Item number:2116-5307
Item no.: 2116-1391
End and intermediate plate; 1 mm thick; for 3-conductor terminal blocks; gray
2116-1391
Item no.: 2116-1392
End and intermediate plate; 1 mm thick; for 3-conductor terminal blocks; orange
2116-1392

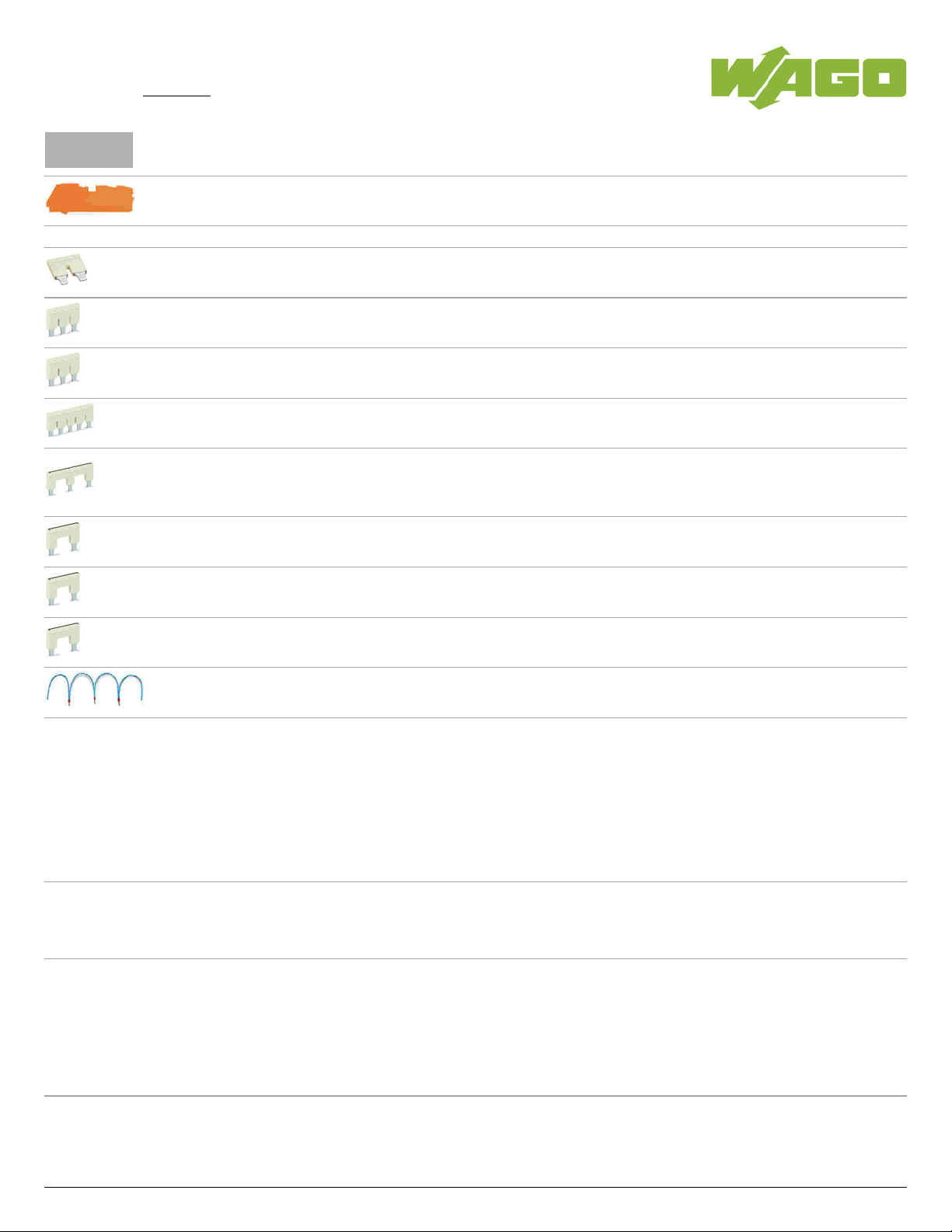

Jumper
Item no.: 2016-402
Push-in type jumper bar; insulated; 2-way; Nominal current 76 A; light gray
2016-402
Item no.: 2016-403
Push-in type jumper bar; insulated; 3-way; Nominal current 76 A; light gray
2016-403
Item no.: 2016-404
Push-in type jumper bar; insulated; 4-way; Nominal current 76 A; light gray
2016-404
Item no.: 2016-405
Push-in type jumper bar; insulated; 5-way; Nominal current 76 A; light gray
2016-405
Item no.: 2016-405/011-000 Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2016-405
/011-000
Item no.: 2016-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 76 A; light gray
2016-433
Item no.: 2016-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 76 A; light gray
2016-434
Item no.: 2016-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 76 A; light gray
2016-435
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Downloads
Documentation
Bid Text
2116-5307 docx
14.9 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2116-5307 URL Download
EPLAN
2116-5307
22.08.2019Page /9 10
Data sheet | Item number:2116-5307
EPLAN Data Portal
Download
2116-5307
Subject to changes.
22.08.2019Page /10 10
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
