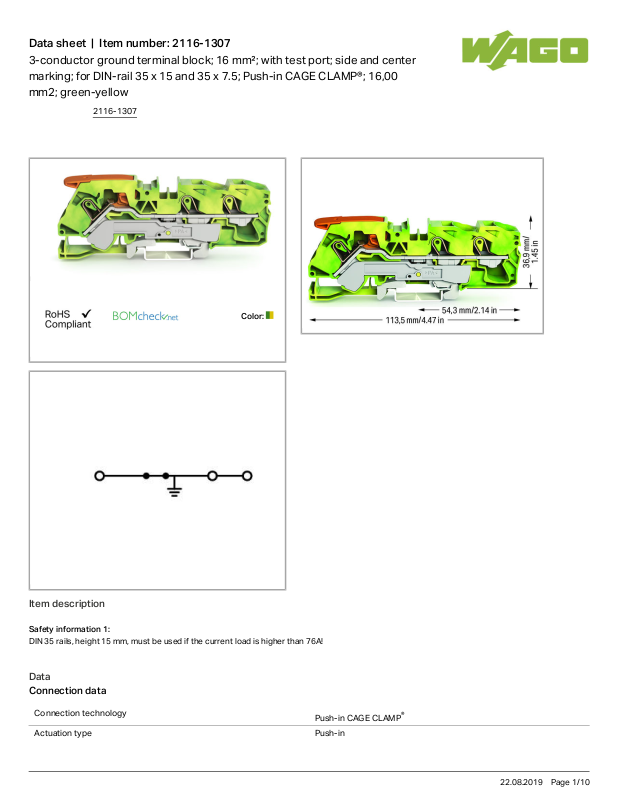

Wago 2116-1307 Data Sheet

Data sheet | Item number:2116-1307

3-conductor ground terminal block; 16 mm²; with test port; side and center
marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00
mm2; green-yellow

Color:

Item description

Safety information 1:

DIN 35 rails, height 15 mm, must be used if the current load is higher than 76A!

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

2116-1307

22.08.2019Page /1 10

Data sheet | Item number:2116-1307

Lever
Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 16mm²/ 20 6AWG

Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG

Fine-stranded conductor 0.5 25mm²/ 20 4AWG

Strip length 18 20mm/ 0.71 0.79inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Actuation type 2 Push-in

Operating tool

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 113.5mm/ 4.469inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 56.183g

Commercial data

Country of origin DE

GTIN 4055143746137

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL 60079 E185892

2116-1307

22.08.2019Page /2 10

Data sheet | Item number:2116-1307

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB ATEX

1012 U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0019U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7675

CSA

DEKRA Certification B.V.

C22.2 70175104

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

103140

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7675

CSA

DEKRA Certification B.V.

C22.2 70175104

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

103140

2116-1307

22.08.2019Page /3 10
