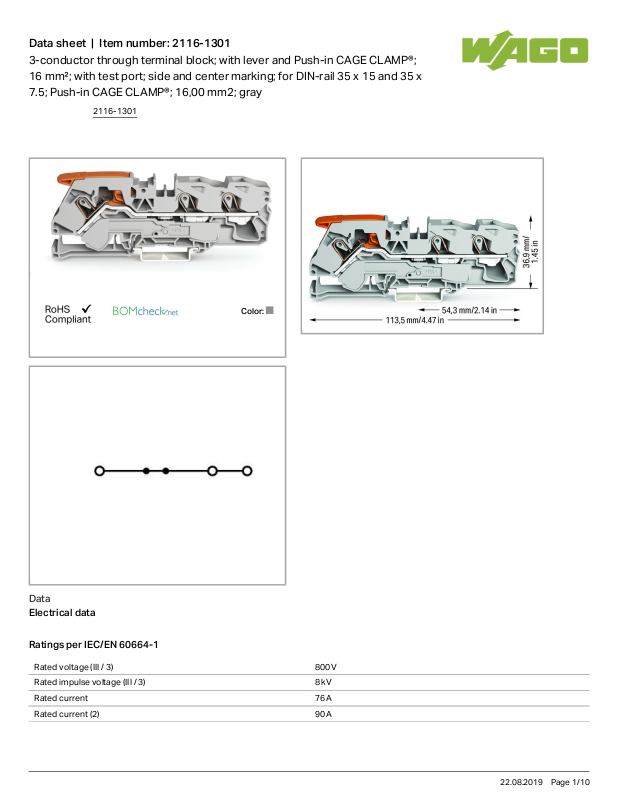

Wago 2116-1301 Data Sheet

Data sheet | Item number:2116-1301

3-conductor through terminal block; with lever and Push-in CAGE CLAMP®;
16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x

7.5; Push-in CAGE CLAMP®; 16,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 76 A

Rated current (2) 90 A

2116-1301

22.08.2019Page /1 10

Data sheet | Item number:2116-1301

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Lever
Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 16mm²/ 20 6AWG

Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG

Fine-stranded conductor 0.5 25mm²/ 20 4AWG

Strip length 18 20mm/ 0.71 0.79inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Actuation type 2 Push-in

Operating tool

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 113.5mm/ 4.469inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Weight 40.3g

Commercial data

Country of origin DE

GTIN 4055143746045

Customs Tariff No. 85369010000

2116-1301

22.08.2019Page /2 10
