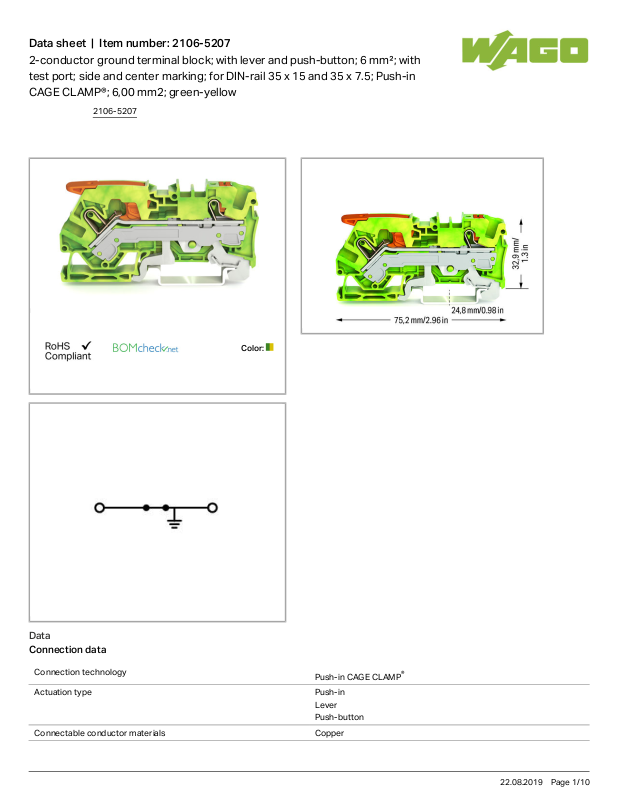

Data sheet | Item number:2106-5207
2-conductor ground terminal block; with lever and push-button; 6 mm²; with
test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in
CAGE CLAMP®; 6,00 mm2; green-yellow
Color:
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Lever
Push-button
Connectable conductor materials Copper
2106-5207
22.08.2019Page /1 10
Data sheet | Item number:2106-5207
Nominal cross section 6mm²
Solid conductor 0.5 10mm²/ 20 8AWG
Solid conductor, push-in termination 1 10mm²/ 14 8AWG
Fine-stranded conductor 0.5 10mm²/ 20 8AWG
Strip length 13 15mm/ 0.51 0.59inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Actuation type 2 Push-in
Push-button
Operating tool
Geometrical Data
Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 75.2mm/ 2.961inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 23.381g
Commercial data
Country of origin DE
GTIN 4055143742474
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
2106-5207
22.08.2019Page /2 10
Data sheet | Item number:2106-5207
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB 18
ATEX
1011 U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0018U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0018U
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7678
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
103226
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7678
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
103226
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
- 19-
2106-5207
22.08.2019Page /3 10
Data sheet | Item number:2106-5207
American Bureau of Shipping HG1866350-
PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc.
UL 1059 20181005-
E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc.
UL 1059 20181005-
E45172
