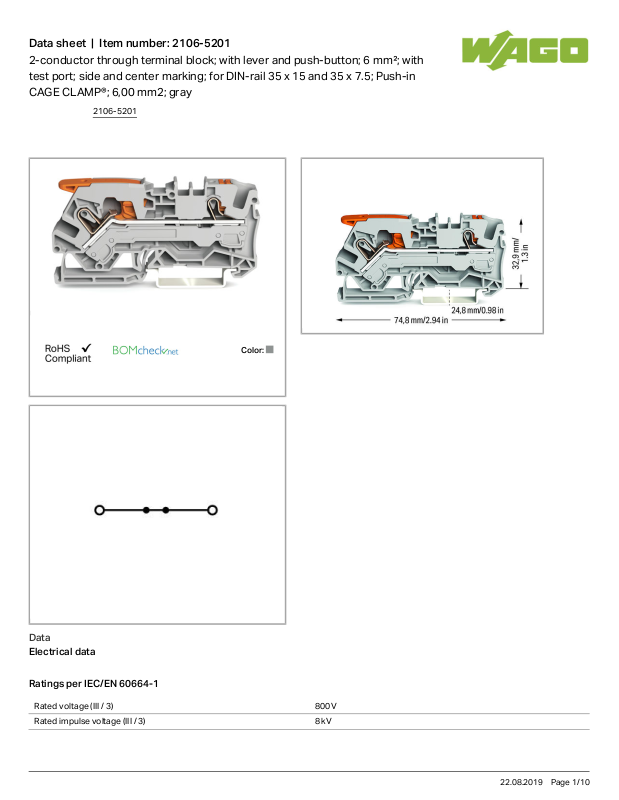

Wago 2106-5201 Data Sheet

Data sheet | Item number:2106-5201

2-conductor through terminal block; with lever and push-button; 6 mm²; with
test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in
CAGE CLAMP®; 6,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

2106-5201

22.08.2019Page /1 10

Data sheet | Item number:2106-5201

Rated current 41 A

Rated current (2) 57 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Lever
Push-button

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 10mm²/ 20 8AWG

Solid conductor, push-in termination 1 10mm²/ 14 8AWG

Fine-stranded conductor 0.5 10mm²/ 20 8AWG

Strip length 13 15mm/ 0.51 0.59inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Actuation type 2 Push-in

Push-button
Operating tool

Geometrical Data

Width 7.5mm/ 0.295inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 74.8mm/ 2.945inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Weight 14.2g

Commercial data

Country of origin DE

2106-5201

22.08.2019Page /2 10

Data sheet | Item number:2106-5201

GTIN 4055143742450

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1011 U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0018U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0018U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7678

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

103226

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7678
