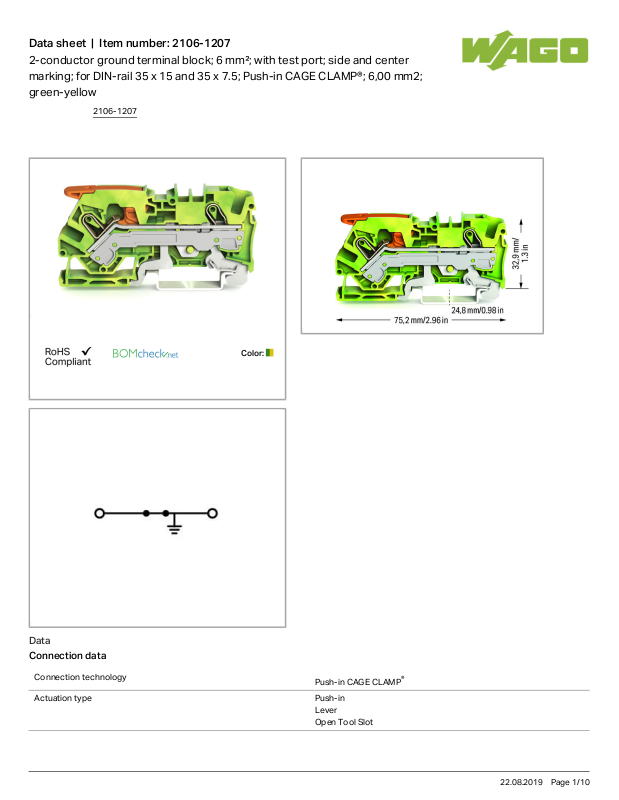

Wago 2106-1207 Data Sheet

Data sheet | Item number:2106-1207

2-conductor ground terminal block; 6 mm²; with test port; side and center
marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm2;
green-yellow

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Lever
Open Tool Slot

2106-1207

22.08.2019Page /1 10

Data sheet | Item number:2106-1207

Connectable conductor materials Copper

Nominal cross section 6mm²

Solid conductor 0.5 10mm²/ 20 8AWG

Solid conductor, push-in termination 1 10mm²/ 14 8AWG

Fine-stranded conductor 0.5 10mm²/ 20 8AWG

Strip length 13 15mm/ 0.51 0.59inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Actuation type 2 Push-in

Operating tool

Geometrical Data

Width 7.5mm/ 0.295inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 75.2mm/ 2.961inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 23.281g

Commercial data

Country of origin DE

GTIN 4055143742030

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

2106-1207

22.08.2019Page /2 10

Data sheet | Item number:2106-1207

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1011 U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0018U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0018U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7678

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

103226

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7678

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

103226

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

- 19-

2106-1207

22.08.2019Page /3 10
