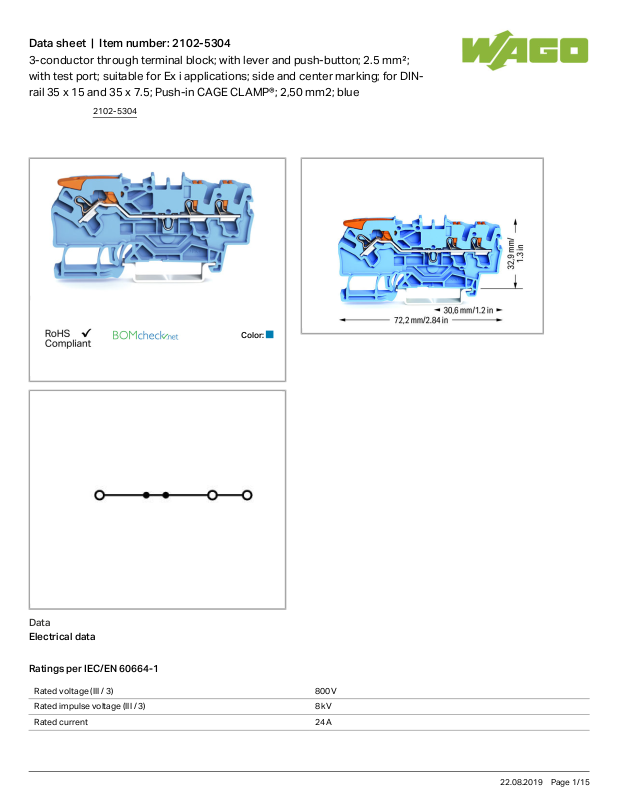

Wago 2102-5304 Data Sheet

Data sheet | Item number:2102-5304

3-conductor through terminal block; with lever and push-button; 2.5 mm²;
with test port; suitable for Ex i applications; side and center marking; for DIN­rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm2; blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

2102-5304

22.08.2019Page /1 15

Data sheet | Item number:2102-5304

Rated current (2) 30 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Lever
Push-button

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Actuation type 2 Push-in

Push-button
Operating tool

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 72.2mm/ 2.843inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

2102-5304

22.08.2019Page /2 15

Data sheet | Item number:2102-5304

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Weight 8.142g

Commercial data

Country of origin DE

GTIN 4055143741989

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 20181105-

E185892

AEx

Underwriters Laboratories Inc.

UL 60079 20181105-

E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1010 U

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1010 U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0017U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079-0 IECEx PTB

18.0017U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7670

2102-5304

22.08.2019Page /3 15

Data sheet | Item number:2102-5304

CSA

DEKRA Certification B.V.

C22.2 70175030

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102882

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7670

CSA

DEKRA Certification B.V.

C22.2 70175030

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102882

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 9­HG1866350­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00003JT

LR

Lloyds Register

- 19/20050

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

2102-5304

22.08.2019Page /4 15

Data sheet | Item number:2102-5304

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-243

Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black

216-244

Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue

216-246

Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-262

Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-263

Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black

216-264

Item no.: 216-266
