Wago 2102-1307 Data Sheet

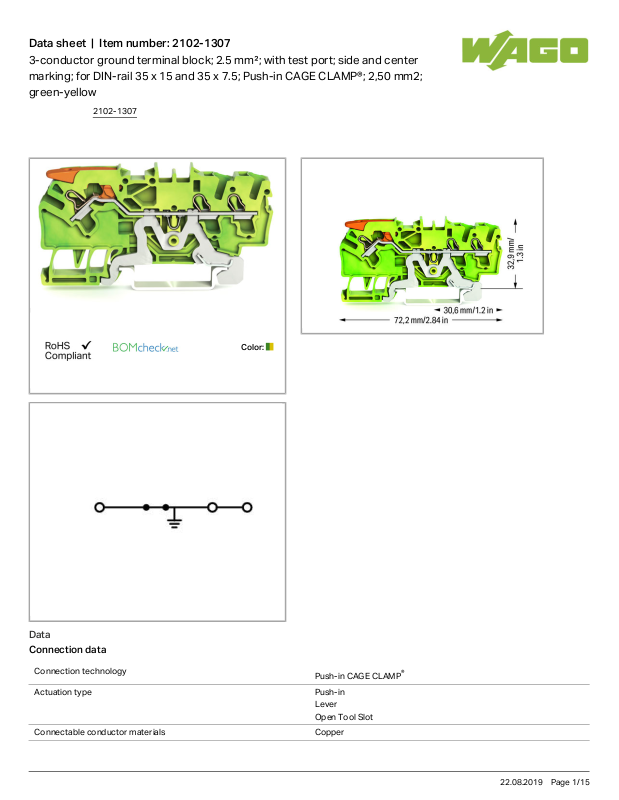

Data sheet | Item number:2102-1307
3-conductor ground terminal block; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm2; green-yellow
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Lever Open Tool Slot
Connectable conductor materials Copper
2102-1307
22.08.2019Page /1 15
Data sheet | Item number:2102-1307
Nominal cross section 2.5mm²
Solid conductor 0.25 4mm²/ 22 12AWG
Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG
Fine-stranded conductor 0.25 4mm²/ 22 12AWG
Strip length 10 12mm/ 0.39 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Actuation type 2 Push-in
Operating tool
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 72.2mm/ 2.843inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 11.006g
Commercial data
Country of origin DE
GTIN 4055143741811
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 20181105-
E185892
2102-1307
22.08.2019Page /2 15
Data sheet | Item number:2102-1307
AEx
Underwriters Laboratories Inc.
UL 60079 20181105-
E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB 18
ATEX 1010 U
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB 18
ATEX 1010 U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0017U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0017U
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7670
CSA
DEKRA Certification B.V.
C22.2 70175030
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102882
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7670
CSA
C22.2 70175030
2102-1307
22.08.2019Page /3 15
Data sheet | Item number:2102-1307
DEKRA Certification B.V.
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102882
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 19­HG1866350­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
2102-1307
22.08.2019Page /4 15
Data sheet | Item number:2102-1307
plug
Item no.: 2002-880
Empty component plug housing; 10.4 mm wide; 2-pole; Type 4; gray
2002-880
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
2002-115
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; white
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red
216-243
Item no.: 216-244 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; black
216-244
Item no.: 216-246 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; blue
216-246
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; black
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; blue
216-266
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
2102-1307
22.08.2019Page /5 15
