Wago 2102-1207 Data Sheet

Data sheet | Item number:2102-1207

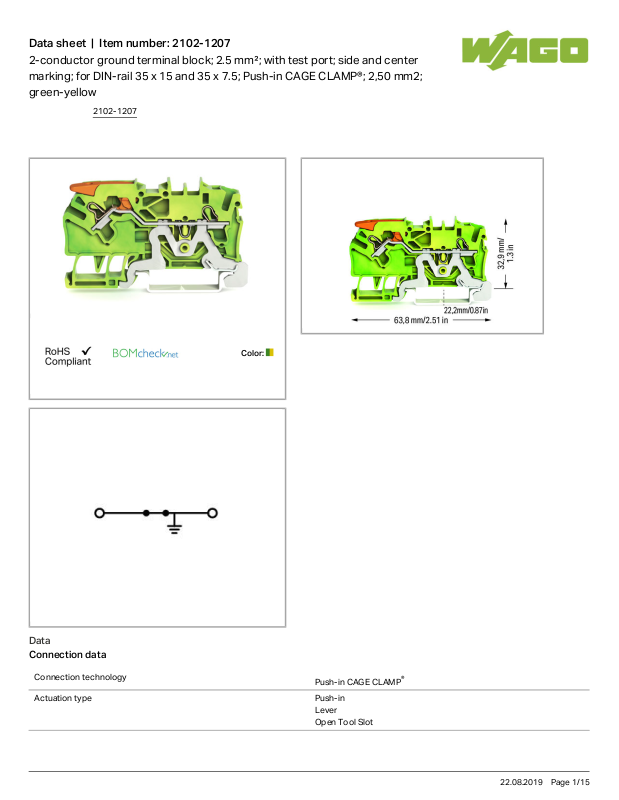

2-conductor ground terminal block; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm2; green-yellow
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Lever Open Tool Slot
2102-1207
22.08.2019Page /1 15
Data sheet | Item number:2102-1207
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 4mm²/ 22 12AWG
Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG
Fine-stranded conductor 0.25 4mm²/ 22 12AWG
Strip length 10 12mm/ 0.39 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Actuation type 2 Push-in
Operating tool
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 63.8mm/ 2.512inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Weight 9.903g
Commercial data
Country of origin DE
GTIN 4055143741767
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
UL 60079 20181105-
2102-1207
22.08.2019Page /2 15
Data sheet | Item number:2102-1207
Underwriters Laboratories Inc.
E185892
AEx
Underwriters Laboratories Inc.
UL 60079 20181105-
E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB 18
ATEX 1010 U
ATEX
Physikalisch Technische Bundesanstalt
EN 60079-0 PTB 18
ATEX 1010 U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0017U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0017U
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7670
CSA
DEKRA Certification B.V.
C22.2 70175030
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102882
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7670
CSA
C22.2 70175030
2102-1207
22.08.2019Page /3 15
Data sheet | Item number:2102-1207
DEKRA Certification B.V.
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102882
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 19­HG1866350­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
2102-1207
22.08.2019Page /4 15
Data sheet | Item number:2102-1207
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A; light gray
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A; light gray
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A; red
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A; blue
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A; light gray
2002-403
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A; red
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A; blue
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A; light gray
2002-404
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A; red
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A; blue
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A; light gray
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A; red
2002-405
/000-005
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A; blue
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2002-405
/011-000
2102-1207
22.08.2019Page /5 15
