Wago 2092-3124 Data Sheet

Data sheet | Item number: 2092-3124

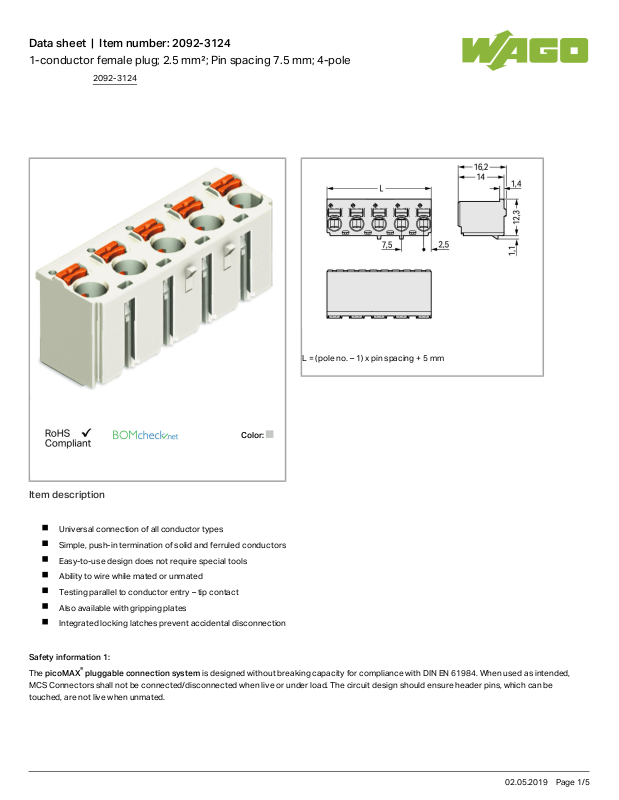

1-conductor female plug; 2.5 mm²; Pin spacing 7.5 mm; 4-pole

2092-3124

L = (pole no. – 1) x pin spacing + 5 mm

Color:

Item description

Universal connection of all conductor types

Simple, push-in termination of solid and ferruled conductors

Easy-to-use design does not require special tools

Ability to wire while mated or unmated

Testing parallel to conductor entry – tip contact

Also available with gripping plates

Integrated locking latches prevent accidental disconnection

Safety information 1:

The picoMAX® pluggable connection system is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

02.05.2019 Page 1/5

Data sheet | Item number: 2092-3124

2092-3124

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3)	400V
Rated impulse voltage (III / 3)	6kV
Rated voltage (III / 2)	630V
Rated impulse voltage (III / 2)	6kV
Rated voltage (II / 2)	1000V
Rated impulse voltage (II / 2)	6kV
Rated current	16A

Approvals per UL 1059

Rated voltage UL (Use Group B)	300V
Rated current UL (Use Group B)	15A
Rated voltage UL (Use Group D)	300V
Rated current UL (Use Group D)	10A

Connection data

Connection technology	Push-in CAGE CLAMP®
Actuation type	Push-button
Solid conductor	0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor	0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 1.5 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 2.5 mm²
Strip length	9 … 10 mm / 0.35 … 0.39 inch
No. of poles	4
Total number of connection points	4
Total number of potentials	4
Number of connection types	1
Number of levels	1

Geometrical Data

Pin spacing	7.5 mm / 0.295 inch
Width	27.5 mm / 1.083 inch
Height	16.2 mm / 0.638 inch
Depth	13.4 mm / 0.528 inch

02.05.2019 Page 2/5
