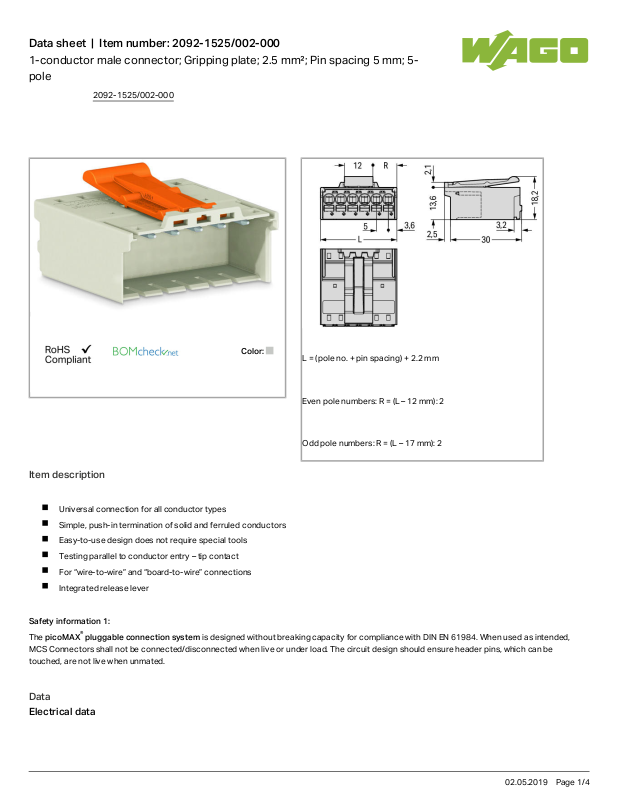

Wago 2092-1525/002-000 Data Sheet
Data sheet | Item number: 2092-1525/002-000
1-conductor male connector; Gripping plate; 2.5 mm²; Pin spacing 5 mm; 5- pole
2092-1525/002-000
Color:
L = (pole no. + pin spacing) + 2.2 mm
Even pole numbers: R = (L – 12 mm): 2
Odd pole numbers: R = (L – 17 mm): 2
Item description
Universal connection for all conductor types
Simple, push-in termination of solid and ferruled conductors
Easy-to-use design does not require special tools
Testing parallel to conductor entry – tip contact
For “wire-to-wire” and “board-to-wire” connections
Integrated release lever
Safety information 1:
The picoMAX® pluggable connection system is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Data
Electrical data
02.05.2019 Page 1/4
Data sheet | Item number: 2092-1525/002-000
2092-1525/002-000
Ratings per IEC/EN 60664-1
Rated voltage (III / 3)
Rated impulse voltage (III / 3)
Rated voltage (III / 2)
Rated impulse voltage (III / 2)
Rated voltage (II / 2)
Rated impulse voltage (II / 2)
Rated current
Approvals per UL 1059
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group D)
Rated current UL (Use Group D)
Connection data
Connection technology
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar Fine-stranded conductor with ferrule without plastic collar Strip length
No. of poles
Total number of connection points
Total number of potentials
Number of connection types
Number of levels
Geometrical Data
Pin spacing
Width
Height
Depth
Plug connection
Contact type (pluggable connector)
Connector connection type
Mismating protection
250V
4kV
320V
4kV
630V
4kV
16A
300V
15A
300V
10A
Push-in CAGE CLAMP®
Push-button
0.2 … 2.5 mm² / 24 … 12 AWG
0.2 … 2.5 mm² / 24 … 12 AWG
0.25 … 1.5 mm²
0.25 … 2.5 mm²
9 … 10 mm / 0.35 … 0.39 inch
5
5
5
1
1
5 mm / 0.197 inch
27.2 mm / 1.071 inch
18.2 mm / 0.717 inch
32.6 mm / 1.283 inch
Male connector/plug for conductors
No
02.05.2019 Page 2/4
