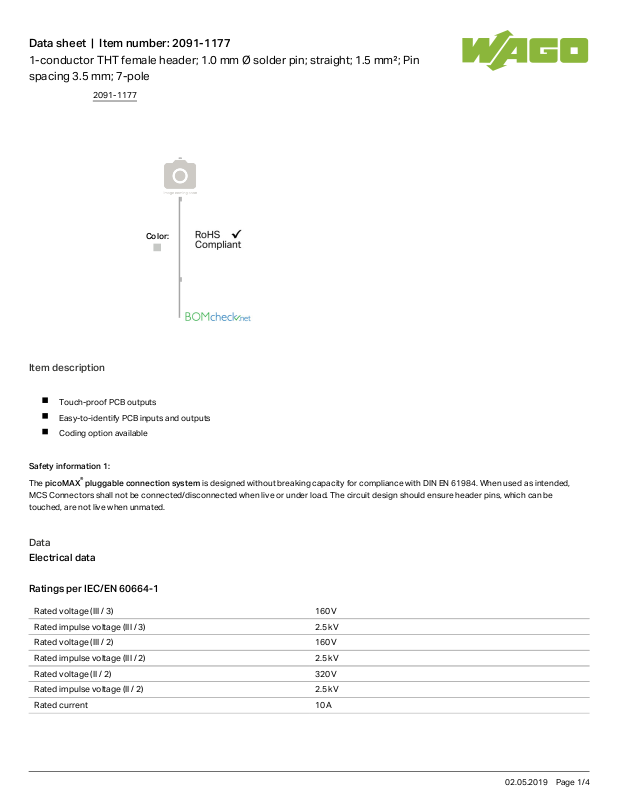

Wago 2091-1177 Data Sheet
Data sheet | Item number: 2091-1177
1-conductor THT female header; 1.0 mm Ø solder pin; straight; 1.5 mm²; Pin spacing 3.5 mm; 7-pole
2091-1177
Color:
Item description
Touch-proof PCB outputs
Easy-to-identify PCB inputs and outputs
Coding option available
Safety information 1:
The picoMAX® pluggable connection system is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) |
160V |
Rated impulse voltage (III / 3) |
2.5kV |
Rated voltage (III / 2) |
160V |
Rated impulse voltage (III / 2) |
2.5kV |
Rated voltage (II / 2) |
320V |
Rated impulse voltage (II / 2) |
2.5kV |
Rated current |
10A |
02.05.2019 Page 1/4
Data sheet | Item number: 2091-1177
2091-1177
Approvals per UL 1059
Rated voltage UL (Use Group B) |
300V |
Rated current UL (Use Group B) |
10A |
Rated voltage UL (Use Group D) |
300V |
Rated current UL (Use Group D) |
10A |
Connection data
Number of connection types |
1 |
Number of levels |
1 |
Geometrical Data
Pin spacing |
3.5 mm / 0.138 inch |
Solder pin length |
3.6mm |
Solder pin dimensions |
0.4 x 0.9 mm |
Plug connection
Contact type (pluggable connector) |
Female connector/socket |
Connector connection type |
for PCBs |
Mismating protection |
No |
PCB contact
PCB contact THR
Material Data
Color |
light gray |
Material group |
I |
Insulating material |
Polyphthalamide (PPA GF) |
Flammability class per UL94 |
V0 |
Contact material |
Copper alloy |
Contact plating |
tin-plated |
Fire load |
0MJ |
Weight |
4.144g |
Environmental Requirements
Limit temperature range |
-60 … +100 °C |
Commercial data
Country of origin |
DE |
GTIN |
4055143428637 |

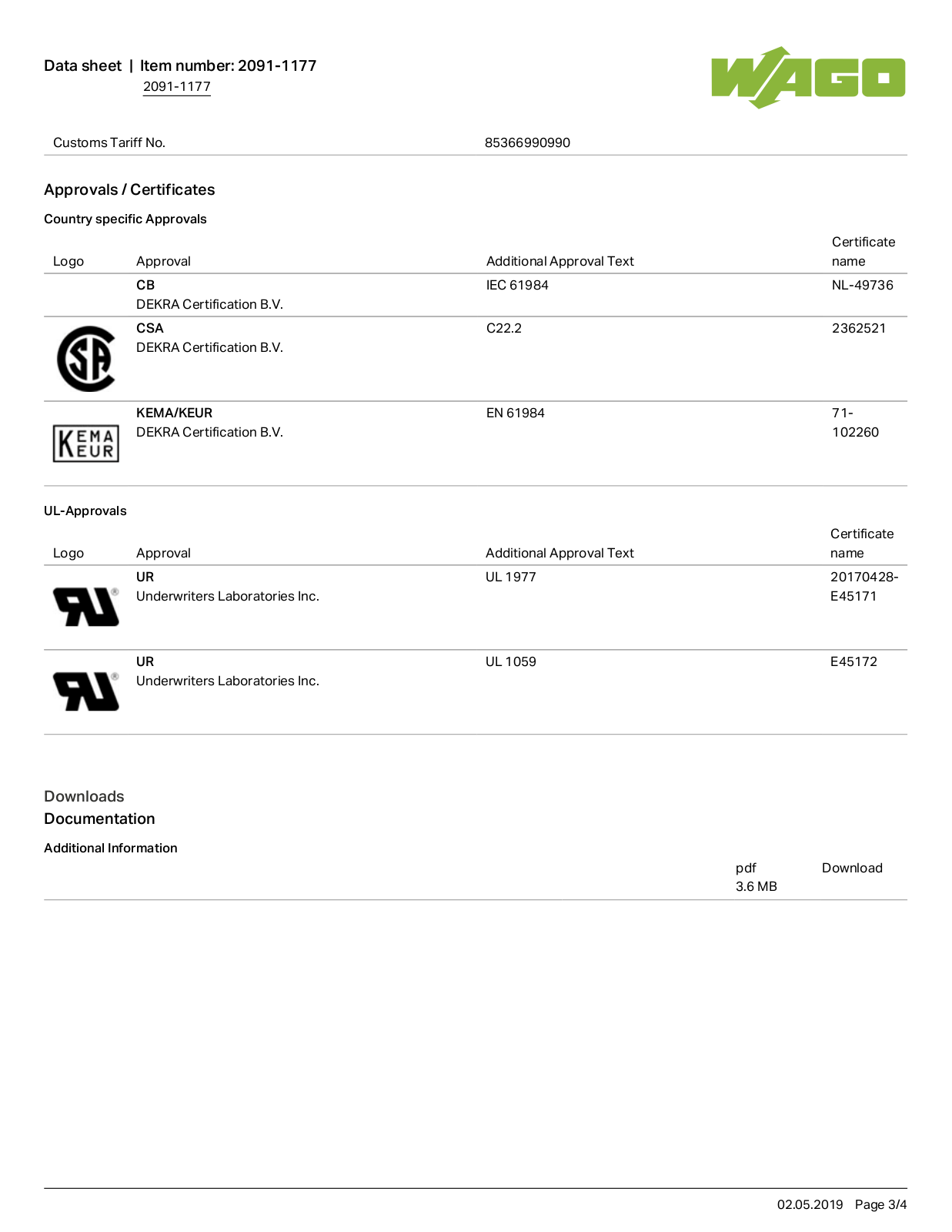

02.05.2019 Page 2/4
