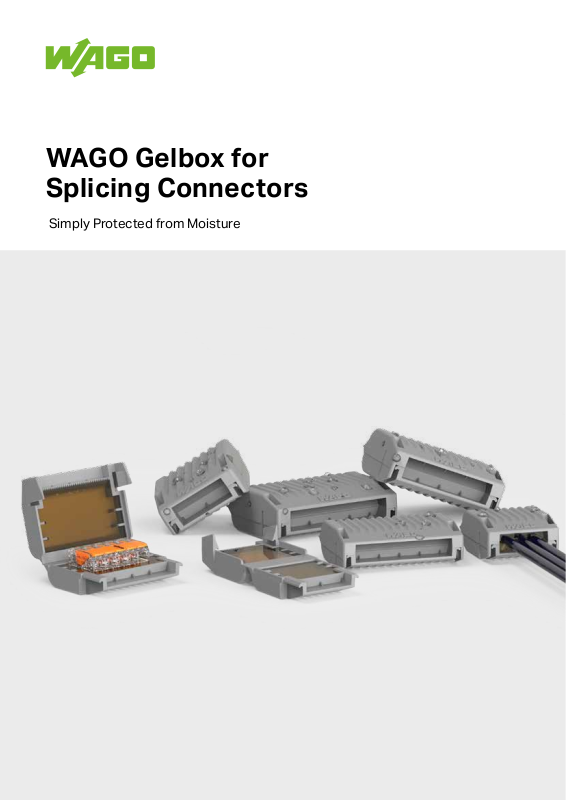

WAGO Gelbox for
Splicing Connectors
Simply Protected from Moisture
Installation and Advantages
Easy Installation
▪ Space-saving, compact design
▪ Gain even more junction box space because several
connectors can be used in one Gelbox
▪ Easy to use through innovative design
▪ Readily extend circuits – thanks to fast re-accessibility
Open the Gelbox at the side latches. Place the wired connector in the Gelbox.
Fast Installation
▪ Time-saving thanks to direct commissioning,
no mixing and hardening of gel mass is necessary
▪ Always ready for use thanks to gel-filled boxes
that can be stored indefinitely
Close the Gelbox.
2
Simply extend circuits:
Open the Gelbox, remove gel from the connector, open the connector
and connect new components to the cable.
Safe Applications
Versatile Applications
▪ Complete system consisting of Gelbox and WAGO
221/2273 Series Connectors has been submitted for
VDE testing*
▪ Excellent protection when Gelbox is only combined with
221/2273 Series Connectors; always the perfect gel
displacement for safe installation
▪ IPX8 level of protection against moisture and water
ingress
▪ Label-free Cellpack quality gel
▪ Stability thanks to a robust housing
▪ No conductor damage thanks to the flexible sealing lip
Compact housing
Suitable for indefinite
storage
▪ Can be used in all branches of industry due to
silicone-free gel
▪ Can be used in the low-voltage range with additional
housing (double insulation)
VDE test (pending)
Robust housing
Silicone-free gel
*VDE tests are pending at the time of publication.
IPX8
Re-accessible
connection
Ready to use
3
Technical Data
Easy Installation
▪ Voltage range: see connector voltage
▪ Rated current: see connector current
▪ Rated surge voltage: 2.5 kV
▪ Insulation resistance: 5 MΩ
▪ Continuous operating temperature: 105°C
▪ Surrounding air temperature: 85 °C
▪ Physical properties: IPX8
▪ Suitable for indefinite storage because the gel
contains no hazardous substance according to CLP
Description Item Number Pack. Unit
Gelbox, IPX8, 221 and 2273 Series,
max. 4 mm² connectors, size 1
Gelbox, IPX8, 221 and 2273 Series,
max. 4 mm² connectors, size 2
Gelbox, IPX8, 221 and 2273 Series,
max. 4 mm² connectors, size 3
Gelbox, IPX8, 221 Series,
max. 6 mm² connectors, size 1
Gelbox, IPX8, 221 Series,
max. 6 mm² connectors, size 2
Gelbox, IPX8, 221 Series,
max. 6 mm² connectors, size 3
207-1331 4
207-1332 4
207-1333 3
207-1431 4
207-1432 3
207-1433 2
Permitted Combinations of Connectors and Gelbox:
Item Number 221-412 221-413 221-415 221-612 221-613 221-615 2273-202 2273-203 2273-204 2273-208
207-1331 1 x 1 x - 2 x - 1 x 1 x
207-1332 2 x - 1 x 3 x 2 x - 1 x
207-1333 3 x 2 x - 4 x - 2 x 2 x
207-1431 1 x 1 x -
207-1432 2 x - 1 x
207-1433 3 x 2 x -
Note: With other combinations, IPX8 protection cannot be guaranteed.
0888-0161/0100-6901 - GELBOX FLYER 1.0 US - 02/2020-00 - Printed in Germany - Subject to changes
