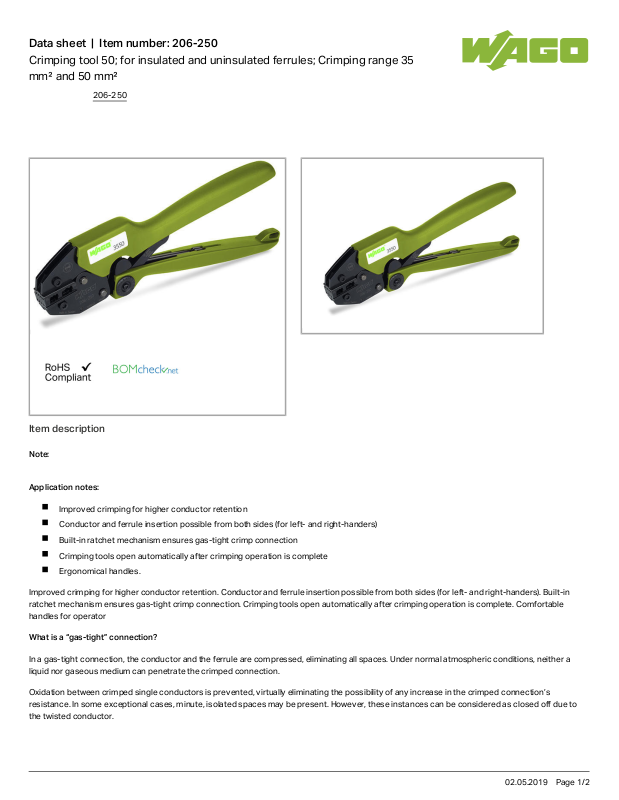

Wago 206-250 Data Sheet
Data sheet | Item number:206-250
Crimping tool 50; for insulated and uninsulated ferrules; Crimping range 35
mm² and 50 mm²
Item description
Note:
Application notes:
Improved crimping for higher conductor retention
Conductor and ferrule insertion possible from both sides (for left- and right-handers)
Built-in ratchet mechanism ensures gas-tight crimp connection
Crimping tools open automatically after crimping operation is complete
Ergonomical handles.
Improved crimping for higher conductor retention. Conductor and ferrule insertion possible from both sides (for left- and right-handers). Built-in
ratchet mechanism ensures gas-tight crimp connection. Crimping tools open automatically after crimping operation is complete. Comfortable
handles for operator
What is a “gas-tight” connection?
In a gas-tight connection, the conductor and the ferrule are compressed, eliminating all spaces. Under normal atmospheric conditions, neither a
liquid nor gaseous medium can penetrate the crimped connection.
Oxidation between crimped single conductors is prevented, virtually eliminating the possibility of any increase in the crimped connection’s
resistance. In some exceptional cases, minute, isolated spaces may be present. However, these instances can be considered as closed off due to
the twisted conductor.
206-250
02.05.2019Page /1 2
Data sheet | Item number:206-250
Inadequate crimping can allow the conductor to be pulled out of the connection. Hollow spaces also remain, permitting oxidation formation
and leading to an increase in contact resistance.
Elevated resistance is detrimental for signal transmission, as the signal flow is damped (weakened), and for power transmission, as power loss and,
hence a temperature increase due to contact (risk of fire) can result.
Crimping tools with built-in ratchets are recommended, such as the . These tools only open after the crimping process has WAGO crimping tools
been fully completed. Space-saving crimping from all four sides is ideal for spring clamp termination.
Cross section data for ferruled conductors indicated for WAGO products is based on this crimping method.
Data
Technical Data
Main product function Crimping tools
Material Data
Weight 690 g
Commercial data
Product Group 14 (Tools)
Country of origin SE
GTIN 4017332085854
Customs Tariff No. 82032000000
Downloads
Documentation
Bid Text
206-250 doc
24.1 kB
Download
206-250
Subject to changes.
02.05.2019Page /2 2
