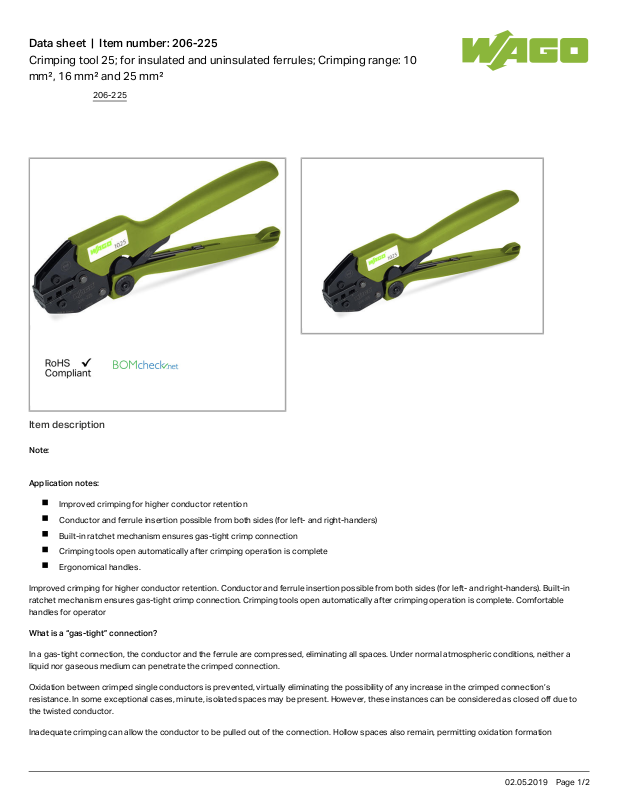

Wago 206-225 Data Sheet

Data sheet | Item number:206-225

Crimping tool 25; for insulated and uninsulated ferrules; Crimping range: 10
mm², 16 mm² and 25 mm²

Item description

Note:

Application notes:

Improved crimping for higher conductor retention

Conductor and ferrule insertion possible from both sides (for left- and right-handers)

Built-in ratchet mechanism ensures gas-tight crimp connection

Crimping tools open automatically after crimping operation is complete

Ergonomical handles.

Improved crimping for higher conductor retention. Conductor and ferrule insertion possible from both sides (for left- and right-handers). Built-in
ratchet mechanism ensures gas-tight crimp connection. Crimping tools open automatically after crimping operation is complete. Comfortable
handles for operator

What is a “gas-tight” connection?

In a gas-tight connection, the conductor and the ferrule are compressed, eliminating all spaces. Under normal atmospheric conditions, neither a
liquid nor gaseous medium can penetrate the crimped connection.

Oxidation between crimped single conductors is prevented, virtually eliminating the possibility of any increase in the crimped connection’s
resistance. In some exceptional cases, minute, isolated spaces may be present. However, these instances can be considered as closed off due to
the twisted conductor.

Inadequate crimping can allow the conductor to be pulled out of the connection. Hollow spaces also remain, permitting oxidation formation

206-225

02.05.2019Page /1 2

Data sheet | Item number:206-225

and leading to an increase in contact resistance.

Elevated resistance is detrimental for signal transmission, as the signal flow is damped (weakened), and for power transmission, as power loss and,
hence a temperature increase due to contact (risk of fire) can result.

Crimping tools with built-in ratchets are recommended, such as the . These tools only open after the crimping process has WAGO crimping tools
been fully completed. Space-saving crimping from all four sides is ideal for spring clamp termination.

Cross section data for ferruled conductors indicated for WAGO products is based on this crimping method.

Data

Technical Data

Main product function Crimping tools

Material Data

Weight 560 g

Commercial data

Product Group 14 (Tools)

Country of origin SE

GTIN 4045454938161

Customs Tariff No. 82032000000

Downloads

Documentation

Bid Text

206-225 doc

24.1 kB

Download



206-225

Subject to changes.

02.05.2019Page /2 2
