Wago 2042-3879 Data Sheet
Data sheet | Item number: 2042-3879

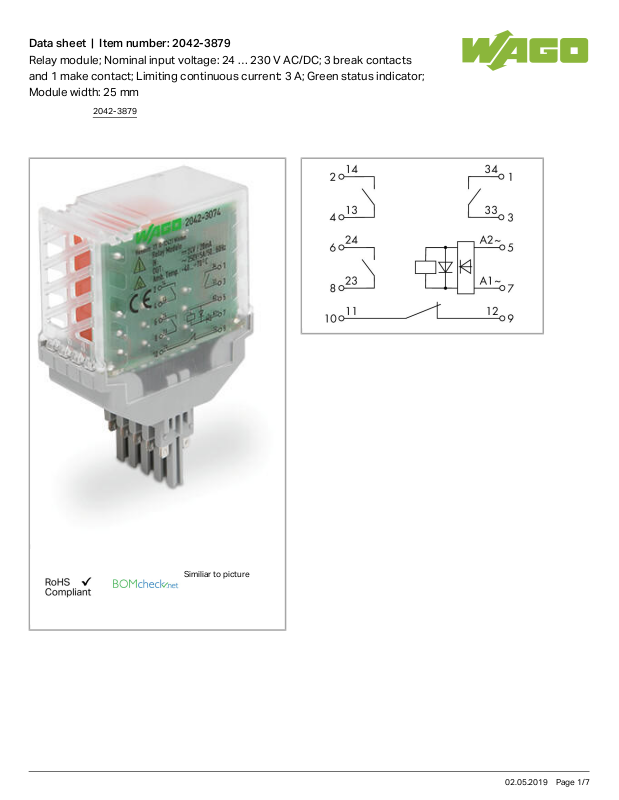

Relay module; Nominal input voltage: 24 … 230 V AC/DC; 3 break contacts and 1 make contact; Limiting continuous current: 3 A; Green status indicator; Module width: 25 mm
2042-3879
Similiar to picture
02.05.2019 Page 1/7
Data sheet | Item number: 2042-3879
2042-3879
Data
Technical Data
Control circuit
Nominal input voltage UN
Input voltage range
Nominal input current at UN
Load circuit:
Number of break contacts/switch off contacts Number of make contacts/switch on contacts Contact material (relay)
Limiting continuous current
Max. make current (resistive)
Max. switching voltage
Max. switching power (resistive)
Recommended minimum load
Pull-in time (typ.)
Drop-out time (typ.)
Bounce time (typ)
Electrical life (N.O.; resistive load; 23 °C)
Mechanical life (N.O.; resistive load; 23 °C)
Signaling
Status indication
DC load limit curve
AC/DC 24 … 230 V
±10 %
6 mA (230 V); 58.4 mA (24 V)
1
3 AgNi 3 A
(AC) 15 A / 4 s AC 250 V
AC 750 VA; DC see load limit curve 12 V / 10 mA
8ms
6ms
4ms
100 x 103 switching operations
10 x 106 switching operations
LED green
02.05.2019 Page 2/7
Data sheet | Item number: 2042-3879
2042-3879
Safety and protection:
Rated voltage |
250V |
Rated impulse voltage |
4kV |
Pollution degree |
2 |
Dielectric strength, control/load circuit (AC, 1 min) |
3 kVrms |
Dielectric strength open contact (AC, 1 min) |
1 kVrms |
Dielectric strength, channel/channel (AC, 1 min) |
2.5 kVrms |
Protection class |
IP20 |
Geometrical Data
Width |
25.9 mm / 1.02 inch |
Height |
77.7 mm / 3.059 inch |
Height from the surface |
59.3 mm / 2.335 inch |
Depth |
52 mm / 2.047 inch |
Mechanical data
Type of mounting Pluggable module for TOPJOB® S carrier terminal block
Material Data
Flammability class per UL94 |
V0 |
Fire load |
0MJ |
Weight |
59.2g |
Environmental Requirements
Pollution degree |
2 |
Surrounding air (operating) temperature at UN |
-40 … 50 °C |
Surrounding air (storage) temperature |
-40 … 85 °C |
Max. operating altitude |
2000m |
Standards and specifications
Standards/specifications EN 61010-2-201; EN 61373; EN 50121-3-2
Commercial data
Country of origin |
DE |
GTIN |
4055143652001 |
Customs Tariff No. |
85364900990 |
02.05.2019 Page 3/7
