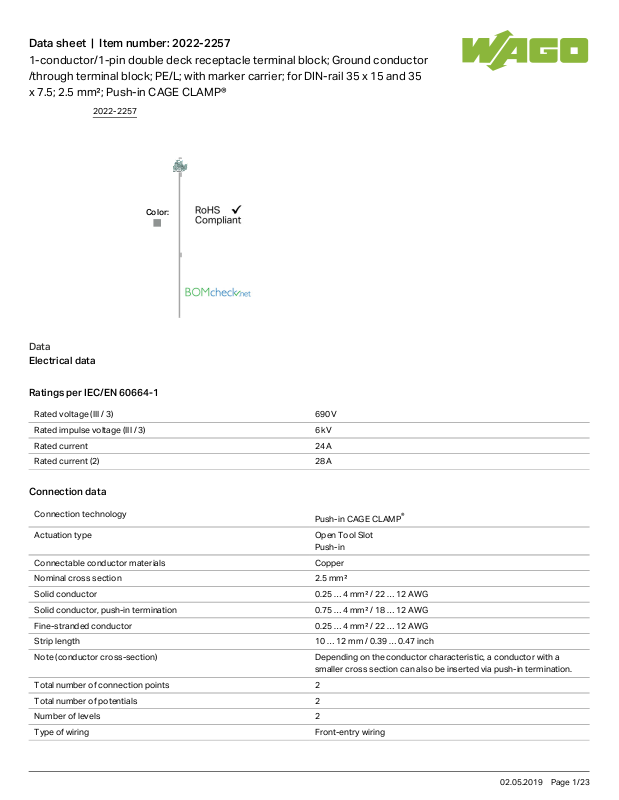

Wago 2022-2257 Data Sheet

Data sheet | Item number:2022-2257
1-conductor/1-pin double deck receptacle terminal block; Ground conductor /through terminal block; PE/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 690 V
Rated impulse voltage (III / 3) 6 kV
Rated current 24 A
Rated current (2) 28 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
2022-2257
02.05.2019Page /1 23
Data sheet | Item number:2022-2257
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 61.4mm/ 2.417inch
Depth 80.1mm/ 3.154inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking PE/L
Marking level Side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.259 MJ
Weight 15.089g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4045454994792
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
CSA
DEKRA Certification B.V.
C22.2 No. 158 70107915
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101201
KEMA/KEUR
DEKRA Certification B.V.
EN 61984 71-
101201
2022-2257
02.05.2019Page /2 23
Data sheet | Item number:2022-2257
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
2022-2257
02.05.2019Page /3 23
Data sheet | Item number:2022-2257
Coding
Item no.: 2022-100
Carrier with 6 coding pins; for coding of female plugs
2022-100
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-284 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-284
Item no.: 216-286 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-286
Female plug
Item no.: 2022-101
1-conductor female plug; 2.5 mm²; 1-pole
2022-101
Item no.: 2022-101/000-006
1-conductor female plug; 1-pole
2022-101
/000-006
Item no.: 2022-101/000-012
1-conductor female plug; 1-pole
2022-101
/000-012
Item no.: 2022-101/000-016
1-conductor female plug; 1-pole
2022-101
/000-016
2022-2257
02.05.2019Page /4 23
Data sheet | Item number:2022-2257
Item no.: 2022-101/122-000
1-conductor female plug; 1-pole
2022-101
/122-000
Item no.: 2022-101/122-006
1-conductor female plug; 1-pole
2022-101
/122-006
Item no.: 2022-101/122-016
1-conductor female plug; 1-pole
2022-101
/122-016
Item no.: 2022-101/132-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-000
Item no.: 2022-101/132-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-006
Item no.: 2022-101/132-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-016
Item no.: 2022-101/142-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-000
Item no.: 2022-101/142-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-006
Item no.: 2022-101/142-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-016
Item no.: 2022-102
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
Item no.: 2022-102/000-006
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-006
Item no.: 2022-102/000-016
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-016
Item no.: 2022-102/122-000
1-conductor female plug; Locking lever; 2.5 mm²; 2-pole
2022-102
/122-000
Item no.: 2022-102/132-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/132-000
Item no.: 2022-102/142-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/142-000
2022-2257
02.05.2019Page /5 23
Data sheet | Item number:2022-2257
Item no.: 2022-103
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
Item no.: 2022-103/000-006
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-006
Item no.: 2022-103/000-016
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-016
Item no.: 2022-103/000-036
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-036
Item no.: 2022-103/000-037
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-037
Item no.: 2022-103/000-038
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-038
Item no.: 2022-103/000-039
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-039
Item no.: 2022-103/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 3-pole
2022-103
/123-000
Item no.: 2022-103/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/133-000
Item no.: 2022-103/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/143-000
Item no.: 2022-104
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
Item no.: 2022-104/000-006
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-006
Item no.: 2022-104/000-016
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-016
Item no.: 2022-104/000-036
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-036
Item no.: 2022-104/000-037
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-037
2022-2257
02.05.2019Page /6 23
Data sheet | Item number:2022-2257
Item no.: 2022-104/000-038
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-038
Item no.: 2022-104/000-039
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-039
Item no.: 2022-104/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 4-pole
2022-104
/123-000
Item no.: 2022-104/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/133-000
Item no.: 2022-104/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/143-000
Item no.: 2022-105
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
Item no.: 2022-105/000-006
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-006
Item no.: 2022-105/000-016
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-016
Item no.: 2022-105/000-036
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-036
Item no.: 2022-105/000-037
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-037
Item no.: 2022-105/000-038
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-038
Item no.: 2022-105/000-039
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-039
Item no.: 2022-105/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 5-pole
2022-105
/123-000
Item no.: 2022-105/134-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/134-000
Item no.: 2022-105/144-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/144-000
2022-2257
02.05.2019Page /7 23
