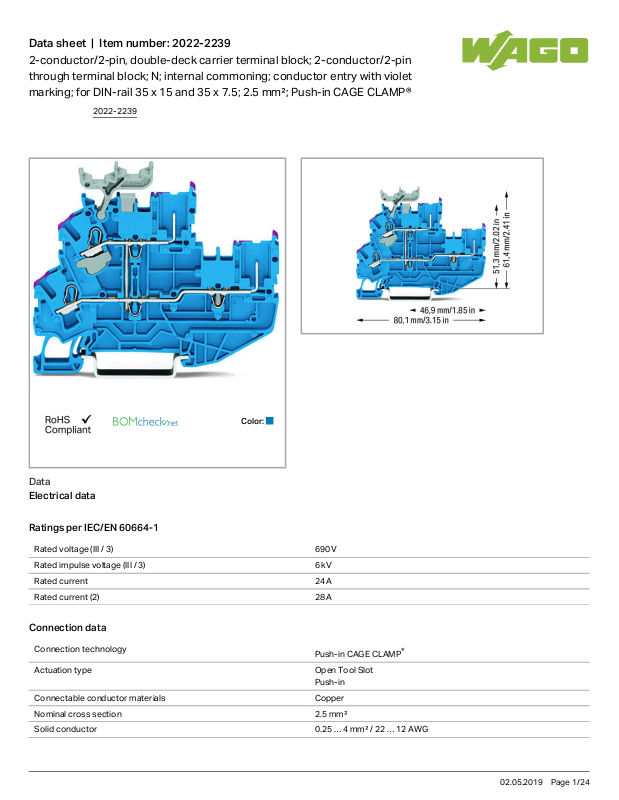

Wago 2022-2239 Data Sheet

Data sheet | Item number:2022-2239

2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin
through terminal block; N; internal commoning; conductor entry with violet
marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 690 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 28 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Open Tool Slot

Push-in

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

2022-2239

02.05.2019Page /1 24

Data sheet | Item number:2022-2239

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 61.4mm/ 2.417inch

Depth 80.1mm/ 3.154inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N

Marking level Side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.264 MJ

Weight 12.762g

Commercial data

Product Group 18 (X-COM-System)

Country of origin DE

GTIN 4045454916589

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7628

2022-2239

02.05.2019Page /2 24

Data sheet | Item number:2022-2239

CSA

DEKRA Certification B.V.

C22.2 No. 158 70107915

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

101201

KEMA/KEUR

DEKRA Certification B.V.

EN 61984 71-

101201

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

2022-2239

02.05.2019Page /3 24

Data sheet | Item number:2022-2239

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

Item no.: 2002-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-005

Item no.: 2002-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-006

Item no.: 2002-404

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

Item no.: 2002-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-005

Item no.: 2002-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-006

Item no.: 2002-405

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

Item no.: 2002-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-005

Item no.: 2002-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-006

Item no.: 2002-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2002-405

/011-000

2022-2239

02.05.2019Page /4 24

Data sheet | Item number:2022-2239

Item no.: 2002-406

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

Item no.: 2002-406/000-005

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

/000-005

Item no.: 2002-406/000-006

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

/000-006

Item no.: 2002-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block

2002-406

/020-000

Item no.: 2002-407

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

Item no.: 2002-407/000-005

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

/000-005

Item no.: 2002-407/000-006

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

/000-006

Item no.: 2002-408

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

Item no.: 2002-408/000-005

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

/000-005

Item no.: 2002-408/000-006

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

/000-006

Item no.: 2002-409

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

Item no.: 2002-409/000-005

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

/000-005

Item no.: 2002-409/000-006

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

/000-006

Item no.: 2002-410

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

Item no.: 2002-410/000-005

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

/000-005

Item no.: 2002-410/000-006

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

/000-006

2022-2239

02.05.2019Page /5 24

Data sheet | Item number:2022-2239

Item no.: 2002-423

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

Item no.: 2002-423/000-005

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

/000-005

Item no.: 2002-423/000-006

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

/000-006

Item no.: 2002-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A

2002-433

Item no.: 2002-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 25 A

2002-434

Item no.: 2002-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 25 A

2002-435

Item no.: 2002-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 25 A

2002-436

Item no.: 2002-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 25 A

2002-437

Item no.: 2002-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 25 A

2002-438

Item no.: 2002-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 25 A

2002-439

Item no.: 2002-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 25 A

2002-440

Item no.: 2002-472
Staggered jumper; insulated; 2-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-472

Item no.: 2002-473
Staggered jumper; insulated; 3-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-473

Item no.: 2002-473/011-000
Ready-made staggered jumper; insulated; 2-way (1-3); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-473

/011-000

Item no.: 2002-474
Staggered jumper; insulated; 4-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-474

Item no.: 2002-475
Staggered jumper; insulated; 5-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-475

Item no.: 2002-475/011-000
Ready-made staggered jumper; insulated; 3-way (1-3-5); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-475

/011-000

Item no.: 2002-476
Staggered jumper; insulated; 6-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-476

2022-2239

02.05.2019Page /6 24

Data sheet | Item number:2022-2239

mounted terminal blocks

Item no.: 2002-477
Staggered jumper; insulated; 7-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-477

Item no.: 2002-477/011-000
Ready-made staggered jumper; insulated; 1-3-5-7; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking

2002-477

/011-000

Item no.: 2002-478
Staggered jumper; insulated; 8-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-478

Item no.: 2002-479
Staggered jumper; insulated; 9-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-479

Item no.: 2002-479/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking

2002-479

/011-000

Item no.: 2002-480
Staggered jumper; insulated; 10-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-480

Item no.: 2002-481
Staggered jumper; insulated; 11-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-481

Item no.: 2002-481/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9-11; Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-481

/011-000

Item no.: 2002-482
Staggered jumper; insulated; 12-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-482

Item no.: 2002-492
Double-deck vertical jumper; insulated

2002-492

Item no.: 2002-492/000-012

Double-deck vertical jumper; insulated

2002-492

/000-012

Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-412

Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-414

Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-416

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

Marking accessories

2022-2239

02.05.2019Page /7 24

Data sheet | Item number:2022-2239

Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-017

Item no.: 2009-115/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-023

Item no.: 2009-115/000-024

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-024

Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

Item no.: 2009-145/000-002

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-002

Item no.: 2009-145/000-005

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-005

Item no.: 2009-145/000-006

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-006

Item no.: 2009-145/000-007

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-007

Item no.: 2009-145/000-012

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-145

/000-012

2022-2239

02.05.2019Page /8 24
