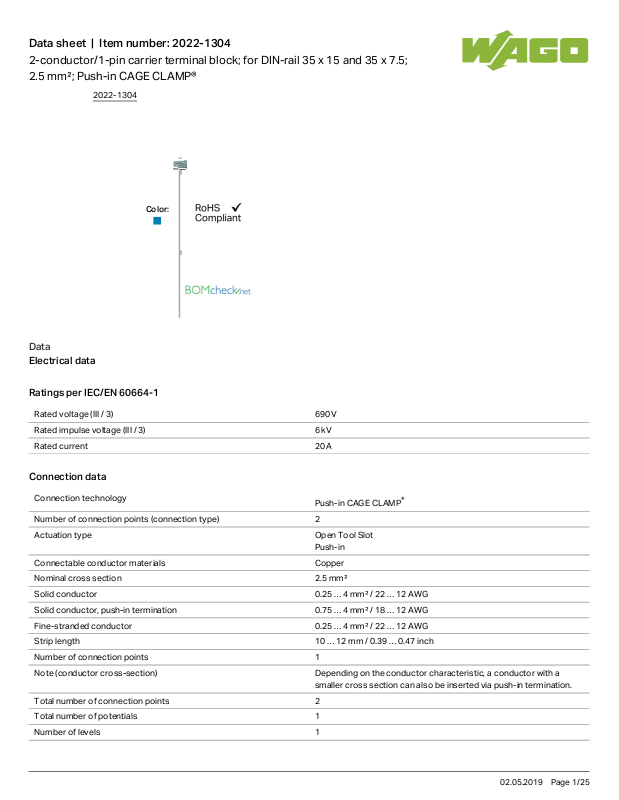

Wago 2022-1304 Data Sheet

Data sheet | Item number:2022-1304
2-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5;
2.5 mm²; Push-in CAGE CLAMP®
Color:

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 690 V
Rated impulse voltage (III / 3) 6 kV
Rated current 20 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Number of connection points 1
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
2022-1304
02.05.2019Page /1 25
Data sheet | Item number:2022-1304
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 59.2mm/ 2.331inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.136 MJ
Weight 6.303g

Commercial data

Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145134
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
CSA
DEKRA Certification B.V.
C22.2 No. 158 70107915
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677-
2022-1304
02.05.2019Page /2 25
Data sheet | Item number:2022-1304
PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Coding
Item no.: 2022-100
Carrier with 6 coding pins; for coding of female plugs
2022-100
Female plug
Item no.: 2022-101
1-conductor female plug; 2.5 mm²; 1-pole
2022-101
Item no.: 2022-101/000-006
1-conductor female plug; 1-pole
2022-101
/000-006
2022-1304
02.05.2019Page /3 25
Data sheet | Item number:2022-1304
Item no.: 2022-101/000-012
1-conductor female plug; 1-pole
2022-101
/000-012
Item no.: 2022-101/000-016
1-conductor female plug; 1-pole
2022-101
/000-016
Item no.: 2022-101/122-000
1-conductor female plug; 1-pole
2022-101
/122-000
Item no.: 2022-101/122-006
1-conductor female plug; 1-pole
2022-101
/122-006
Item no.: 2022-101/122-016
1-conductor female plug; 1-pole
2022-101
/122-016
Item no.: 2022-101/132-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-000
Item no.: 2022-101/132-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-006
Item no.: 2022-101/132-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-016
Item no.: 2022-101/142-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-000
Item no.: 2022-101/142-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-006
Item no.: 2022-101/142-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-016
Item no.: 2022-102
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
Item no.: 2022-102/000-006
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-006
Item no.: 2022-102/000-012
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-012
Item no.: 2022-102/000-016
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-016
2022-1304
02.05.2019Page /4 25
Data sheet | Item number:2022-1304
Item no.: 2022-102/122-000
1-conductor female plug; Locking lever; 2.5 mm²; 2-pole
2022-102
/122-000
Item no.: 2022-102/132-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/132-000
Item no.: 2022-102/142-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/142-000
Item no.: 2022-103
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
Item no.: 2022-103/000-006
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-006
Item no.: 2022-103/000-012
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-012
Item no.: 2022-103/000-016
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-016
Item no.: 2022-103/000-036
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-036
Item no.: 2022-103/000-037
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-037
Item no.: 2022-103/000-038
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-038
Item no.: 2022-103/000-039
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-039
Item no.: 2022-103/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 3-pole
2022-103
/123-000
Item no.: 2022-103/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/133-000
Item no.: 2022-103/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/143-000
Item no.: 2022-104
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
2022-1304
02.05.2019Page /5 25
Data sheet | Item number:2022-1304
Item no.: 2022-104/000-006
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-006
Item no.: 2022-104/000-012
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-012
Item no.: 2022-104/000-016
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-016
Item no.: 2022-104/000-036
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-036
Item no.: 2022-104/000-037
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-037
Item no.: 2022-104/000-038
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-038
Item no.: 2022-104/000-039
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-039
Item no.: 2022-104/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 4-pole
2022-104
/123-000
Item no.: 2022-104/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/133-000
Item no.: 2022-104/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/143-000
Item no.: 2022-105
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
Item no.: 2022-105/000-006
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-006
Item no.: 2022-105/000-012
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-012
Item no.: 2022-105/000-016
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-016
Item no.: 2022-105/000-036
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-036
2022-1304
02.05.2019Page /6 25
Data sheet | Item number:2022-1304
Item no.: 2022-105/000-037
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-037
Item no.: 2022-105/000-038
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-038
Item no.: 2022-105/000-039
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-039
Item no.: 2022-105/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 5-pole
2022-105
/123-000
Item no.: 2022-105/134-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/134-000
Item no.: 2022-105/144-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/144-000
Item no.: 2022-106
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
Item no.: 2022-106/000-006
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-006
Item no.: 2022-106/000-012
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-012
Item no.: 2022-106/000-016
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-016
Item no.: 2022-106/000-036
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-036
Item no.: 2022-106/000-037
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-037
Item no.: 2022-106/000-038
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-038
Item no.: 2022-106/000-039
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-039
Item no.: 2022-106/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 6-pole
2022-106
/123-000
2022-1304
02.05.2019Page /7 25
Data sheet | Item number:2022-1304
Item no.: 2022-106/134-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 6-pole
2022-106
/134-000
Item no.: 2022-106/144-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 6-pole
2022-106
/144-000
Item no.: 2022-107
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
Item no.: 2022-107/000-006
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-006
Item no.: 2022-107/000-012
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-012
Item no.: 2022-107/000-016
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-016
Item no.: 2022-107/000-036
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-036
Item no.: 2022-107/000-037
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-037
Item no.: 2022-107/000-038
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-038
Item no.: 2022-107/000-039
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-039
Item no.: 2022-107/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 7-pole
2022-107
/123-000
Item no.: 2022-107/135-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 7-pole
2022-107
/135-000
Item no.: 2022-107/145-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 7-pole
2022-107
/145-000
Item no.: 2022-108
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
Item no.: 2022-108/000-006
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-006
2022-1304
02.05.2019Page /8 25
