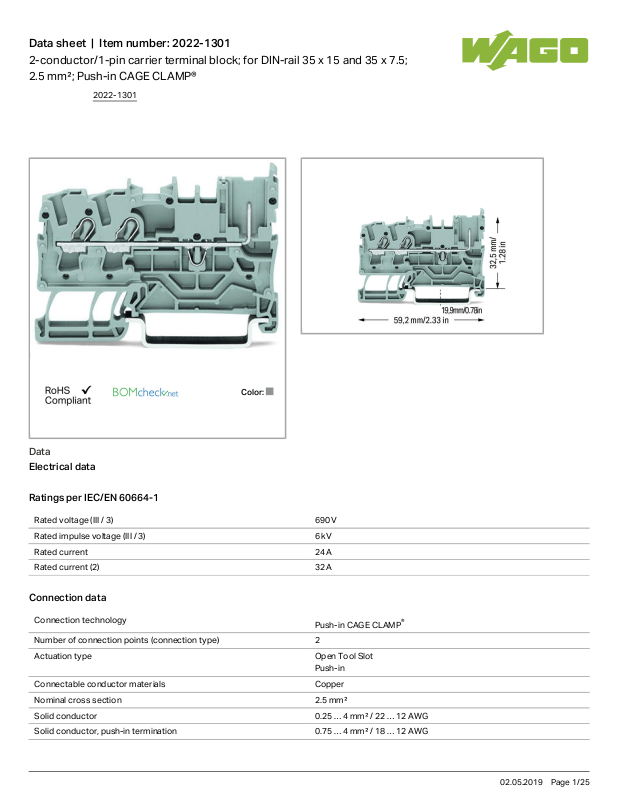

Wago 2022-1301 Data Sheet

Data sheet | Item number:2022-1301

2-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5;

2.5 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 690 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Rated current (2) 32 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Number of connection points (connection type) 2

Actuation type Open Tool Slot

Push-in

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

2022-1301

02.05.2019Page /1 25

Data sheet | Item number:2022-1301

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Number of connection points 1

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch

Depth 59.2mm/ 2.331inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.136 MJ

Weight 6.303g

Commercial data

Product Group 18 (X-COM-System)

Country of origin CN

GTIN 4050821145127

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7628

CSA

C22.2 No. 158 70107915

2022-1301

02.05.2019Page /2 25

Data sheet | Item number:2022-1301

DEKRA Certification B.V.

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Insulation stop

Item no.: 2002-171

2022-1301

02.05.2019Page /3 25

Data sheet | Item number:2022-1301

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip 2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2002-172

Jumper

Item no.: 2002-400

Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A

2002-400

Item no.: 2002-402

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

Item no.: 2002-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-005

Item no.: 2002-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 25 A

2002-402

/000-006

Item no.: 2002-403

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

Item no.: 2002-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-005

Item no.: 2002-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 25 A

2002-403

/000-006

Item no.: 2002-404

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

Item no.: 2002-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-005

Item no.: 2002-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 25 A

2002-404

/000-006

Item no.: 2002-405

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

Item no.: 2002-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-005

Item no.: 2002-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 25 A

2002-405

/000-006

Item no.: 2002-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2002-405

/011-000

2022-1301

02.05.2019Page /4 25

Data sheet | Item number:2022-1301

Item no.: 2002-406

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

Item no.: 2002-406/000-005

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

/000-005

Item no.: 2002-406/000-006

Push-in type jumper bar; insulated; 6-way; Nominal current 25 A

2002-406

/000-006

Item no.: 2002-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block

2002-406

/020-000

Item no.: 2002-407

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

Item no.: 2002-407/000-005

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

/000-005

Item no.: 2002-407/000-006

Push-in type jumper bar; insulated; 7-way; Nominal current 25 A

2002-407

/000-006

Item no.: 2002-408

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

Item no.: 2002-408/000-005

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

/000-005

Item no.: 2002-408/000-006

Push-in type jumper bar; insulated; 8-way; Nominal current 25 A

2002-408

/000-006

Item no.: 2002-409

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

Item no.: 2002-409/000-005

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

/000-005

Item no.: 2002-409/000-006

Push-in type jumper bar; insulated; 9-way; Nominal current 25 A

2002-409

/000-006

Item no.: 2002-410

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

Item no.: 2002-410/000-005

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

/000-005

Item no.: 2002-410/000-006

Push-in type jumper bar; insulated; 10-way; Nominal current 25 A

2002-410

/000-006

2022-1301

02.05.2019Page /5 25

Data sheet | Item number:2022-1301

Item no.: 2002-423

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

Item no.: 2002-423/000-005

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

/000-005

Item no.: 2002-423/000-006

Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A

2002-423

/000-006

Item no.: 2002-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A

2002-433

Item no.: 2002-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 25 A

2002-434

Item no.: 2002-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 25 A

2002-435

Item no.: 2002-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 25 A

2002-436

Item no.: 2002-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 25 A

2002-437

Item no.: 2002-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 25 A

2002-438

Item no.: 2002-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 25 A

2002-439

Item no.: 2002-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 25 A

2002-440

Item no.: 2002-472
Staggered jumper; insulated; 2-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-472

Item no.: 2002-473
Staggered jumper; insulated; 3-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-473

Item no.: 2002-473/011-000
Ready-made staggered jumper; insulated; 2-way (1-3); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-473

/011-000

Item no.: 2002-474
Staggered jumper; insulated; 4-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-474

Item no.: 2002-475
Staggered jumper; insulated; 5-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-475

Item no.: 2002-475/011-000
Ready-made staggered jumper; insulated; 3-way (1-3-5); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-475

/011-000

Item no.: 2002-476
Staggered jumper; insulated; 6-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-476

2022-1301

02.05.2019Page /6 25

Data sheet | Item number:2022-1301

mounted terminal blocks

Item no.: 2002-477
Staggered jumper; insulated; 7-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-477

Item no.: 2002-477/011-000
Ready-made staggered jumper; insulated; 1-3-5-7; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking

2002-477

/011-000

Item no.: 2002-478
Staggered jumper; insulated; 8-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-478

Item no.: 2002-479
Staggered jumper; insulated; 9-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-479

Item no.: 2002-479/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking

2002-479

/011-000

Item no.: 2002-480
Staggered jumper; insulated; 10-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-480

Item no.: 2002-481
Staggered jumper; insulated; 11-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-481

Item no.: 2002-481/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9-11; Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking

2002-481

/011-000

Item no.: 2002-482
Staggered jumper; insulated; 12-way; Nominal current 25 A; suitable for 2002 and 2003 Series rail­mounted terminal blocks

2002-482

Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-412

Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-414

Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-414

/000-005

Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-414

/000-006

Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks

2009-416

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

End plate

2022-1301

02.05.2019Page /7 25

Data sheet | Item number:2022-1301

Item no.: 2022-1391

End and intermediate plate; 1 mm thick

2022-1391

Item no.: 2022-1392

End and intermediate plate; 1 mm thick

2022-1392

Coding

Item no.: 2022-100
Carrier with 6 coding pins; for coding of female plugs

2022-100

tools

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

Female plug

Item no.: 2022-101
1-conductor female plug; 2.5 mm²; 1-pole

2022-101

Item no.: 2022-101/000-006

1-conductor female plug; 1-pole

2022-101

/000-006

Item no.: 2022-101/000-012

1-conductor female plug; 1-pole

2022-101

/000-012

Item no.: 2022-101/000-016

1-conductor female plug; 1-pole

2022-101

/000-016

Item no.: 2022-101/122-000

1-conductor female plug; 1-pole

2022-101

/122-000

Item no.: 2022-101/122-006

1-conductor female plug; 1-pole

2022-101

/122-006

Item no.: 2022-101/122-016

1-conductor female plug; 1-pole

2022-101

/122-016

Item no.: 2022-101/132-000

1-conductor female plug; Strain relief plate; 1-pole

2022-101

/132-000

Item no.: 2022-101/132-006

1-conductor female plug; Strain relief plate; 1-pole

2022-101

/132-006

Item no.: 2022-101/132-016

1-conductor female plug; Strain relief plate; 1-pole

2022-101

/132-016

Item no.: 2022-101/142-000

1-conductor female plug; Strain relief plate; 1-pole

2022-101

/142-000

2022-1301

02.05.2019Page /8 25
