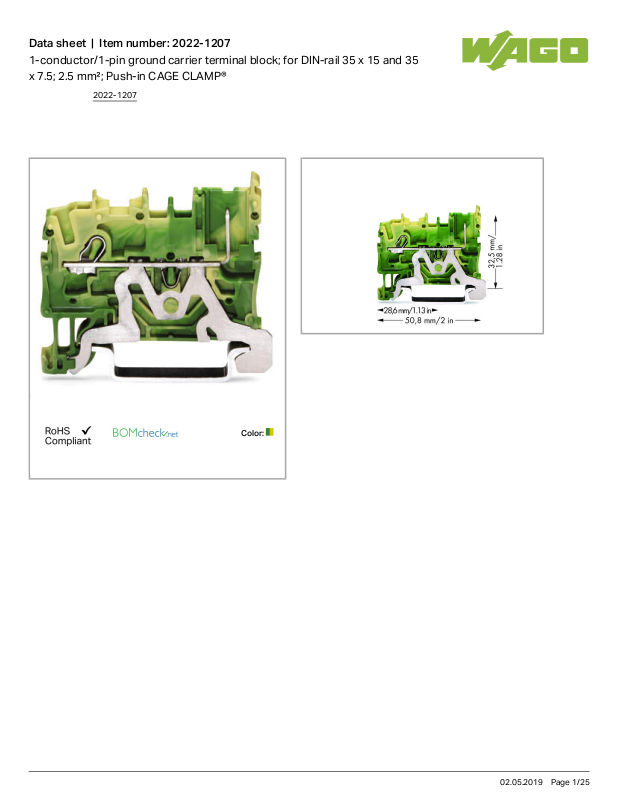

Data sheet | Item number:2022-1207
1-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35
x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
Color:
2022-1207
02.05.2019Page /1 25
Data sheet | Item number:2022-1207
Ground carrier terminal block
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 50.8mm/ 0.2inch
2022-1207
02.05.2019Page /2 25
Data sheet | Item number:2022-1207
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.108 MJ
Weight 7.837g
Commercial data
Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145097
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
CSA
DEKRA Certification B.V.
C22.2 No. 158 70107915
KEMA/KEUR
DEKRA Certification B.V.
EN 61984 71-
101201
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
2022-1207
02.05.2019Page /3 25
Data sheet | Item number:2022-1207
Compatible products
End plate
Item no.: 2022-1291
End and intermediate plate; 1 mm thick
2022-1291
Item no.: 2022-1292
End and intermediate plate; 1 mm thick
2022-1292
Marking accessories
Item no.: 2002-161
Adaptor
2002-161
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-005
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
2022-1207
02.05.2019Page /4 25
Data sheet | Item number:2022-1207
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
2022-1207
02.05.2019Page /5 25
Data sheet | Item number:2022-1207
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
2022-1207
02.05.2019Page /6 25
Data sheet | Item number:2022-1207
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246
2022-1207
02.05.2019Page /7 25
Data sheet | Item number:2022-1207
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-284
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-284
Item no.: 216-286
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-286
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198

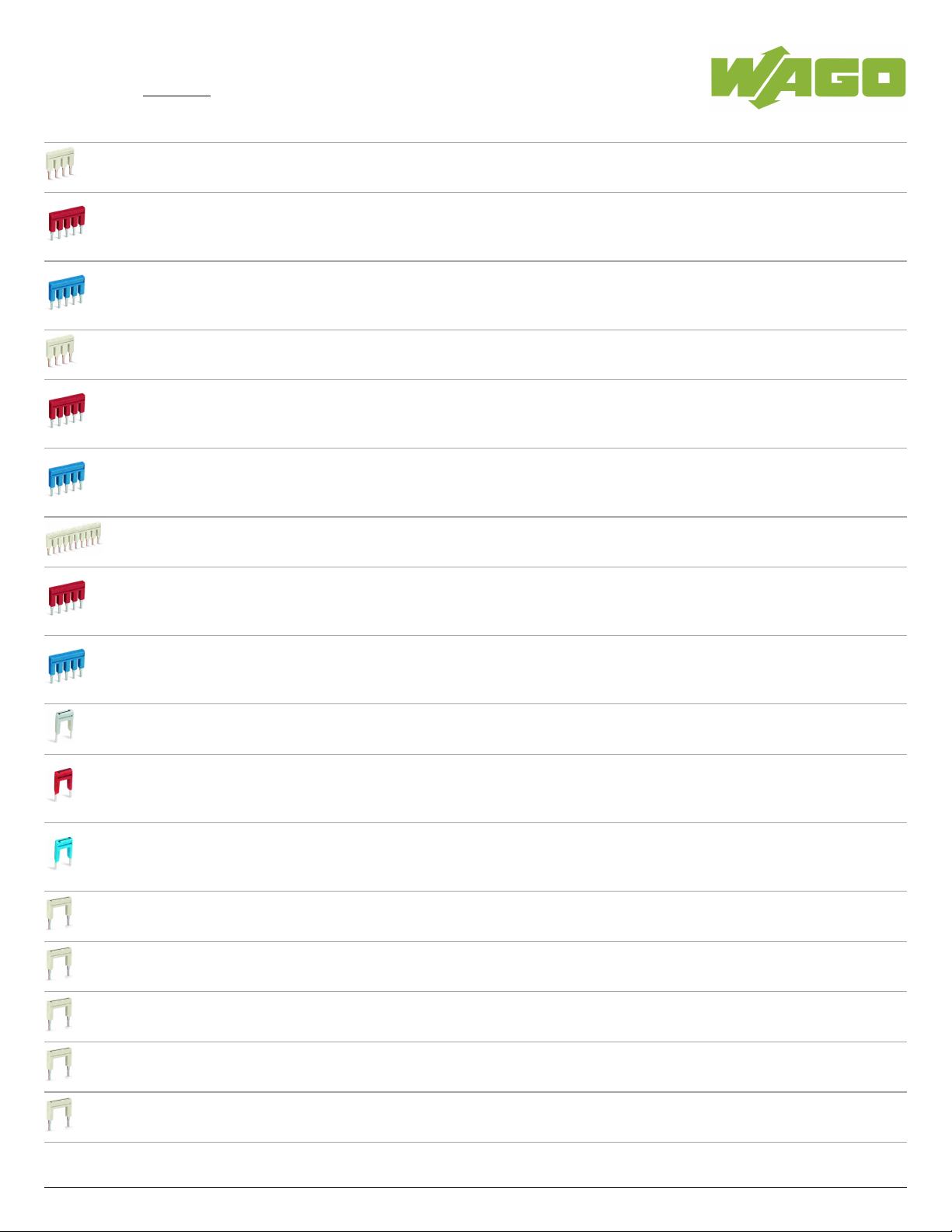

check
Item no.: 2002-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2002-511
Item no.: 2002-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2002-549
Item no.: 2002-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2002-552
2022-1207
02.05.2019Page /8 25
Data sheet | Item number:2022-1207
Item no.: 2002-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2002-553
Item no.: 2002-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2002-554
Item no.: 2002-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2002-555
Item no.: 2002-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2002-556
Item no.: 2002-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2002-557
Item no.: 2002-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2002-558
Item no.: 2002-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2002-559
Item no.: 2002-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2002-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 859-500
Test pin; 1 mm Ø; with solder connection for test wire
859-500
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
2022-1207
02.05.2019Page /9 25
Data sheet | Item number:2022-1207
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-005
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2002-405
/011-000
Item no.: 2002-406
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
Item no.: 2002-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-005
Item no.: 2002-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-006
Item no.: 2002-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2002-406
/020-000
Item no.: 2002-407
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
Item no.: 2002-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-005
Item no.: 2002-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-006
2022-1207
02.05.2019Page /10 25
Data sheet | Item number:2022-1207
Item no.: 2002-408
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
Item no.: 2002-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-005
Item no.: 2002-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-006
Item no.: 2002-409
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
Item no.: 2002-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-005
Item no.: 2002-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-006
Item no.: 2002-410
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
Item no.: 2002-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-005
Item no.: 2002-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-006
Item no.: 2002-423
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
Item no.: 2002-423/000-005
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-005
Item no.: 2002-423/000-006
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-006
Item no.: 2002-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A
2002-433
Item no.: 2002-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 25 A
2002-434
Item no.: 2002-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 25 A
2002-435
Item no.: 2002-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 25 A
2002-436
Item no.: 2002-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 25 A
2002-437
2022-1207
02.05.2019Page /11 25
Data sheet | Item number:2022-1207
Item no.: 2002-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 25 A
2002-438
Item no.: 2002-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 25 A
2002-439
Item no.: 2002-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 25 A
2002-440
Item no.: 2002-472
Staggered jumper; insulated; 2-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-472
Item no.: 2002-473
Staggered jumper; insulated; 3-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-473
Item no.: 2002-473/011-000
Ready-made staggered jumper; insulated; 2-way (1-3); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-473
/011-000
Item no.: 2002-474
Staggered jumper; insulated; 4-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-474
Item no.: 2002-475
Staggered jumper; insulated; 5-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-475
Item no.: 2002-475/011-000
Ready-made staggered jumper; insulated; 3-way (1-3-5); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-475
/011-000
Item no.: 2002-476
Staggered jumper; insulated; 6-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-476
Item no.: 2002-477
Staggered jumper; insulated; 7-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-477
Item no.: 2002-477/011-000
Ready-made staggered jumper; insulated; 1-3-5-7; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-477
/011-000
Item no.: 2002-478
Staggered jumper; insulated; 8-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-478
Item no.: 2002-479
Staggered jumper; insulated; 9-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-479
Item no.: 2002-479/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-479
/011-000
Item no.: 2002-480
Staggered jumper; insulated; 10-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-480
Item no.: 2002-481
Staggered jumper; insulated; 11-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-481
2022-1207
02.05.2019Page /12 25
Data sheet | Item number:2022-1207
Item no.: 2002-481/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9-11; Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-481
/011-000
Item no.: 2002-482
Staggered jumper; insulated; 12-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-482
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-005
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Coding
Item no.: 2022-100
Carrier with 6 coding pins; for coding of female plugs
2022-100
Female plug
Item no.: 2022-101
1-conductor female plug; 2.5 mm²; 1-pole
2022-101
Item no.: 2022-101/000-006
1-conductor female plug; 1-pole
2022-101
/000-006
Item no.: 2022-101/000-012
1-conductor female plug; 1-pole
2022-101
/000-012
Item no.: 2022-101/000-016
1-conductor female plug; 1-pole
2022-101
/000-016
Item no.: 2022-101/122-000
1-conductor female plug; 1-pole
2022-101
/122-000
2022-1207
02.05.2019Page /13 25
Data sheet | Item number:2022-1207
Item no.: 2022-101/122-006
1-conductor female plug; 1-pole
2022-101
/122-006
Item no.: 2022-101/122-016
1-conductor female plug; 1-pole
2022-101
/122-016
Item no.: 2022-101/132-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-000
Item no.: 2022-101/132-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-006
Item no.: 2022-101/132-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/132-016
Item no.: 2022-101/142-000
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-000
Item no.: 2022-101/142-006
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-006
Item no.: 2022-101/142-016
1-conductor female plug; Strain relief plate; 1-pole
2022-101
/142-016
Item no.: 2022-102
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
Item no.: 2022-102/000-006
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-006
Item no.: 2022-102/000-012
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-012
Item no.: 2022-102/000-016
1-conductor female plug; 2.5 mm²; 2-pole
2022-102
/000-016
Item no.: 2022-102/122-000
1-conductor female plug; Locking lever; 2.5 mm²; 2-pole
2022-102
/122-000
Item no.: 2022-102/132-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/132-000
Item no.: 2022-102/142-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 2-pole
2022-102
/142-000
2022-1207
02.05.2019Page /14 25
Data sheet | Item number:2022-1207
Item no.: 2022-103
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
Item no.: 2022-103/000-006
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-006
Item no.: 2022-103/000-012
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-012
Item no.: 2022-103/000-016
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-016
Item no.: 2022-103/000-036
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-036
Item no.: 2022-103/000-037
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-037
Item no.: 2022-103/000-038
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-038
Item no.: 2022-103/000-039
1-conductor female plug; 2.5 mm²; 3-pole
2022-103
/000-039
Item no.: 2022-103/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 3-pole
2022-103
/123-000
Item no.: 2022-103/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/133-000
Item no.: 2022-103/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 3-pole
2022-103
/143-000
Item no.: 2022-104
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
Item no.: 2022-104/000-006
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-006
Item no.: 2022-104/000-012
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-012
Item no.: 2022-104/000-016
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-016
2022-1207
02.05.2019Page /15 25
Data sheet | Item number:2022-1207
Item no.: 2022-104/000-036
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-036
Item no.: 2022-104/000-037
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-037
Item no.: 2022-104/000-038
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-038
Item no.: 2022-104/000-039
1-conductor female plug; 2.5 mm²; 4-pole
2022-104
/000-039
Item no.: 2022-104/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 4-pole
2022-104
/123-000
Item no.: 2022-104/133-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/133-000
Item no.: 2022-104/143-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 4-pole
2022-104
/143-000
Item no.: 2022-105
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
Item no.: 2022-105/000-006
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-006
Item no.: 2022-105/000-012
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-012
Item no.: 2022-105/000-016
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-016
Item no.: 2022-105/000-036
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-036
Item no.: 2022-105/000-037
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-037
Item no.: 2022-105/000-038
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-038
Item no.: 2022-105/000-039
1-conductor female plug; 2.5 mm²; 5-pole
2022-105
/000-039
2022-1207
02.05.2019Page /16 25
Data sheet | Item number:2022-1207
Item no.: 2022-105/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 5-pole
2022-105
/123-000
Item no.: 2022-105/134-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/134-000
Item no.: 2022-105/144-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 5-pole
2022-105
/144-000
Item no.: 2022-106
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
Item no.: 2022-106/000-006
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-006
Item no.: 2022-106/000-012
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-012
Item no.: 2022-106/000-016
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-016
Item no.: 2022-106/000-036
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-036
Item no.: 2022-106/000-037
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-037
Item no.: 2022-106/000-038
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-038
Item no.: 2022-106/000-039
1-conductor female plug; 2.5 mm²; 6-pole
2022-106
/000-039
Item no.: 2022-106/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 6-pole
2022-106
/123-000
Item no.: 2022-106/134-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 6-pole
2022-106
/134-000
Item no.: 2022-106/144-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 6-pole
2022-106
/144-000
Item no.: 2022-107
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
2022-1207
02.05.2019Page /17 25
Data sheet | Item number:2022-1207
Item no.: 2022-107/000-006
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-006
Item no.: 2022-107/000-012
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-012
Item no.: 2022-107/000-016
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-016
Item no.: 2022-107/000-036
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-036
Item no.: 2022-107/000-037
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-037
Item no.: 2022-107/000-038
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-038
Item no.: 2022-107/000-039
1-conductor female plug; 2.5 mm²; 7-pole
2022-107
/000-039
Item no.: 2022-107/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 7-pole
2022-107
/123-000
Item no.: 2022-107/135-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 7-pole
2022-107
/135-000
Item no.: 2022-107/145-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 7-pole
2022-107
/145-000
Item no.: 2022-108
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
Item no.: 2022-108/000-006
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-006
Item no.: 2022-108/000-012
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-012
Item no.: 2022-108/000-016
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-016
Item no.: 2022-108/000-036
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-036
2022-1207
02.05.2019Page /18 25
Data sheet | Item number:2022-1207
Item no.: 2022-108/000-037
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-037
Item no.: 2022-108/000-038
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-038
Item no.: 2022-108/000-039
1-conductor female plug; 2.5 mm²; 8-pole
2022-108
/000-039
Item no.: 2022-108/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 8-pole
2022-108
/123-000
Item no.: 2022-108/135-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 8-pole
2022-108
/135-000
Item no.: 2022-108/145-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 8-pole
2022-108
/145-000
Item no.: 2022-109
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
Item no.: 2022-109/000-006
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-006
Item no.: 2022-109/000-012
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-012
Item no.: 2022-109/000-016
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-016
Item no.: 2022-109/000-036
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-036
Item no.: 2022-109/000-037
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-037
Item no.: 2022-109/000-038
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-038
Item no.: 2022-109/000-039
1-conductor female plug; 2.5 mm²; 9-pole
2022-109
/000-039
Item no.: 2022-109/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 9-pole
2022-109
/123-000
2022-1207
02.05.2019Page /19 25
Data sheet | Item number:2022-1207
Item no.: 2022-109/135-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 9-pole
2022-109
/135-000
Item no.: 2022-109/145-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 9-pole
2022-109
/145-000
Item no.: 2022-110
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
Item no.: 2022-110/000-006
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-006
Item no.: 2022-110/000-012
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-012
Item no.: 2022-110/000-016
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-016
Item no.: 2022-110/000-036
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-036
Item no.: 2022-110/000-037
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-037
Item no.: 2022-110/000-038
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-038
Item no.: 2022-110/000-039
1-conductor female plug; 2.5 mm²; 10-pole
2022-110
/000-039
Item no.: 2022-110/123-000
1-conductor female plug; Locking lever; 2.5 mm²; 10-pole
2022-110
/123-000
Item no.: 2022-110/135-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 10-pole
2022-110
/135-000
Item no.: 2022-110/145-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 10-pole
2022-110
/145-000
Item no.: 2022-111
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
Item no.: 2022-111/000-006
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-006
2022-1207
02.05.2019Page /20 25
Data sheet | Item number:2022-1207
Item no.: 2022-111/000-012
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-012
Item no.: 2022-111/000-016
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-016
Item no.: 2022-111/000-036
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-036
Item no.: 2022-111/000-037
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-037
Item no.: 2022-111/000-038
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-038
Item no.: 2022-111/000-039
1-conductor female plug; 2.5 mm²; 11-pole
2022-111
/000-039
Item no.: 2022-111/126-000
1-conductor female plug; Locking lever; 2.5 mm²; 11-pole
2022-111
/126-000
Item no.: 2022-111/136-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 11-pole
2022-111
/136-000
Item no.: 2022-111/146-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 11-pole
2022-111
/146-000
Item no.: 2022-112
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
Item no.: 2022-112/000-006
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-006
Item no.: 2022-112/000-012
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-012
Item no.: 2022-112/000-016
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-016
Item no.: 2022-112/000-036
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-036
Item no.: 2022-112/000-037
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-037
2022-1207
02.05.2019Page /21 25
Data sheet | Item number:2022-1207
Item no.: 2022-112/000-038
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-038
Item no.: 2022-112/000-039
1-conductor female plug; 2.5 mm²; 12-pole
2022-112
/000-039
Item no.: 2022-112/126-000
1-conductor female plug; Locking lever; 2.5 mm²; 12-pole
2022-112
/126-000
Item no.: 2022-112/136-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 12-pole
2022-112
/136-000
Item no.: 2022-112/146-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 12-pole
2022-112
/146-000
Item no.: 2022-113
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
Item no.: 2022-113/000-006
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-006
Item no.: 2022-113/000-012
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-012
Item no.: 2022-113/000-016
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-016
Item no.: 2022-113/000-036
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-036
Item no.: 2022-113/000-037
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-037
Item no.: 2022-113/000-038
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-038
Item no.: 2022-113/000-039
1-conductor female plug; 2.5 mm²; 13-pole
2022-113
/000-039
Item no.: 2022-113/126-000
1-conductor female plug; Locking lever; 2.5 mm²; 13-pole
2022-113
/126-000
Item no.: 2022-113/136-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 13-pole
2022-113
/136-000
2022-1207
02.05.2019Page /22 25
Data sheet | Item number:2022-1207
Item no.: 2022-113/146-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 13-pole
2022-113
/146-000
Item no.: 2022-114
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
Item no.: 2022-114/000-006
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-006
Item no.: 2022-114/000-012
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-012
Item no.: 2022-114/000-016
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-016
Item no.: 2022-114/000-036
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-036
Item no.: 2022-114/000-037
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-037
Item no.: 2022-114/000-038
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-038
Item no.: 2022-114/000-039
1-conductor female plug; 2.5 mm²; 14-pole
2022-114
/000-039
Item no.: 2022-114/126-000
1-conductor female plug; Locking lever; 2.5 mm²; 14-pole
2022-114
/126-000
Item no.: 2022-114/136-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 14-pole
2022-114
/136-000
Item no.: 2022-114/146-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 14-pole
2022-114
/146-000
Item no.: 2022-115
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
Item no.: 2022-115/000-006
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-006
Item no.: 2022-115/000-012
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-012
2022-1207
02.05.2019Page /23 25
Data sheet | Item number:2022-1207
Item no.: 2022-115/000-016
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-016
Item no.: 2022-115/000-036
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-036
Item no.: 2022-115/000-037
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-037
Item no.: 2022-115/000-038
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-038
Item no.: 2022-115/000-039
1-conductor female plug; 2.5 mm²; 15-pole
2022-115
/000-039
Item no.: 2022-115/127-000
1-conductor female plug; Locking lever; 2.5 mm²; 15-pole
2022-115
/127-000
Item no.: 2022-115/137-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 15-pole
2022-115
/137-000
Item no.: 2022-115/147-000
1-conductor female plug; Strain relief plate; 2.5 mm²; 15-pole
2022-115
/147-000
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2002-115
General accessories
Item no.: 2022-161
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-161
Item no.: 2022-162
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-162
Item no.: 2022-164
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-164
Item no.: 2022-167
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-167
Item no.: 2022-171
Center module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-171
Item no.: 2022-172
Center module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-172
Item no.: 2022-174
Center module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-174
Item no.: 2022-177
2022-1207
02.05.2019Page /24 25
Data sheet | Item number:2022-1207
Item no.: 2022-177
Center module for 1-conductor female connector; 2.5 mm²; 1-pole 2022-177
Item no.: 2022-181
End module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-181
Item no.: 2022-182
End module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-182
Item no.: 2022-184
End module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-184
Item no.: 2022-187
End module for 1-conductor female connector; 2.5 mm²; 1-pole
2022-187
Downloads
Documentation
Bid Text
2022-1207 docx
15.5 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2022-1207 URL Download
Product family
X-COM S
Show all products from the family
2022-1207
Subject to changes.
02.05.2019Page /25 25
Loading...
