Wago 2022-1204 Data Sheet

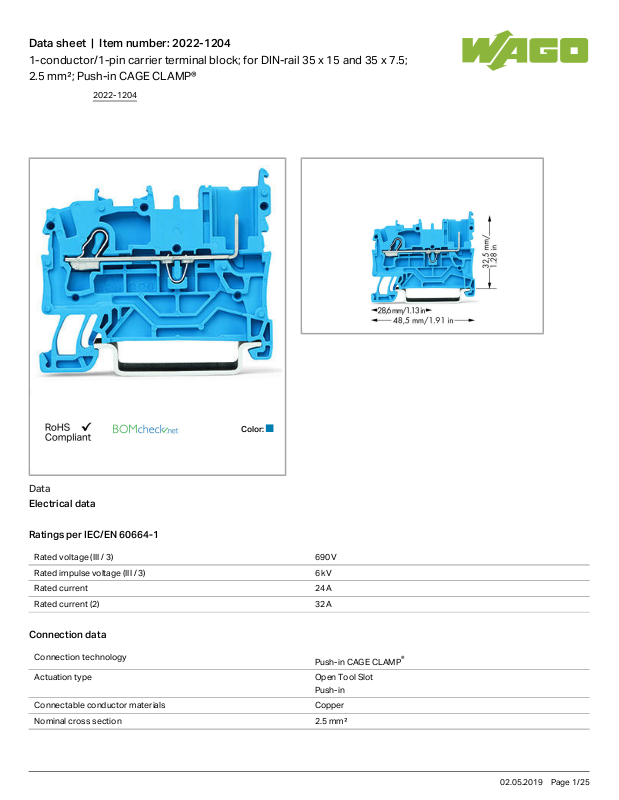

Data sheet | Item number:2022-1204
1-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5;
2.5 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 690 V
Rated impulse voltage (III / 3) 6 kV
Rated current 24 A
Rated current (2) 32 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 2.5mm²
2022-1204
02.05.2019Page /1 25
Data sheet | Item number:2022-1204
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.112 MJ
Weight 5.038g
Commercial data
Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145073
Customs Tariff No. 85366990990
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
2022-1204
02.05.2019Page /2 25
Data sheet | Item number:2022-1204
CSA
DEKRA Certification B.V.
C22.2 No. 158 70107915
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
check
Item no.: 2002-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2002-511
Item no.: 2002-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2002-549
Item no.: 2002-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2002-552
Item no.: 2002-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2002-553
Item no.: 2002-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2002-554
Item no.: 2002-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2002-555
Item no.: 2002-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2002-556
Item no.: 2002-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2002-557
Item no.: 2002-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2002-558
2022-1204
02.05.2019Page /3 25
Data sheet | Item number:2022-1204
Item no.: 2002-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2002-559
Item no.: 2002-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2002-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 859-500
Test pin; 1 mm Ø; with solder connection for test wire
859-500
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-005
2022-1204
02.05.2019Page /4 25
Data sheet | Item number:2022-1204
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2002-405
/011-000
Item no.: 2002-406
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
Item no.: 2002-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-005
Item no.: 2002-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-006
Item no.: 2002-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2002-406
/020-000
Item no.: 2002-407
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
Item no.: 2002-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-005
Item no.: 2002-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-006
Item no.: 2002-408
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
Item no.: 2002-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-005
Item no.: 2002-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-006
Item no.: 2002-409
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
Item no.: 2002-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-005
Item no.: 2002-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 25 A
2002-409
/000-006
Item no.: 2002-410
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
2022-1204
02.05.2019Page /5 25
Data sheet | Item number:2022-1204
Item no.: 2002-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-005
Item no.: 2002-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 25 A
2002-410
/000-006
Item no.: 2002-423
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
Item no.: 2002-423/000-005
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-005
Item no.: 2002-423/000-006
Adjacent jumper for continuous commoning; insulated; from 1 to 3; Nominal current 25 A
2002-423
/000-006
Item no.: 2002-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A
2002-433
Item no.: 2002-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 25 A
2002-434
Item no.: 2002-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 25 A
2002-435
Item no.: 2002-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 25 A
2002-436
Item no.: 2002-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 25 A
2002-437
Item no.: 2002-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 25 A
2002-438
Item no.: 2002-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 25 A
2002-439
Item no.: 2002-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 25 A
2002-440
Item no.: 2002-472
Staggered jumper; insulated; 2-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-472
Item no.: 2002-473
Staggered jumper; insulated; 3-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-473
Item no.: 2002-473/011-000
Ready-made staggered jumper; insulated; 2-way (1-3); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-473
/011-000
Item no.: 2002-474
Staggered jumper; insulated; 4-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-474
Item no.: 2002-475
Staggered jumper; insulated; 5-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-475
2022-1204
02.05.2019Page /6 25
Data sheet | Item number:2022-1204
mounted terminal blocks
Item no.: 2002-475/011-000
Ready-made staggered jumper; insulated; 3-way (1-3-5); Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-475
/011-000
Item no.: 2002-476
Staggered jumper; insulated; 6-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-476
Item no.: 2002-477
Staggered jumper; insulated; 7-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-477
Item no.: 2002-477/011-000
Ready-made staggered jumper; insulated; 1-3-5-7; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-477
/011-000
Item no.: 2002-478
Staggered jumper; insulated; 8-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-478
Item no.: 2002-479
Staggered jumper; insulated; 9-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-479
Item no.: 2002-479/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9; Nominal current 25 A; with contact lugs broken
off at the factory and circuit marking
2002-479
/011-000
Item no.: 2002-480
Staggered jumper; insulated; 10-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-480
Item no.: 2002-481
Staggered jumper; insulated; 11-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-481
Item no.: 2002-481/011-000
Ready-made staggered jumper; insulated; 1-3-5-7-9-11; Nominal current 25 A; with contact lugs
broken off at the factory and circuit marking
2002-481
/011-000
Item no.: 2002-482
Staggered jumper; insulated; 12-way; Nominal current 25 A; suitable for 2002 and 2003 Series railmounted terminal blocks
2002-482
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-005
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-416
2022-1204
02.05.2019Page /7 25
Data sheet | Item number:2022-1204
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-246
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-284
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-284
Item no.: 216-286
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-286
General accessories
Item no.: 2022-161
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-161
Item no.: 2022-162
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-162
Item no.: 2022-164
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-164
Item no.: 2022-167
Start module for 1-conductor female connector; with integrated end plate; 2.5 mm²; 1-pole
2022-167
Item no.: 2022-171
2022-1204
02.05.2019Page /8 25
Loading...
