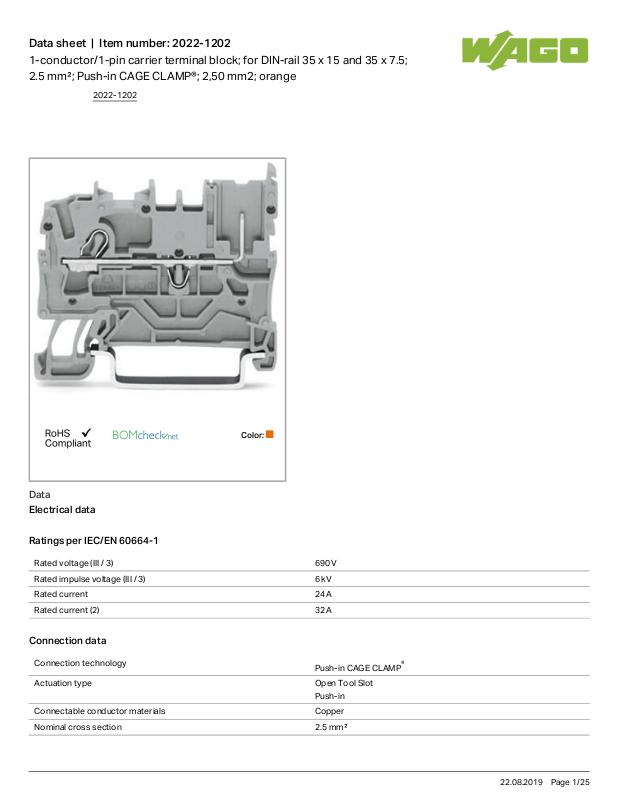

Data sheet | Item number:2022-1202
1-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5;
2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm2; orange
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 690 V
Rated impulse voltage (III / 3) 6 kV
Rated current 24 A
Rated current (2) 32 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 2.5mm²
2022-1202
22.08.2019Page /1 25
Data sheet | Item number:2022-1202
Solid conductor 0.25 4mm²/ 22 12AWG
Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG
Fine-stranded conductor 0.25 4mm²/ 22 12AWG
Strip length 10 12mm/ 0.39 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.112 MJ
Weight 5.038g
Commercial data
Product Group 18 (X-COM-System)
GTIN 4050821145066
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
CSA
DEKRA Certification B.V.
C22.2 No. 158 70107915
2022-1202
22.08.2019Page /2 25
Data sheet | Item number:2022-1202
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7628
CSA
DEKRA Certification B.V.
C22.2 No. 158 2437422
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
