Wago 2020-5477 Data Sheet

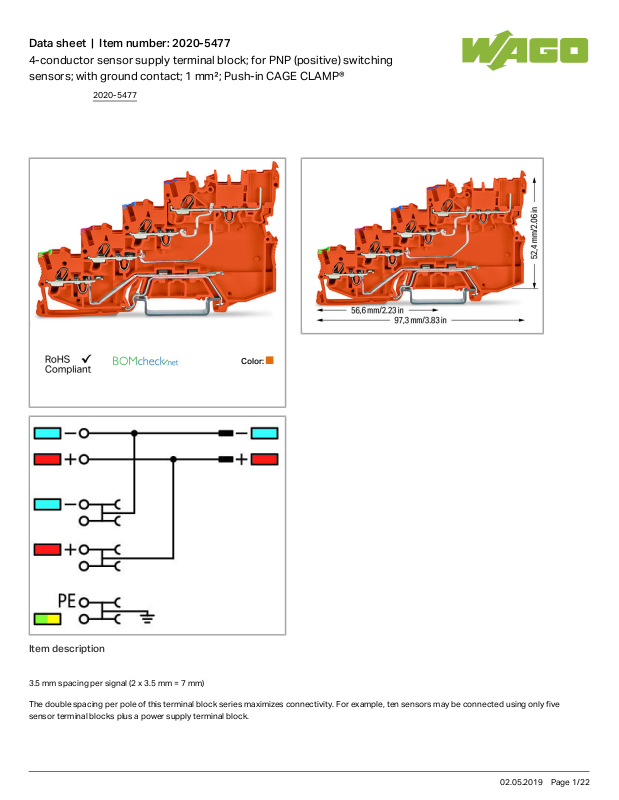

Data sheet | Item number:2020-5477
4-conductor sensor supply terminal block; for PNP (positive) switching sensors; with ground contact; 1 mm²; Push-in CAGE CLAMP®
Color:

Item description

3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
2020-5477
02.05.2019Page /1 22
Data sheet | Item number:2020-5477
Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 8
Total number of potentials 5
Type of wiring Front-entry wiring

Geometrical Data

Width 7mm/ 0.276inch
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
Depth 97.3mm/ 3.831inch
2020-5477
02.05.2019Page /2 22
Data sheet | Item number:2020-5477
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 21.504g

Commercial data

Country of origin DE
GTIN 4055143525510
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172
2020-5477
02.05.2019Page /3 22
Data sheet | Item number:2020-5477

Compatible products

Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
General accessories
Item no.: 2000-121
Adaptor
2000-121
2020-5477
02.05.2019Page /4 22
Data sheet | Item number:2020-5477
Item no.: 2020-161
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-161
Item no.: 2020-164
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-164
Item no.: 2020-167
Start module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-167
Item no.: 2020-181
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-181
Item no.: 2020-184
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-184
Item no.: 2020-187
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-187
Item no.: 2020-261
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-261
Item no.: 2020-264
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-264
Item no.: 2020-267
Start module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-267
Item no.: 2020-281
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-281
Item no.: 2020-284
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-284
Item no.: 2020-287
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-287
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-007
2020-5477
02.05.2019Page /5 22
Data sheet | Item number:2020-5477
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type
793-3501
End plate
Item no.: 2020-5491
End and intermediate plate; 1 mm thick; for 4-conductor terminal blocks
2020-
5491
Coding
Item no.: 2020-100
Carrier with 6 coding pins; for coding of female plugs; for carrier terminal blocks
2020-100
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
2020-5477
02.05.2019Page /6 22
Data sheet | Item number:2020-5477
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
2020-5477
02.05.2019Page /7 22
