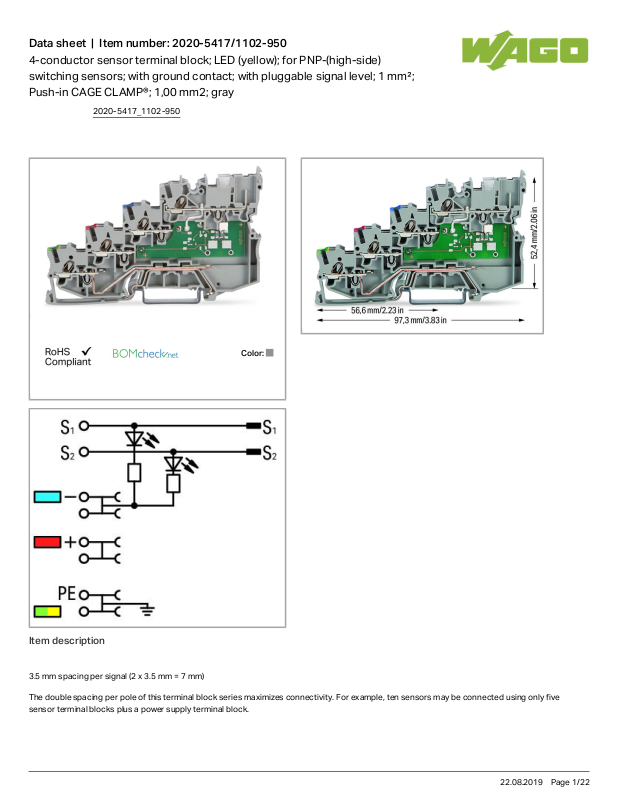

Data sheet | Item number:2020-5417/1102-950
4-conductor sensor terminal block; LED (yellow); for PNP-(high-side) switching sensors; with ground contact; with pluggable signal level; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm2; gray
Item description
3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
2020-5417_1102-950
22.08.2019Page /1 22
Data sheet | Item number:2020-5417/1102-950
Data
Electrical data
Voltage type (1) DC
Nominal voltage 24 V
Ratings per IEC/EN 60664-1
Rated current 13.5 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Approvals per CSA
Rated voltage CSA (Use Group C) 24 V
Rated current CSA (Use Group C) 10 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 8
Total number of potentials 5
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 7mm/ 0.276inch
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
2020-5417_1102-950
22.08.2019Page /2 22
Data sheet | Item number:2020-5417/1102-950
Depth 97.3mm/ 3.831inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Weight 22.378g
Commercial data
Country of origin DE
GTIN 4055143528634
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
2020-5417_1102-950
22.08.2019Page /3 22
Data sheet | Item number:2020-5417/1102-950
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
