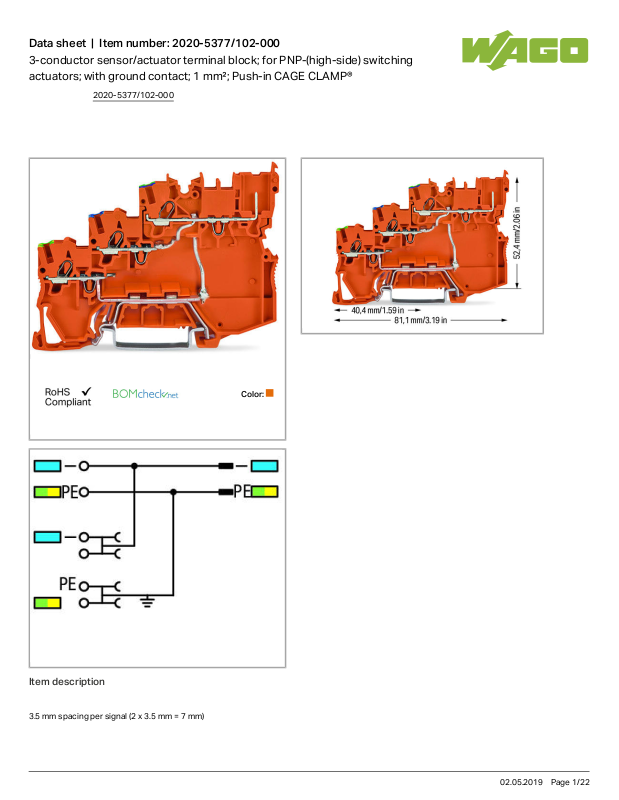

Data sheet | Item number:2020-5377/102-000
3-conductor sensor/actuator terminal block; for PNP-(high-side) switching actuators; with ground contact; 1 mm²; Push-in CAGE CLAMP®
Color:

Item description

3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
2020-5377/102-000
02.05.2019Page /1 22
Data sheet | Item number:2020-5377/102-000
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 6
Total number of potentials 4
Type of wiring Front-entry wiring

Geometrical Data

Width 7mm/ 0.276inch
2020-5377/102-000
02.05.2019Page /2 22
Data sheet | Item number:2020-5377/102-000
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
Depth 81.1mm/ 3.193inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 18.384g

Commercial data

Country of origin DE
GTIN 4055143523844
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
2020-5377/102-000
02.05.2019Page /3 22
Data sheet | Item number:2020-5377/102-000
UL
Underwriters Laboratories Inc.
UL 1059 E45172
