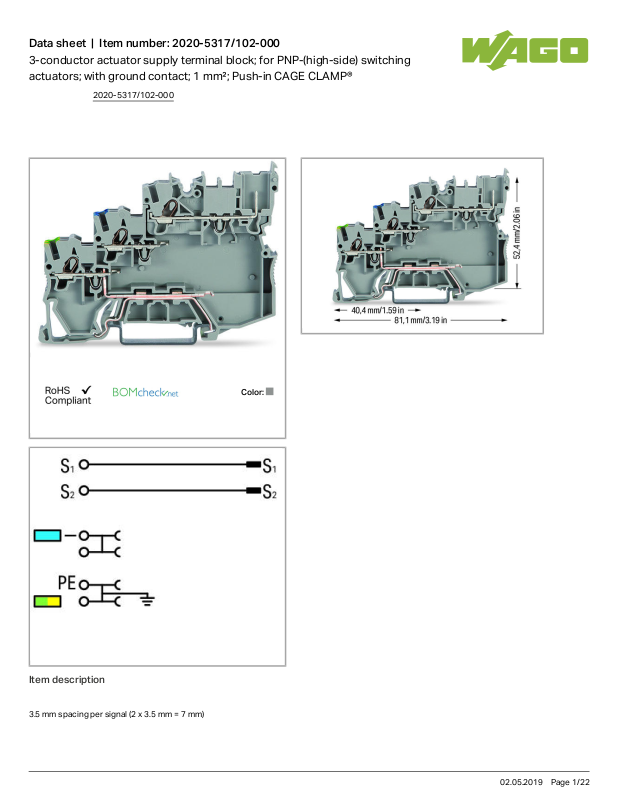

Wago 2020-5317/102-000 Data Sheet

Data sheet | Item number:2020-5317/102-000
3-conductor actuator supply terminal block; for PNP-(high-side) switching actuators; with ground contact; 1 mm²; Push-in CAGE CLAMP®
Color:

Item description

3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
2020-5317/102-000
02.05.2019Page /1 22
Data sheet | Item number:2020-5317/102-000
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 6
Total number of potentials 4
Type of wiring Front-entry wiring
2020-5317/102-000
02.05.2019Page /2 22
Data sheet | Item number:2020-5317/102-000

Geometrical Data

Width 7mm/ 0.276inch
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
Depth 81.1mm/ 3.193inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 17.376g

Commercial data

Country of origin DE
GTIN 4055143523738
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
2020-5317/102-000
02.05.2019Page /3 22
Data sheet | Item number:2020-5317/102-000
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-005
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-006
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-005
2020-5317/102-000
02.05.2019Page /4 22
Data sheet | Item number:2020-5317/102-000
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-005
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-006
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2000-406
/020-000
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-005
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
2020-5317/102-000
02.05.2019Page /5 22
Data sheet | Item number:2020-5317/102-000
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-006
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A
2000-434
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A
2000-440
Item no.: 2009-402 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-404
Item no.: 2009-406
2020-5317/102-000
02.05.2019Page /6 22
Data sheet | Item number:2020-5317/102-000
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
End plate
Item no.: 2020-5391
End and intermediate plate; 1 mm thick; for 3-conductor terminal blocks
2020-
5391
Protective Warning Marker
Item no.: 2000-115 Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
Female plug
Item no.: 2020-102 1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103 1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
2020-5317/102-000
02.05.2019Page /7 22
