Wago 2020-5311 Data Sheet

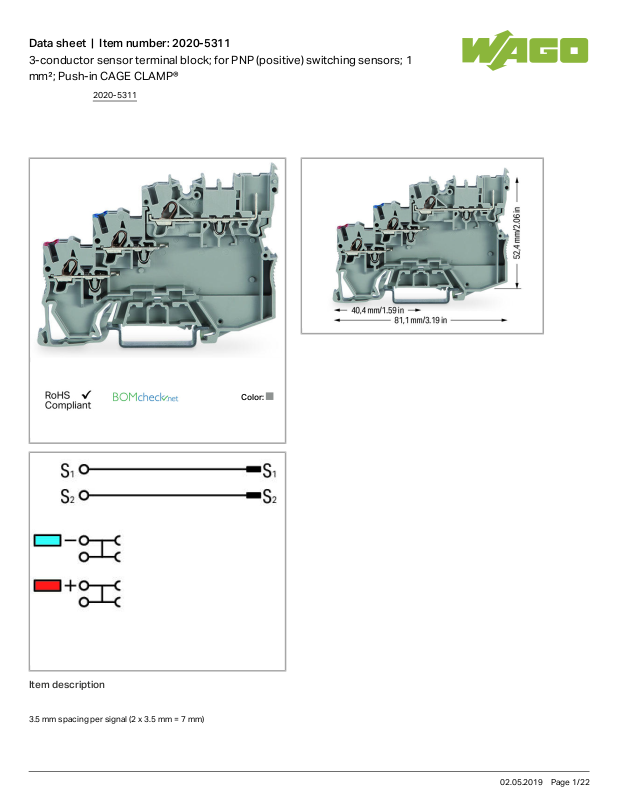

Data sheet | Item number:2020-5311
3-conductor sensor terminal block; for PNP (positive) switching sensors; 1 mm²; Push-in CAGE CLAMP®
Color:

Item description

3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)
2020-5311
02.05.2019Page /1 22
Data sheet | Item number:2020-5311
The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group C) 300 V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 6
Total number of potentials 4
Type of wiring Front-entry wiring
2020-5311
02.05.2019Page /2 22
Data sheet | Item number:2020-5311

Geometrical Data

Width 7mm/ 0.276inch
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
Depth 81.1mm/ 3.193inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 14.89g

Commercial data

Country of origin DE
GTIN 4055143523509
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
2020-5311
02.05.2019Page /3 22
Data sheet | Item number:2020-5311
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Coding
Item no.: 2020-100
Carrier with 6 coding pins; for coding of female plugs; for carrier terminal blocks
2020-100
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
2020-5311
02.05.2019Page /4 22
Data sheet | Item number:2020-5311
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
2020-5311
02.05.2019Page /5 22
Data sheet | Item number:2020-5311
Item no.: 2020-105/000-037
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-037
Item no.: 2020-105/000-038
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-038
Item no.: 2020-105/000-039
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-039
Item no.: 2020-105/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 5-pole
2020-105
/124-000
Item no.: 2020-105/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/133-000
Item no.: 2020-105/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/143-000
Item no.: 2020-106
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
Item no.: 2020-106/000-036
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-036
Item no.: 2020-106/000-037
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-037
Item no.: 2020-106/000-038
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-038
Item no.: 2020-106/000-039
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-039
Item no.: 2020-106/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 6-pole
2020-106
/124-000
Item no.: 2020-106/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/133-000
Item no.: 2020-106/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/143-000
Item no.: 2020-107
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
2020-5311
02.05.2019Page /6 22
Data sheet | Item number:2020-5311
Item no.: 2020-107/000-036
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-036
Item no.: 2020-107/000-037
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-037
Item no.: 2020-107/000-038
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-038
Item no.: 2020-107/000-039
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-039
Item no.: 2020-107/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 7-pole
2020-107
/124-000
Item no.: 2020-107/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/134-000
Item no.: 2020-107/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/144-000
Item no.: 2020-108
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
Item no.: 2020-108/000-036
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-036
Item no.: 2020-108/000-037
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-037
Item no.: 2020-108/000-038
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-038
Item no.: 2020-108/000-039
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-039
Item no.: 2020-108/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 8-pole
2020-108
/124-000
Item no.: 2020-108/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/134-000
Item no.: 2020-108/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/144-000
2020-5311
02.05.2019Page /7 22
