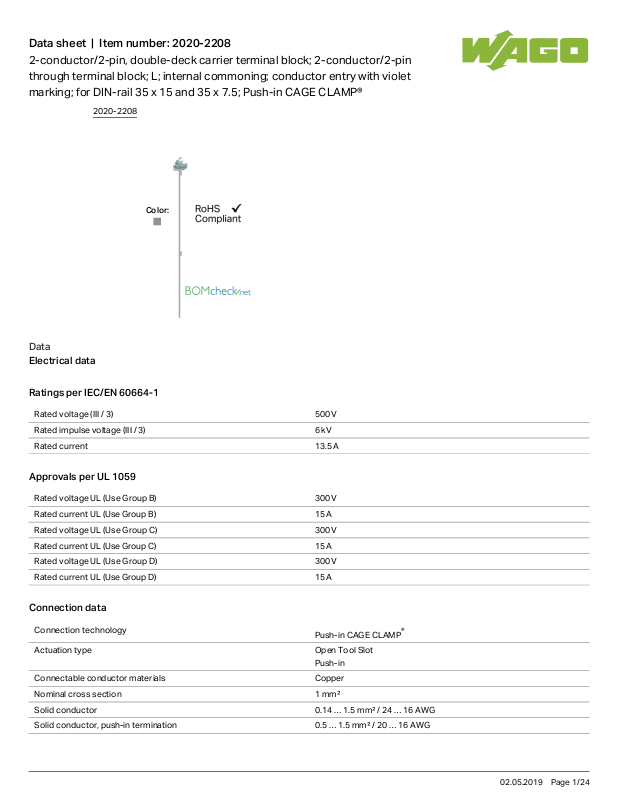

Data sheet | Item number:2020-2208
2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
2020-2208
02.05.2019Page /1 24
Data sheet | Item number:2020-2208
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 51.3mm/ 2.02inch
Depth 80.1mm/ 3.154inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking L
Marking level Side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.191 MJ
Weight 8.796g

Commercial data

Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821049531
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
C22.2 No. 158 2516073
2020-2208
02.05.2019Page /2 24
Data sheet | Item number:2020-2208
DEKRA Certification B.V.
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172
2020-2208
02.05.2019Page /3 24
Data sheet | Item number:2020-2208

Compatible products

Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-162 Steel carrier rail; 35 x 7.5 mm; slotted; 1 mm thick
210-162
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
General accessories
Item no.: 2000-121
Adaptor
2000-121
Item no.: 2020-161
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-161
Item no.: 2020-164
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-164
Item no.: 2020-167
Start module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-167
2020-2208
02.05.2019Page /4 24
Data sheet | Item number:2020-2208
Item no.: 2020-181
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-181
Item no.: 2020-184
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-184
Item no.: 2020-187
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-187
Item no.: 2020-261
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-261
Item no.: 2020-264
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-264
Item no.: 2020-267
Start module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-267
Item no.: 2020-281
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-281
Item no.: 2020-284
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-284
Item no.: 2020-287
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-287
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-012
2020-2208
02.05.2019Page /5 24
Data sheet | Item number:2020-2208
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-024
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type
793-3501
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
2020-2208
02.05.2019Page /6 24
Data sheet | Item number:2020-2208
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
Item no.: 2020-105/000-037
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-037
Item no.: 2020-105/000-038
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-038
Item no.: 2020-105/000-039
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-039
Item no.: 2020-105/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 5-pole
2020-105
/124-000
2020-2208
02.05.2019Page /7 24
Data sheet | Item number:2020-2208
Item no.: 2020-105/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/133-000
Item no.: 2020-105/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/143-000
Item no.: 2020-106
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
Item no.: 2020-106/000-036
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-036
Item no.: 2020-106/000-037
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-037
Item no.: 2020-106/000-038
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-038
Item no.: 2020-106/000-039
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-039
Item no.: 2020-106/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 6-pole
2020-106
/124-000
Item no.: 2020-106/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/133-000
Item no.: 2020-106/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/143-000
Item no.: 2020-107
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
Item no.: 2020-107/000-036
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-036
Item no.: 2020-107/000-037
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-037
Item no.: 2020-107/000-038
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-038
Item no.: 2020-107/000-039
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-039
2020-2208
02.05.2019Page /8 24
Data sheet | Item number:2020-2208
Item no.: 2020-107/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 7-pole
2020-107
/124-000
Item no.: 2020-107/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/134-000
Item no.: 2020-107/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/144-000
Item no.: 2020-108
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
Item no.: 2020-108/000-036
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-036
Item no.: 2020-108/000-037
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-037
Item no.: 2020-108/000-038
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-038
Item no.: 2020-108/000-039
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-039
Item no.: 2020-108/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 8-pole
2020-108
/124-000
Item no.: 2020-108/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/134-000
Item no.: 2020-108/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/144-000
Item no.: 2020-109
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
Item no.: 2020-109/000-036
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-036
Item no.: 2020-109/000-037
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-037
Item no.: 2020-109/000-038
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-038
2020-2208
02.05.2019Page /9 24
Data sheet | Item number:2020-2208
Item no.: 2020-109/000-039
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-039
Item no.: 2020-109/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 9-pole
2020-109
/124-000
Item no.: 2020-109/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/134-000
Item no.: 2020-109/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/144-000
Item no.: 2020-110
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
Item no.: 2020-110/000-036
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-036
Item no.: 2020-110/000-037
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-037
Item no.: 2020-110/000-038
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-038
Item no.: 2020-110/000-039
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-039
Item no.: 2020-110/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 10-pole
2020-110
/125-000
Item no.: 2020-110/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/135-000
Item no.: 2020-110/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/145-000
Item no.: 2020-111
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
Item no.: 2020-111/000-036
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-036
Item no.: 2020-111/000-037
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-037
2020-2208
02.05.2019Page /10 24
Data sheet | Item number:2020-2208
Item no.: 2020-111/000-038
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-038
Item no.: 2020-111/000-039
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-039
Item no.: 2020-111/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 11-pole
2020-111
/125-000
Item no.: 2020-111/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 11-pole
2020-111
/135-000
Item no.: 2020-111/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 11-pole
2020-111
/145-000
Item no.: 2020-112
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
Item no.: 2020-112/000-036
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-036
Item no.: 2020-112/000-037
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-037
Item no.: 2020-112/000-038
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-038
Item no.: 2020-112/000-039
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-039
Item no.: 2020-112/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 12-pole
2020-112
/125-000
Item no.: 2020-112/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 12-pole
2020-112
/135-000
Item no.: 2020-112/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 12-pole
2020-112
/145-000
Item no.: 2020-113
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
Item no.: 2020-113/000-036
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-036
2020-2208
02.05.2019Page /11 24
Data sheet | Item number:2020-2208
Item no.: 2020-113/000-037
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-037
Item no.: 2020-113/000-038
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-038
Item no.: 2020-113/000-039
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-039
Item no.: 2020-113/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 13-pole
2020-113
/125-000
Item no.: 2020-113/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 13-pole
2020-113
/135-000
Item no.: 2020-113/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 13-pole
2020-113
/145-000
Item no.: 2020-114
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
Item no.: 2020-114/000-036
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-036
Item no.: 2020-114/000-037
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-037
Item no.: 2020-114/000-038
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-038
Item no.: 2020-114/000-039
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-039
Item no.: 2020-114/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 14-pole
2020-114
/125-000
Item no.: 2020-114/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 14-pole
2020-114
/135-000
Item no.: 2020-114/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 14-pole
2020-114
/145-000
Item no.: 2020-115
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
2020-2208
02.05.2019Page /12 24
Data sheet | Item number:2020-2208
Item no.: 2020-115/000-036
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-036
Item no.: 2020-115/000-037
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-037
Item no.: 2020-115/000-038
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-038
Item no.: 2020-115/000-039
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-039
Item no.: 2020-115/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 15-pole
2020-115
/125-000
Item no.: 2020-115/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 15-pole
2020-115
/135-000
Item no.: 2020-115/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 15-pole
2020-115
/145-000
Item no.: 2020-202
2-conductor female connector; 1.5 mm²; 2-pole
2020-202
Item no.: 2020-202/122-000
2-conductor female connector; Locking lever; 1.5 mm²; 2-pole
2020-202
/122-000
Item no.: 2020-202/132-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 2-pole
2020-202
/132-000
Item no.: 2020-202/142-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 2-pole
2020-202
/142-000
Item no.: 2020-203
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
Item no.: 2020-203/000-036
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-036
Item no.: 2020-203/000-037
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-037
Item no.: 2020-203/000-038
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-038
2020-2208
02.05.2019Page /13 24
Data sheet | Item number:2020-2208
Item no.: 2020-203/000-039
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-039
Item no.: 2020-203/122-000
2-conductor female connector; Locking lever; 1.5 mm²; 3-pole
2020-203
/122-000
Item no.: 2020-203/132-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 3-pole
2020-203
/132-000
Item no.: 2020-203/142-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 3-pole
2020-203
/142-000
Item no.: 2020-204
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
Item no.: 2020-204/000-036
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-036
Item no.: 2020-204/000-037
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-037
Item no.: 2020-204/000-038
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-038
Item no.: 2020-204/000-039
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-039
Item no.: 2020-204/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 4-pole
2020-204
/124-000
Item no.: 2020-204/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 4-pole
2020-204
/133-000
Item no.: 2020-204/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 4-pole
2020-204
/143-000
Item no.: 2020-205
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
Item no.: 2020-205/000-036
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-036
Item no.: 2020-205/000-037
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-037
2020-2208
02.05.2019Page /14 24
Data sheet | Item number:2020-2208
Item no.: 2020-205/000-038
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-038
Item no.: 2020-205/000-039
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-039
Item no.: 2020-205/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 5-pole
2020-205
/124-000
Item no.: 2020-205/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 5-pole
2020-205
/133-000
Item no.: 2020-205/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 5-pole
2020-205
/143-000
Item no.: 2020-206
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
Item no.: 2020-206/000-036
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-036
Item no.: 2020-206/000-037
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-037
Item no.: 2020-206/000-038
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-038
Item no.: 2020-206/000-039
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-039
Item no.: 2020-206/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 6-pole
2020-206
/124-000
Item no.: 2020-206/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 6-pole
2020-206
/133-000
Item no.: 2020-206/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 6-pole
2020-206
/143-000
Item no.: 2020-207
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
Item no.: 2020-207/000-036
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-036
2020-2208
02.05.2019Page /15 24
Data sheet | Item number:2020-2208
Item no.: 2020-207/000-037
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-037
Item no.: 2020-207/000-038
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-038
Item no.: 2020-207/000-039
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-039
Item no.: 2020-207/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 7-pole
2020-207
/124-000
Item no.: 2020-207/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 7-pole
2020-207
/134-000
Item no.: 2020-207/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 7-pole
2020-207
/144-000
Item no.: 2020-208
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
Item no.: 2020-208/000-036
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-036
Item no.: 2020-208/000-037
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-037
Item no.: 2020-208/000-038
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-038
Item no.: 2020-208/000-039
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-039
Item no.: 2020-208/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 8-pole
2020-208
/124-000
Item no.: 2020-208/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 8-pole
2020-208
/134-000
Item no.: 2020-208/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 8-pole
2020-208
/144-000
Item no.: 2020-209
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
2020-2208
02.05.2019Page /16 24
Data sheet | Item number:2020-2208
Item no.: 2020-209/000-036
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-036
Item no.: 2020-209/000-037
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-037
Item no.: 2020-209/000-038
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-038
Item no.: 2020-209/000-039
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-039
Item no.: 2020-209/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 9-pole
2020-209
/124-000
Item no.: 2020-209/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 9-pole
2020-209
/134-000
Item no.: 2020-209/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 9-pole
2020-209
/144-000
Item no.: 2020-210
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
Item no.: 2020-210/000-036
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-036
Item no.: 2020-210/000-037
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-037
Item no.: 2020-210/000-038
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-038
Item no.: 2020-210/000-039
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-039
Item no.: 2020-210/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 10-pole
2020-210
/125-000
Item no.: 2020-210/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 10-pole
2020-210
/135-000
Item no.: 2020-210/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 10-pole
2020-210
/145-000
2020-2208
02.05.2019Page /17 24
Data sheet | Item number:2020-2208
Item no.: 2020-211
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
Item no.: 2020-211/000-036
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-036
Item no.: 2020-211/000-037
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-037
Item no.: 2020-211/000-038
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-038
Item no.: 2020-211/000-039
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-039
Item no.: 2020-211/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 11-pole
2020-211
/125-000
Item no.: 2020-211/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 11-pole
2020-211
/135-000
Item no.: 2020-211/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 11-pole
2020-211
/145-000
Item no.: 2020-212
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
Item no.: 2020-212/000-036
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-036
Item no.: 2020-212/000-037
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-037
Item no.: 2020-212/000-038
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-038
Item no.: 2020-212/000-039
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-039
Item no.: 2020-212/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 12-pole
2020-212
/125-000
Item no.: 2020-212/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 12-pole
2020-212
/135-000
2020-2208
02.05.2019Page /18 24
Data sheet | Item number:2020-2208
Item no.: 2020-212/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 12-pole
2020-212
/145-000
Item no.: 2020-213
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
Item no.: 2020-213/000-036
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-036
Item no.: 2020-213/000-037
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-037
Item no.: 2020-213/000-038
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-038
Item no.: 2020-213/000-039
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-039
Item no.: 2020-213/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 13-pole
2020-213
/125-000
Item no.: 2020-213/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 13-pole
2020-213
/135-000
Item no.: 2020-213/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 13-pole
2020-213
/145-000
Item no.: 2020-214
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
Item no.: 2020-214/000-036
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-036
Item no.: 2020-214/000-037
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-037
Item no.: 2020-214/000-038
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-038
Item no.: 2020-214/000-039
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-039
Item no.: 2020-214/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 14-pole
2020-214
/125-000
2020-2208
02.05.2019Page /19 24
Data sheet | Item number:2020-2208
Item no.: 2020-214/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 14-pole
2020-214
/135-000
Item no.: 2020-214/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 14-pole
2020-214
/145-000
Item no.: 2020-215
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
Item no.: 2020-215/000-036
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-036
Item no.: 2020-215/000-037
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-037
Item no.: 2020-215/000-038
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-038
Item no.: 2020-215/000-039
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-039
Item no.: 2020-215/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 15-pole
2020-215
/125-000
Item no.: 2020-215/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 15-pole
2020-215
/135-000
Item no.: 2020-215/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 15-pole
2020-215
/145-000
check
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 859-500 Test pin; 1 mm Ø; with solder connection for test wire
859-500
tools
Item no.: 210-647 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719 Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
2020-2208
02.05.2019Page /20 24
Data sheet | Item number:2020-2208
Coding
Item no.: 2020-100
Carrier with 6 coding pins; for coding of female plugs; for carrier terminal blocks
2020-100
End plate
Item no.: 2020-2291
End and intermediate plate; 1 mm thick
2020-
2291
Item no.: 2020-2292
End and intermediate plate; 1 mm thick
2020-
2292
Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-005
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-006
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-005
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-005
2020-2208
02.05.2019Page /21 24
Data sheet | Item number:2020-2208
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-006
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2000-406
/020-000
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-005
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
2020-2208
02.05.2019Page /22 24
Data sheet | Item number:2020-2208
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-006
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A
2000-434
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A
2000-440
Item no.: 2000-492
Double-deck vertical jumper; insulated
2000-492
Item no.: 2002-492/000-012
Double-deck vertical jumper; insulated
2002-492
/000-012
Item no.: 2009-402 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-404
Item no.: 2009-406 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
2020-2208
02.05.2019Page /23 24
Data sheet | Item number:2020-2208
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243

Downloads

Documentation

Bid Text
2020-2208 docx
15.7 kB
Download
Additional Information
pdf
2.1 MB
Download

CAD/CAE - Smart Data

CAD data
3D Download 2020-2208 URL Download

Product family

X-COM S-Mini
Show all products from the family
2020-2208
Subject to changes.
02.05.2019Page /24 24
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
