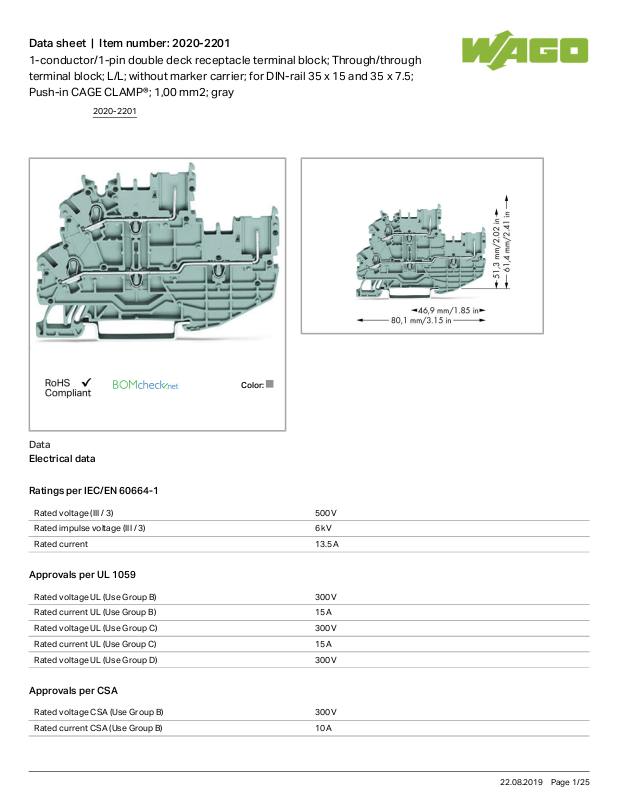

Data sheet | Item number:2020-2201
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm2; gray
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Approvals per CSA
Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
2020-2201
22.08.2019Page /1 25
Data sheet | Item number:2020-2201
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 51.3mm/ 2.02inch
Depth 80.1mm/ 3.154inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.188 MJ
Weight 8.51g
Commercial data
Product Group 18 (X-COM-System)
Country of origin CN
2020-2201
22.08.2019Page /2 25
Data sheet | Item number:2020-2201
GTIN 4050821049456
Customs Tariff No. 85366990990
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA EN 60947 NTR NL
7617
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0
BV
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-100670
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
2020-2201
22.08.2019Page /3 25
Data sheet | Item number:2020-2201
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
210-112
