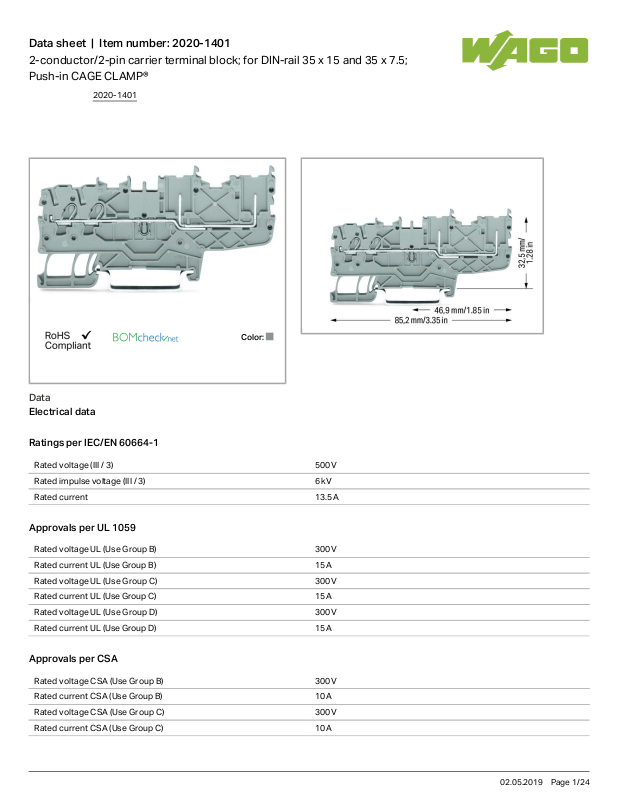

Data sheet | Item number:2020-1401
2-conductor/2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A
2020-1401
02.05.2019Page /1 24
Data sheet | Item number:2020-1401
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 85.2mm/ 3.354inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.136 MJ
Weight 6.58g

Commercial data

Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145301
Customs Tariff No. 85366990990
