Data sheet | Item number:2020-1304

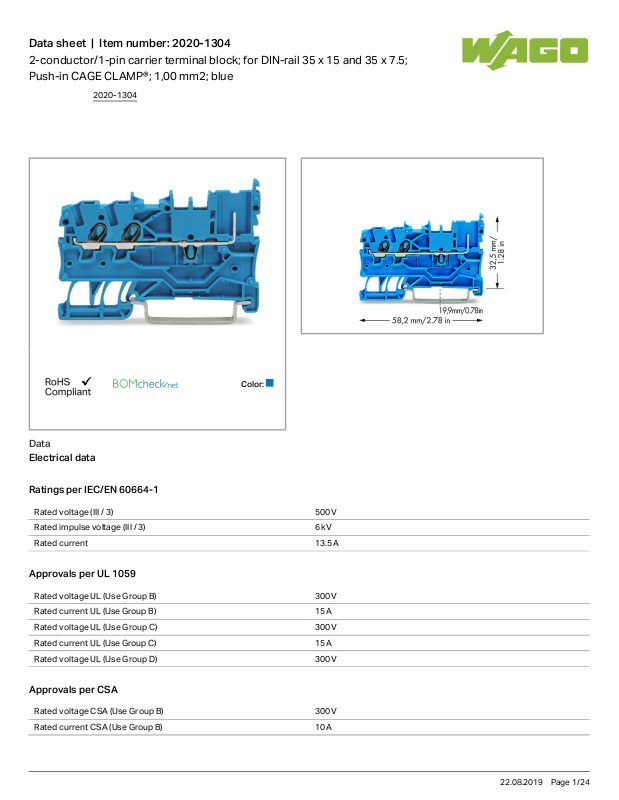

2-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm2; blue
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Approvals per CSA
Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
2020-1304
22.08.2019Page /1 24
Data sheet | Item number:2020-1304
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Number of connection points 1
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 58.2mm/ 2.291inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Weight 4.51g
Commercial data
Country of origin CN
GTIN 4055143278829
2020-1304
22.08.2019Page /2 24
Data sheet | Item number:2020-1304
Customs Tariff No. 85366990990
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA EN 60947 NTR NL
7617
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
2020-1304
22.08.2019Page /3 24
Data sheet | Item number:2020-1304
Compatible products
End plate
Item no.: 2020-1391
End and intermediate plate; gray
2020-
1391
Item no.: 2020-1392
End and intermediate plate; orange
2020-
1392
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole; 1,50 mm2; gray
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole; 1,50 mm2; gray
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole; 1,50 mm2; gray
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole; 1,50 mm2; gray
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole; 1,50 mm2; gray
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole; 1,50 mm2; gray, green-yellow
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole; 1,50 mm2; green-yellow, gray
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole; 1,50 mm2; gray, blue, green-yellow
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole; 1,50 mm2; green-yellow, blue, gray
2020-103
/000-039
