Wago 2020-1207 Data Sheet

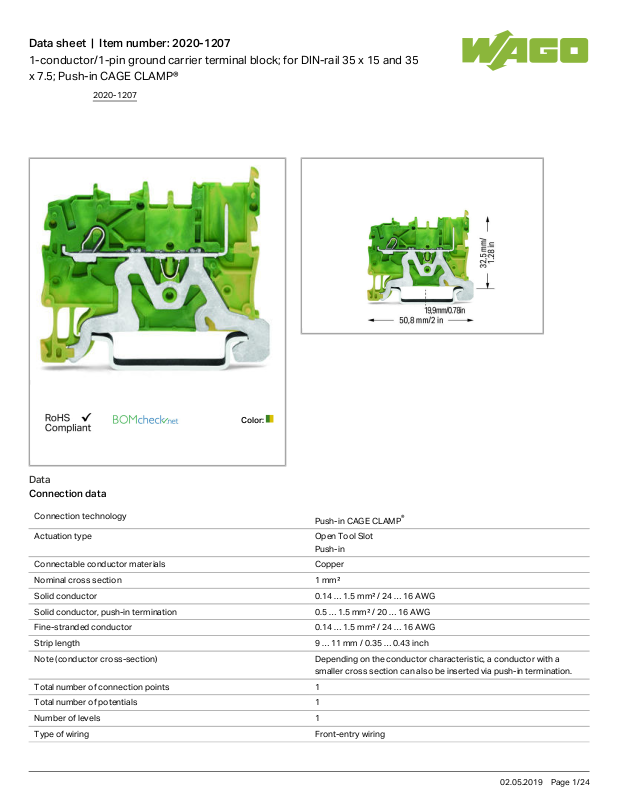

Data sheet | Item number:2020-1207
1-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
Color:

Data

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
2020-1207
02.05.2019Page /1 24
Data sheet | Item number:2020-1207
Type of wiring Front-entry wiring
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 50.8mm/ 0.2inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.083 MJ
Weight 5.66g

Commercial data

Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145400
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
2020-1207
02.05.2019Page /2 24
Data sheet | Item number:2020-1207
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
216-241
2020-1207
02.05.2019Page /3 24
Data sheet | Item number:2020-1207
crimped; acc. to DIN 46228, Part 4/09.90
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
2020-1207
02.05.2019Page /4 24
Data sheet | Item number:2020-1207
1-conductor female plug; 1.5 mm²; 4-pole
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
Item no.: 2020-105/000-037
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-037
Item no.: 2020-105/000-038
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-038
Item no.: 2020-105/000-039
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-039
Item no.: 2020-105/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 5-pole
2020-105
/124-000
Item no.: 2020-105/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/133-000
2020-1207
02.05.2019Page /5 24
Data sheet | Item number:2020-1207
Item no.: 2020-105/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/143-000
Item no.: 2020-106
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
Item no.: 2020-106/000-036
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-036
Item no.: 2020-106/000-037
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-037
Item no.: 2020-106/000-038
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-038
Item no.: 2020-106/000-039
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-039
Item no.: 2020-106/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 6-pole
2020-106
/124-000
Item no.: 2020-106/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/133-000
Item no.: 2020-106/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/143-000
Item no.: 2020-107
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
Item no.: 2020-107/000-036
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-036
Item no.: 2020-107/000-037
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-037
Item no.: 2020-107/000-038
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-038
Item no.: 2020-107/000-039
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-039
Item no.: 2020-107/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 7-pole
2020-107
/124-000
2020-1207
02.05.2019Page /6 24
Data sheet | Item number:2020-1207
Item no.: 2020-107/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/134-000
Item no.: 2020-107/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/144-000
Item no.: 2020-108
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
Item no.: 2020-108/000-036
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-036
Item no.: 2020-108/000-037
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-037
Item no.: 2020-108/000-038
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-038
Item no.: 2020-108/000-039
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-039
Item no.: 2020-108/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 8-pole
2020-108
/124-000
Item no.: 2020-108/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/134-000
Item no.: 2020-108/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/144-000
Item no.: 2020-109
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
Item no.: 2020-109/000-036
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-036
Item no.: 2020-109/000-037
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-037
Item no.: 2020-109/000-038
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-038
Item no.: 2020-109/000-039
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-039
2020-1207
02.05.2019Page /7 24
Data sheet | Item number:2020-1207
Item no.: 2020-109/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 9-pole
2020-109
/124-000
Item no.: 2020-109/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/134-000
Item no.: 2020-109/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/144-000
Item no.: 2020-110
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
Item no.: 2020-110/000-036
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-036
Item no.: 2020-110/000-037
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-037
Item no.: 2020-110/000-038
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-038
Item no.: 2020-110/000-039
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-039
Item no.: 2020-110/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 10-pole
2020-110
/125-000
Item no.: 2020-110/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/135-000
Item no.: 2020-110/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/145-000
Item no.: 2020-111
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
Item no.: 2020-111/000-036
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-036
Item no.: 2020-111/000-037
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-037
Item no.: 2020-111/000-038
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-038
2020-1207
02.05.2019Page /8 24
