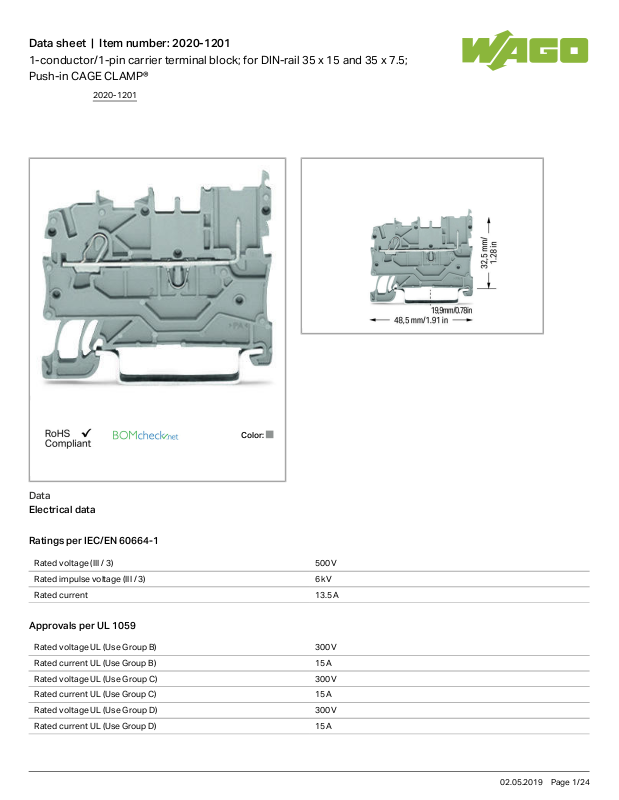

Wago 2020-1201 Data Sheet

Data sheet | Item number:2020-1201
1-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A
2020-1201
02.05.2019Page /1 24
Data sheet | Item number:2020-1201
Approvals per CSA
Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 1
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 48.5mm/ 1.909inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.082 MJ
Weight 3.62g
2020-1201
02.05.2019Page /2 24
Data sheet | Item number:2020-1201
Commercial data
Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821145387
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
2020-1201
02.05.2019Page /3 24
Data sheet | Item number:2020-1201
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

General accessories
Item no.: 2020-161
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-161
Item no.: 2020-164
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-164
Item no.: 2020-167
Start module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-167
Item no.: 2020-181
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-181
Item no.: 2020-184
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-184
Item no.: 2020-187
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-187
Item no.: 2020-261
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-261
Item no.: 2020-264
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-264
Item no.: 2020-267
Start module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-267
2020-1201
02.05.2019Page /4 24
Data sheet | Item number:2020-1201
Item no.: 2020-281
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-281
Item no.: 2020-284
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-284
Item no.: 2020-287
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-287
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
2020-1201
02.05.2019Page /5 24
Data sheet | Item number:2020-1201
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
2020-1201
02.05.2019Page /6 24
Data sheet | Item number:2020-1201
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
Item no.: 2020-105/000-037
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-037
Item no.: 2020-105/000-038
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-038
Item no.: 2020-105/000-039
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-039
Item no.: 2020-105/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 5-pole
2020-105
/124-000
Item no.: 2020-105/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/133-000
Item no.: 2020-105/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/143-000
Item no.: 2020-106
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
Item no.: 2020-106/000-036
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-036
Item no.: 2020-106/000-037
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-037
Item no.: 2020-106/000-038
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-038
Item no.: 2020-106/000-039
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-039
Item no.: 2020-106/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 6-pole
2020-106
/124-000
Item no.: 2020-106/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/133-000
Item no.: 2020-106/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/143-000
2020-1201
02.05.2019Page /7 24
Data sheet | Item number:2020-1201
Item no.: 2020-107
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
Item no.: 2020-107/000-036
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-036
Item no.: 2020-107/000-037
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-037
Item no.: 2020-107/000-038
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-038
Item no.: 2020-107/000-039
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-039
Item no.: 2020-107/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 7-pole
2020-107
/124-000
Item no.: 2020-107/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/134-000
Item no.: 2020-107/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/144-000
Item no.: 2020-108
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
Item no.: 2020-108/000-036
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-036
Item no.: 2020-108/000-037
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-037
Item no.: 2020-108/000-038
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-038
Item no.: 2020-108/000-039
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-039
Item no.: 2020-108/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 8-pole
2020-108
/124-000
Item no.: 2020-108/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/134-000
2020-1201
02.05.2019Page /8 24
