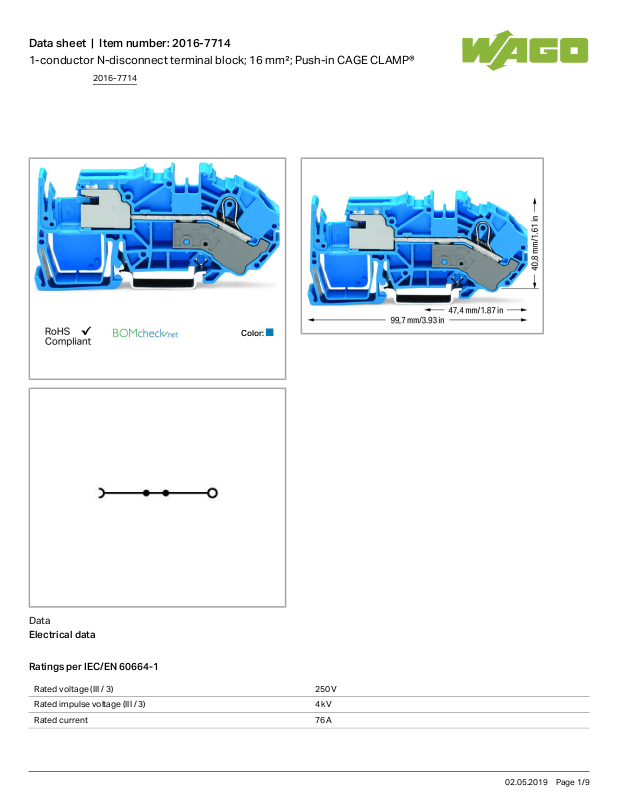

Wago 2016-7714 Data Sheet

Data sheet | Item number:2016-7714

1-conductor N-disconnect terminal block; 16 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 76 A

2016-7714

02.05.2019Page /1 9

Data sheet | Item number:2016-7714

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG

Strip length 18 … 20mm/ 0.71 … 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 40.8mm/ 1.606inch

Depth 86mm/ 3.386inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.591 MJ

Weight 34.106g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin PL

GTIN 4045454685300

Customs Tariff No. 85365080990

Approvals / Certificates

2016-7714

02.05.2019Page /2 9

Data sheet | Item number:2016-7714

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

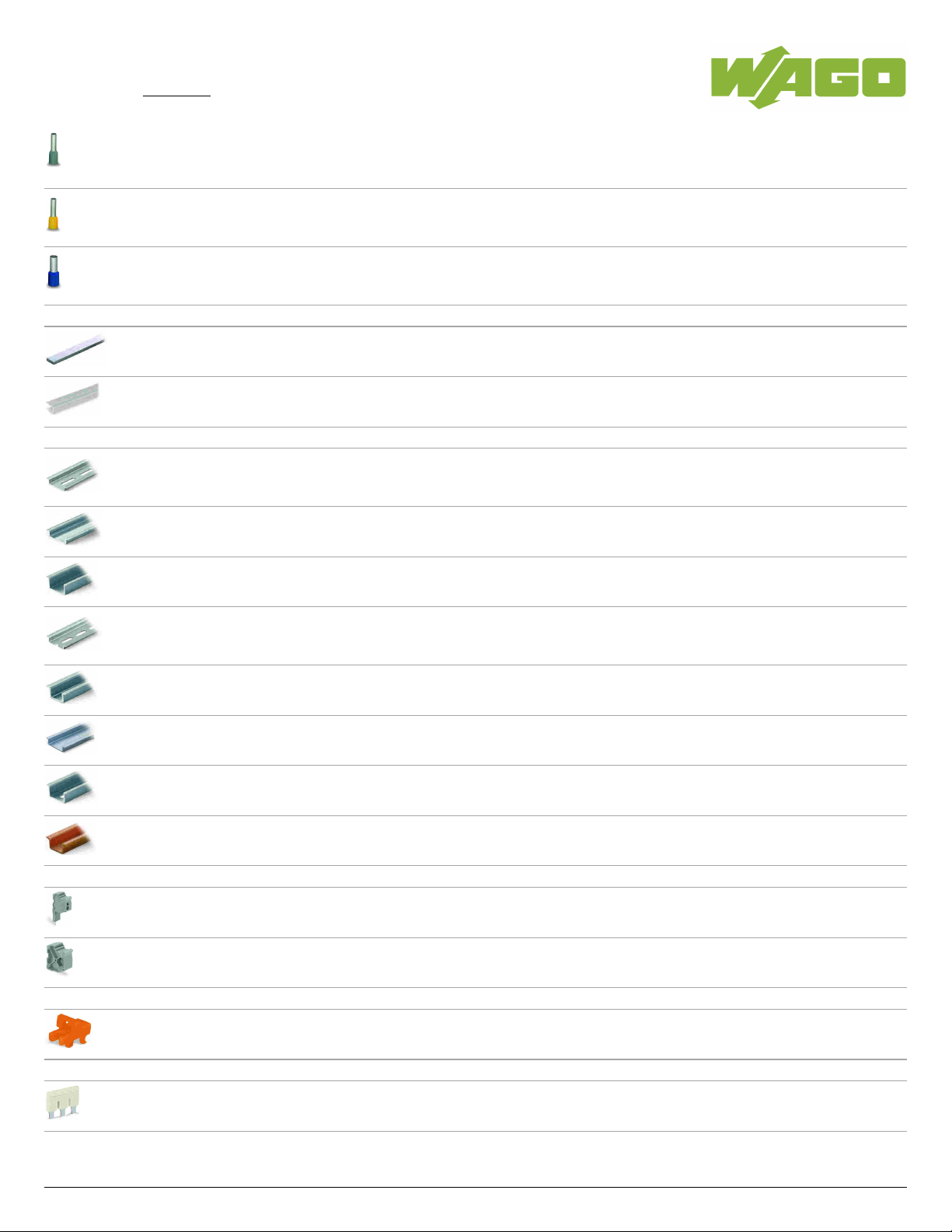

Compatible products

End plate

Item no.: 2016-7792

End and intermediate plate; 1 mm thick

2016-7792

ferrule

Item no.: 216-210
Ferrule; Sleeve for 16 mm² / AWG 6; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-210

Item no.: 216-284
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-284

Item no.: 216-286
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-286
