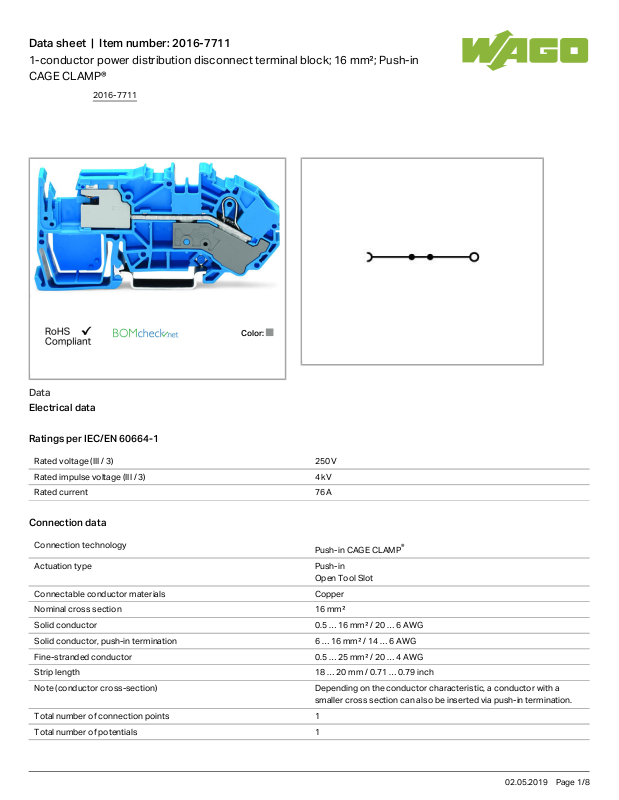

Wago 2016-7711 Data Sheet

Data sheet | Item number:2016-7711

1-conductor power distribution disconnect terminal block; 16 mm²; Push-in
CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 76 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG

Strip length 18 … 20mm/ 0.71 … 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 1

Total number of potentials 1

2016-7711

02.05.2019Page /1 8

Data sheet | Item number:2016-7711

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 40.8mm/ 1.606inch

Depth 86mm/ 3.386inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.592 MJ

Weight 34.1g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin PL

GTIN 4045454685294

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

- 14-

2016-7711

02.05.2019Page /2 8

Data sheet | Item number:2016-7711

American Bureau of Shipping HG1293677-

PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Compatible products

General accessories

Item no.: 2006-7300

Lock-out; prevents reclosing of slide link; Snap-in type; for 2006 and 2016 Series

2006-7300

Jumper

Item no.: 2016-402

Push-in type jumper bar; insulated; 2-way; Nominal current 76 A

2016-402

Item no.: 2016-403

Push-in type jumper bar; insulated; 3-way; Nominal current 76 A

2016-403

Item no.: 2016-404

Push-in type jumper bar; insulated; 4-way; Nominal current 76 A

2016-404

Item no.: 2016-405

Push-in type jumper bar; insulated; 5-way; Nominal current 76 A

2016-405

Item no.: 2016-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2016-405

/011-000

Item no.: 2016-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 76 A

2016-433

Item no.: 2016-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 76 A

2016-434

Item no.: 2016-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 76 A

2016-435

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

tools
