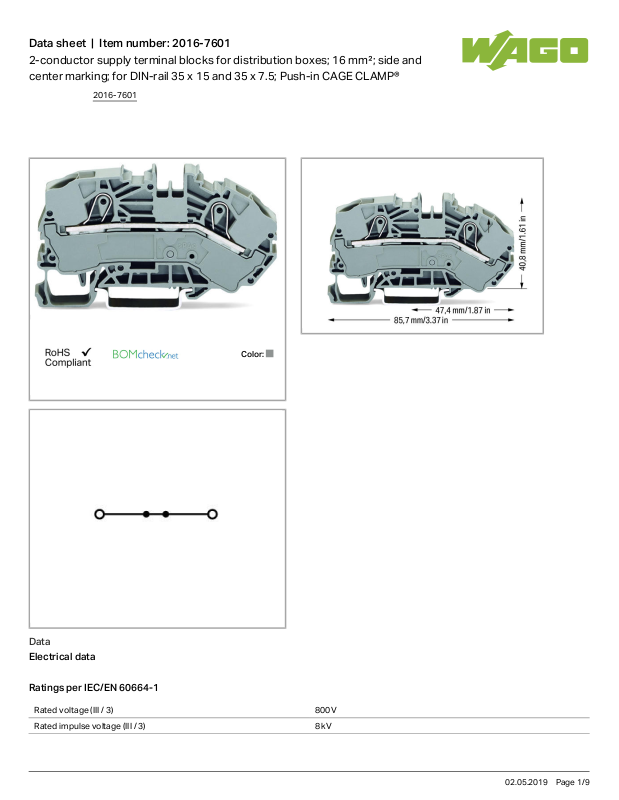

Wago 2016-7601 Data Sheet

Data sheet | Item number:2016-7601

2-conductor supply terminal blocks for distribution boxes; 16 mm²; side and
center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

2016-7601

02.05.2019Page /1 9

Data sheet | Item number:2016-7601

Rated current 76 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG

Strip length 18 … 20mm/ 0.71 … 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 40.8mm/ 1.606inch

Depth 85.7mm/ 3.374inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.532 MJ

Weight 29.43g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin PL

GTIN 4045454725082

Customs Tariff No. 85369010000

2016-7601

02.05.2019Page /2 9

Data sheet | Item number:2016-7601

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Compatible products

Protective Warning Marker

Item no.: 2016-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2016-115

General accessories

Item no.: 2016-100

Finger guard; touchproof cover protects unused conductor entries

2016-100

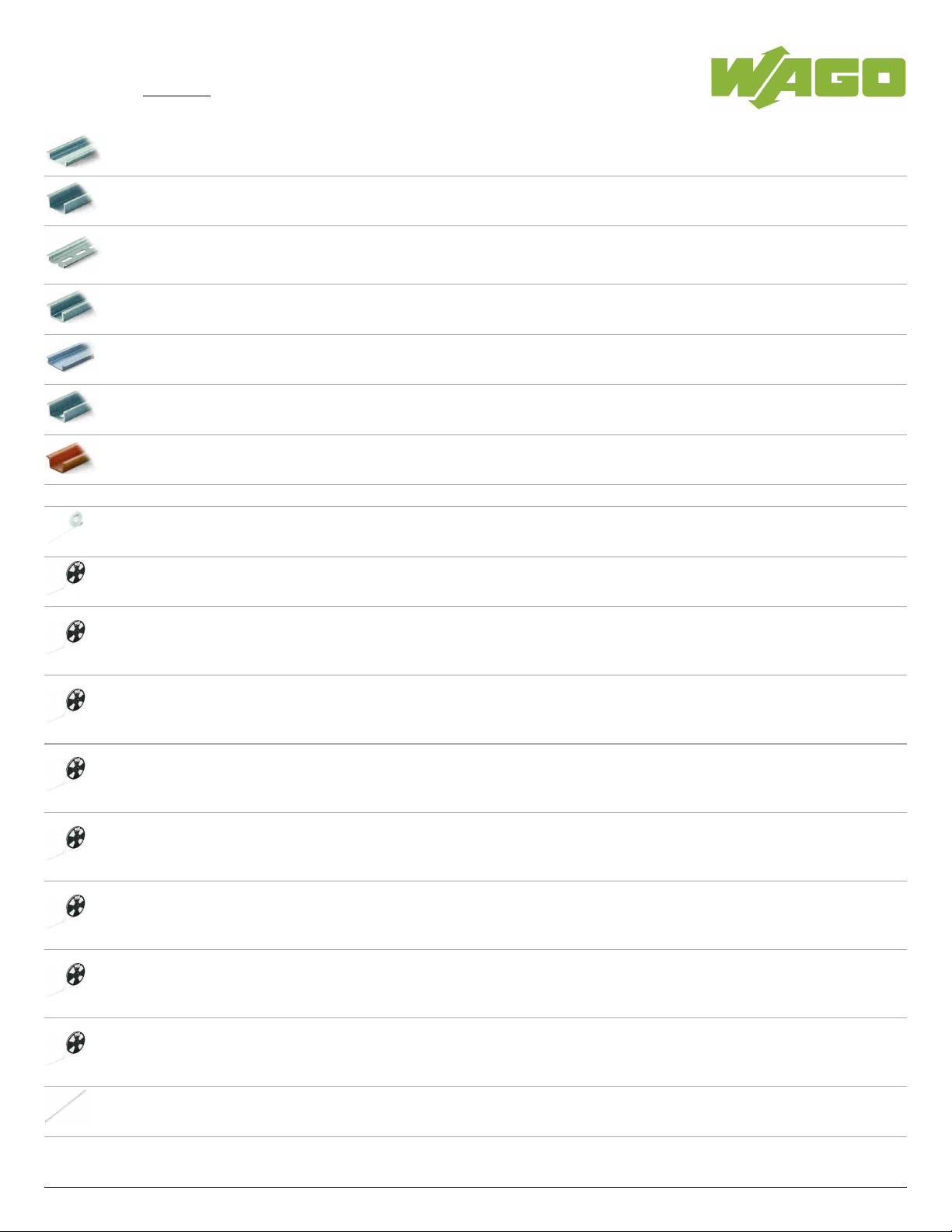

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112
