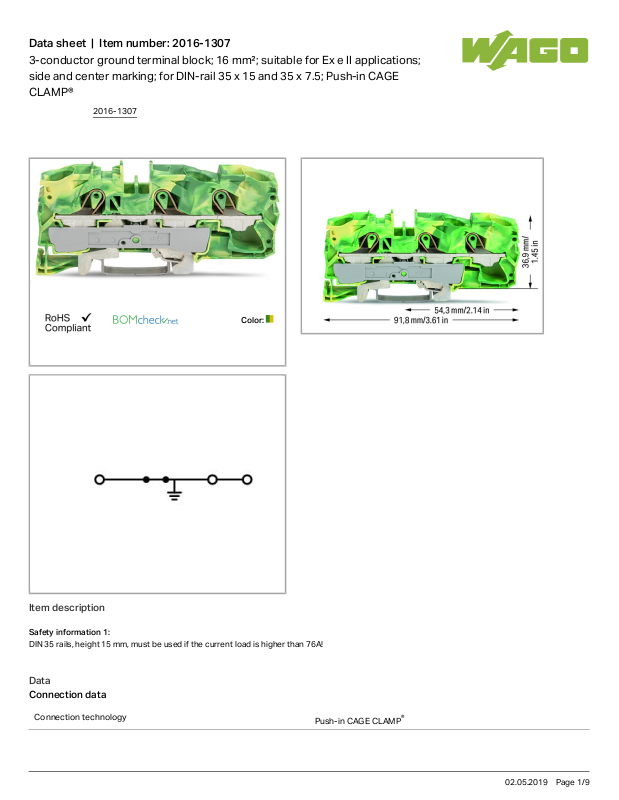

Wago 2016-1307 Data Sheet

Data sheet | Item number:2016-1307

3-conductor ground terminal block; 16 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Item description

Safety information 1:

DIN 35 rails, height 15 mm, must be used if the current load is higher than 76A!

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

2016-1307

02.05.2019Page /1 9

Data sheet | Item number:2016-1307

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG

Strip length 18 … 20mm/ 0.71 … 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 91.8mm/ 3.622inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.454 MJ

Weight 46.231g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4017332077200

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

2016-1307

02.05.2019Page /2 9

Data sheet | Item number:2016-1307

Logo Approval Additional Approval Text name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.9

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

05.0015 U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

CSA

DEKRA Certification B.V.

C22.2 No. 158 1579112

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

2016-1307

02.05.2019Page /3 9
