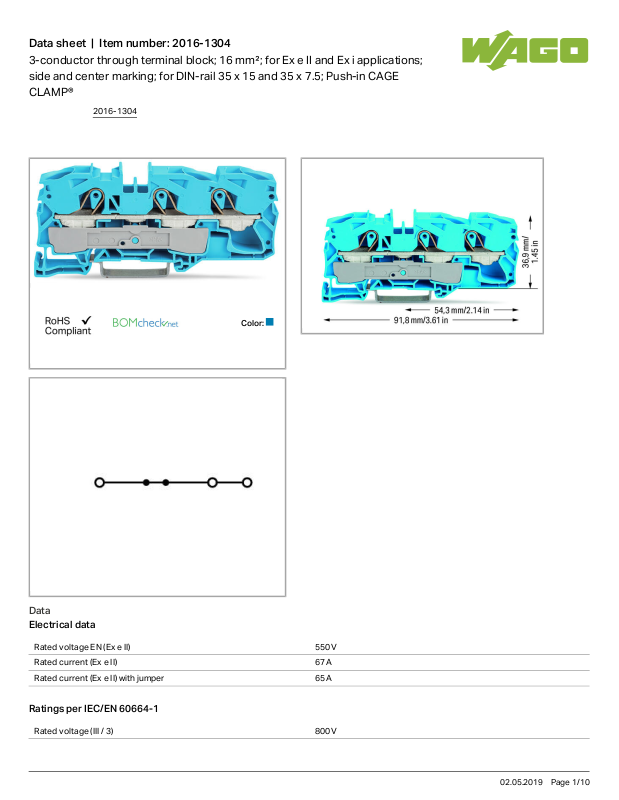

Wago 2016-1304 Data Sheet

Data sheet | Item number:2016-1304

3-conductor through terminal block; 16 mm²; for Ex e II and Ex i applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 67 A

Rated current (Ex e II) with jumper 65 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

2016-1304

02.05.2019Page /1 10

Data sheet | Item number:2016-1304

Rated impulse voltage (III / 3) 8 kV

Rated current 76 A

Rated current (2) 90 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 85 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 85 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 80 A

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 80 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 … 16mm²/ 20 … 6AWG

Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG

Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG

Strip length 18 … 20mm/ 0.71 … 0.79inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 91.8mm/ 3.622inch

Mechanical data

Design horizontal

2016-1304

02.05.2019Page /2 10

Data sheet | Item number:2016-1304

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.454 MJ

Weight 30.192g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4017332076739

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.9

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

05.0015 U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7294

CCA

DEKRA Certification B.V.

EN 60947 2172580.01

2016-1304

02.05.2019Page /3 10
